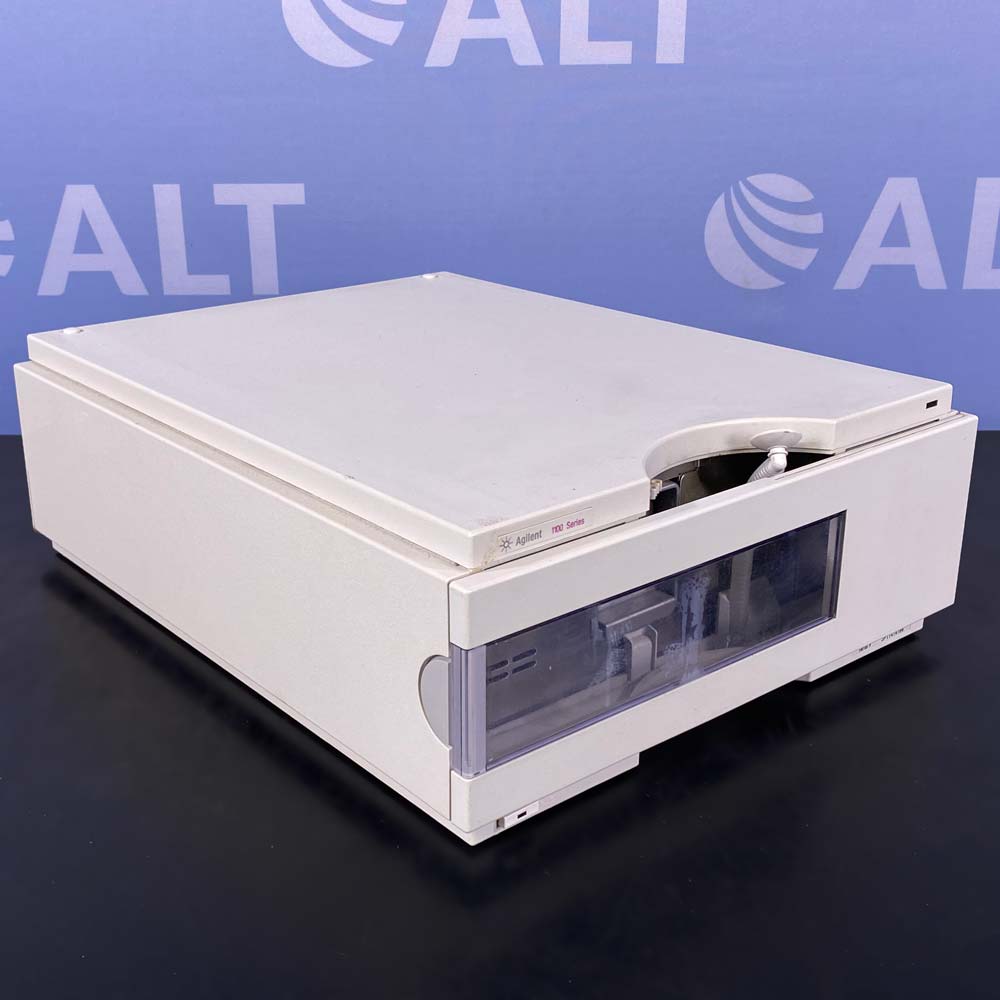

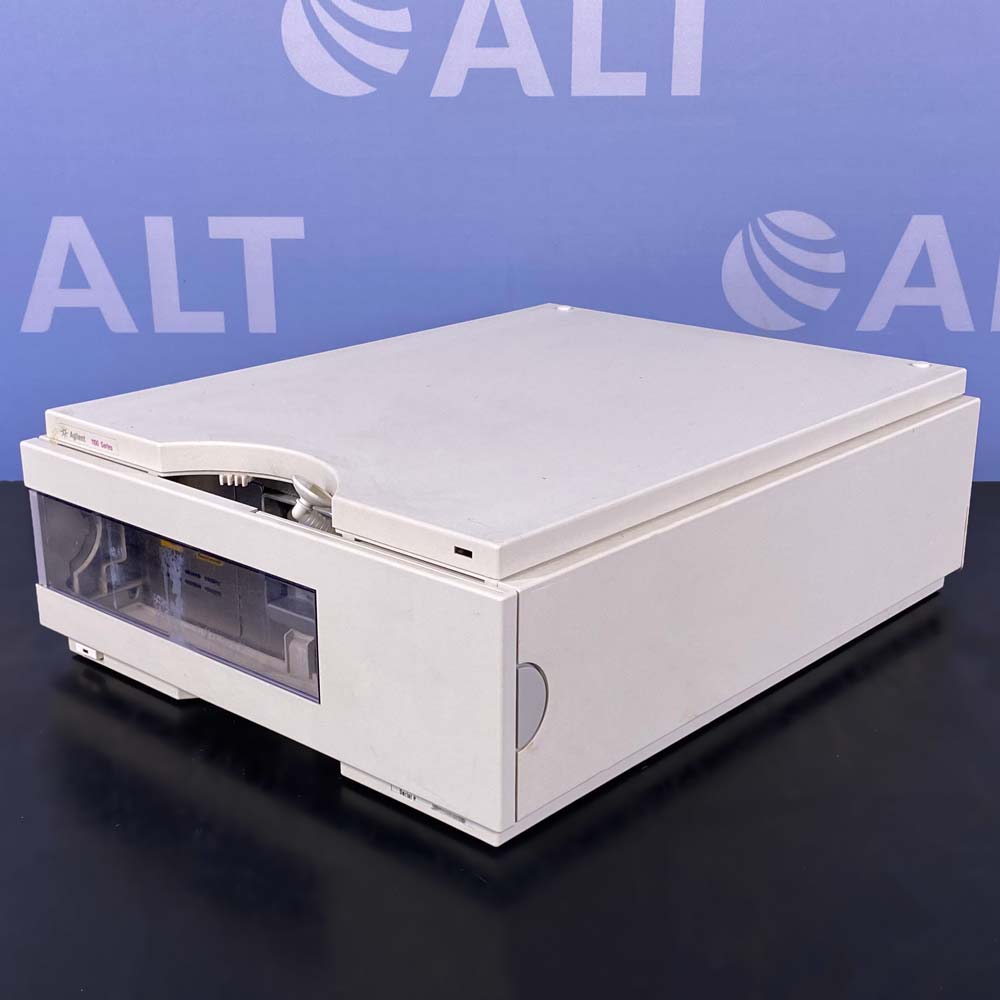

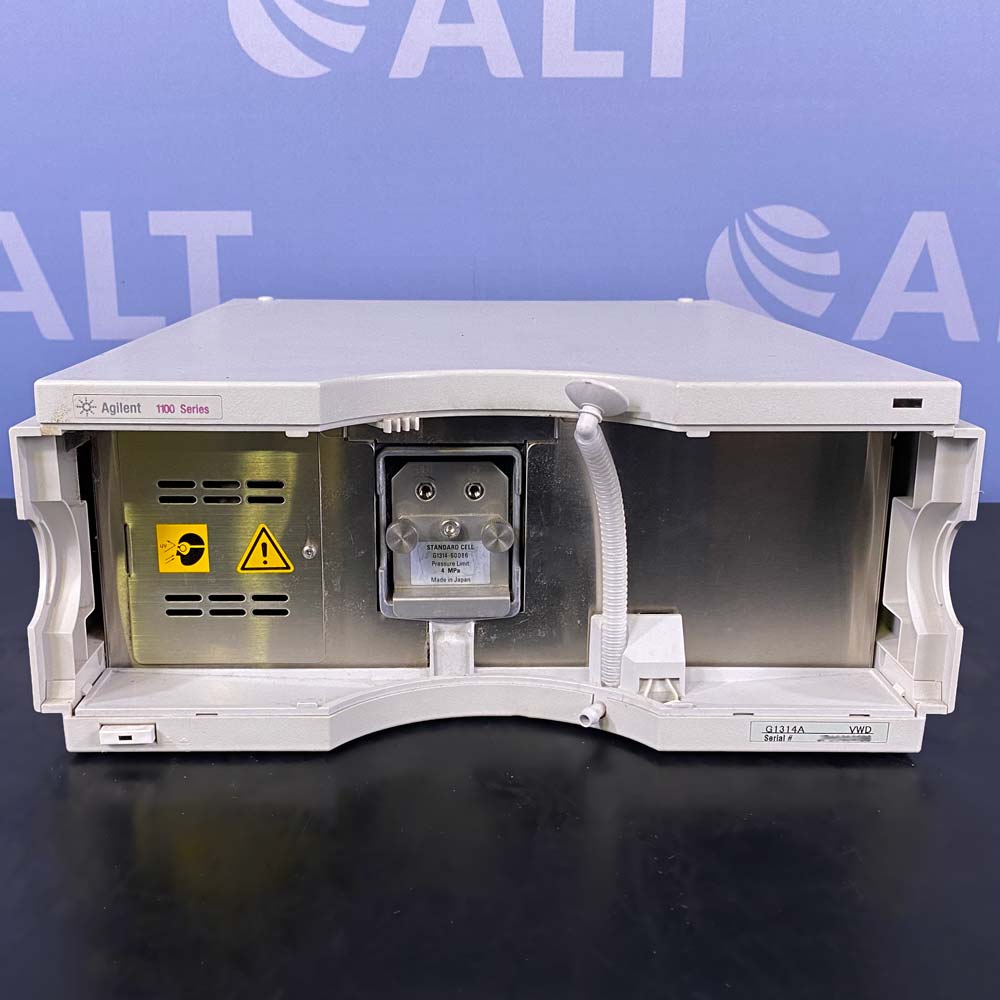

Agilent 1100 Series G1314A Variable Wavelength Detector (VWD)

The HP Agilent 1100 Series G1314A Variable Wavelength Detector (VWD) gives high sensitivity while improving productivity. This tool has a wide linear range for reliable simultaneous quantitation of main, side  products and impurities. Programmable wavelength switching for sensitivity and optimized selectivity to each analyte’s elution. Minimum baseline noise with the highest baseline stability for lowest detection limits.

Specifications:

• Wavelength Range: 190-600 nm
• Wavelength Accuracy: +/- 1 nm
• Band width: 6.5 nm
• Double beam photometer with Deuterium lamp
• Linearity: >2 AU (5%) upper limit
• Drift: 3×10-4 AU/hr at 254 nm
• Analog output connection
