Category: HPLC Components - Agilent | Subcategory: Column Heaters

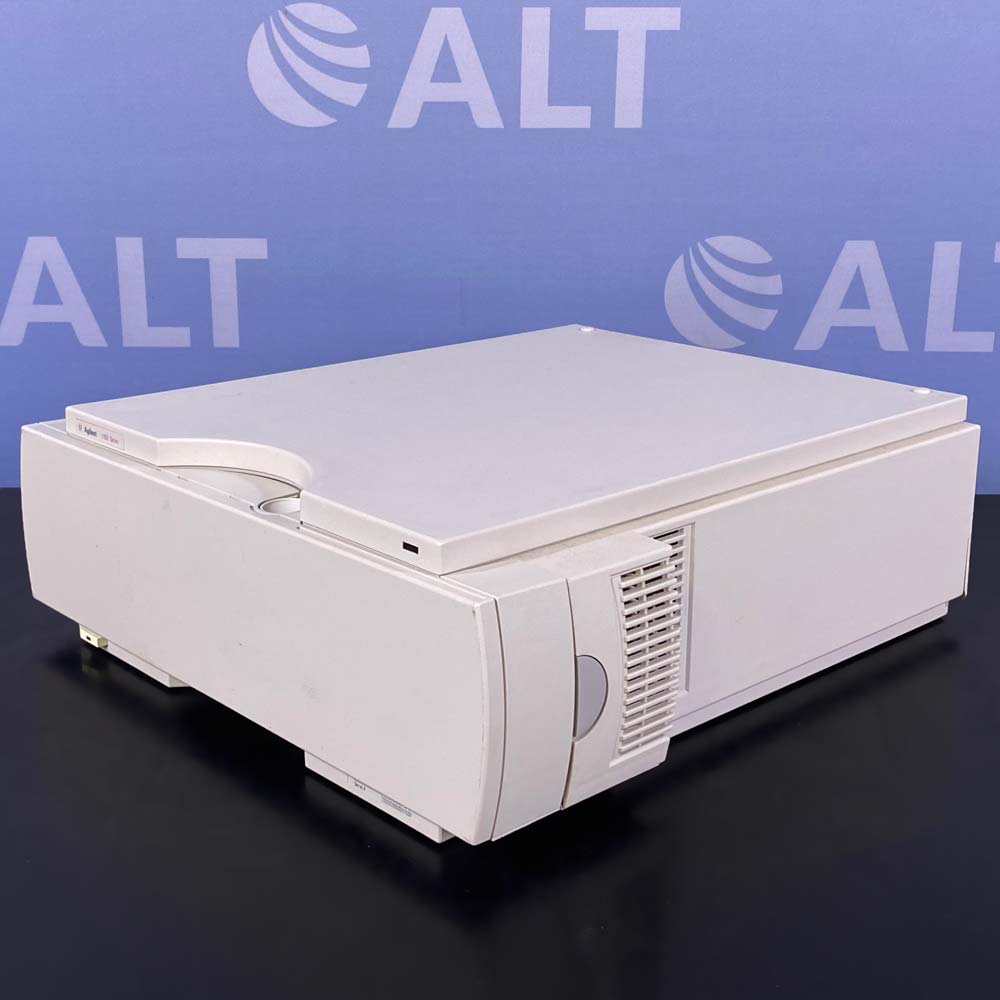

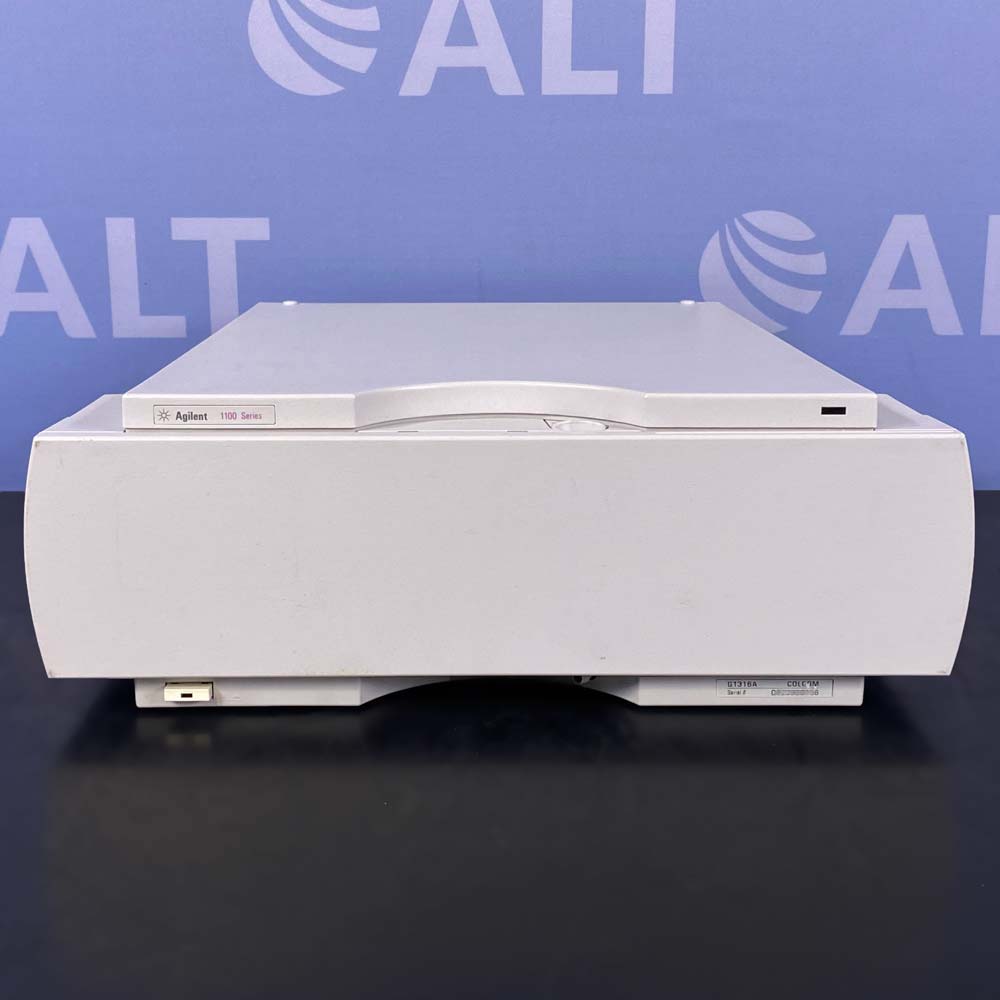

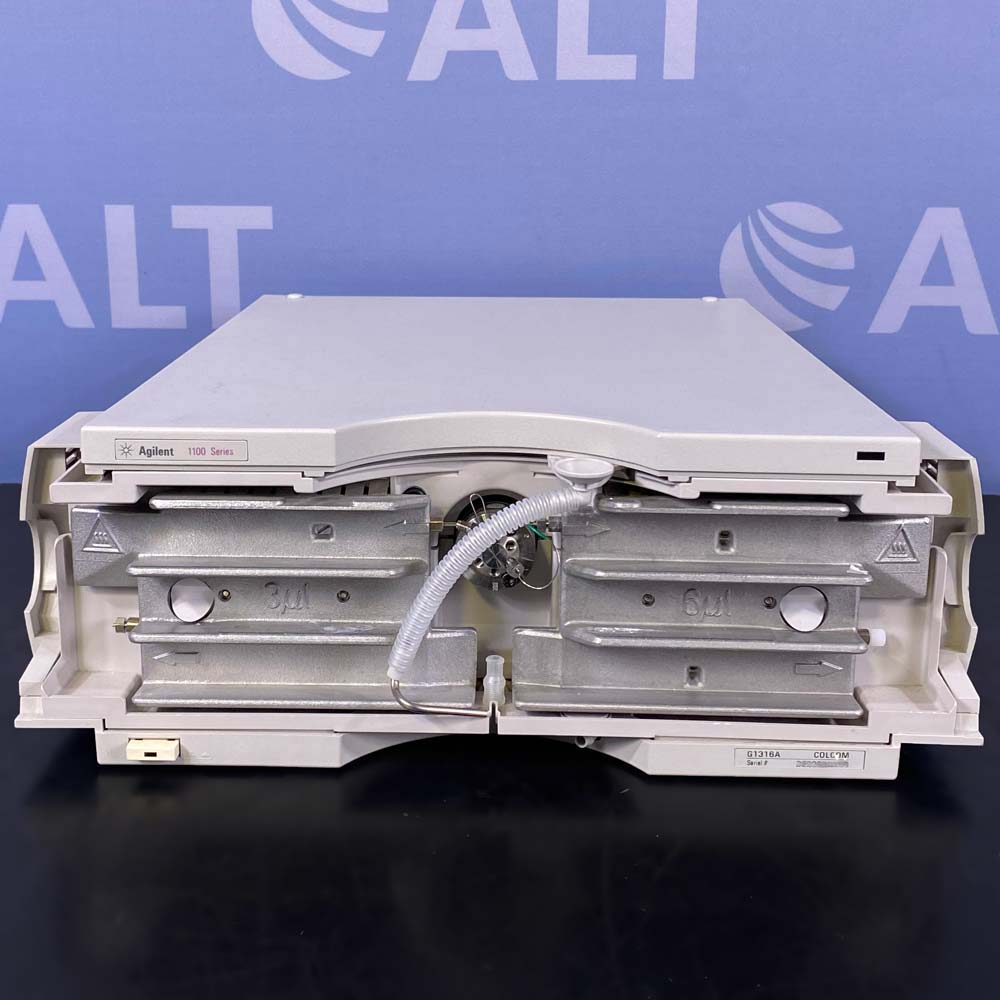

Agilent 1100 Series G1316A Thermostatted Column Compartment

Agilent 1100 Series G1316A Thermostatted Column Compartment Image

ITEM: 18819 In Stock

  • Free 90 Day Warranty
  • One Year Upgrade Available
  • Tested & Serviced Prior to Shipping

Or call (860) 691-2213

Agilent 1100 Series G1316A Thermostatted Column Compartment ImageAgilent 1100 Series G1316A Thermostatted Column Compartment ImageAgilent 1100 Series G1316A Thermostatted Column Compartment ImageAgilent 1100 Series G1316A Thermostatted Column Compartment Image

The Agilent Technologies 1100 Series G1316A Thermostatted Column Compartment provides cooling and heating speeds in order to meet extreme requirements for retention time reproducibility and stability. It is a stackable temperature controlled column compartment for use in liquid chromatography.



Specifications:
Weight22.5 lb (10.2 kg)
Dimensions16.1" W x 17" D x 5.5" H (41 x 43.5 x 14 cm)
Power100-120/220-240 VAC, 50/60 HZ, 320 VA, 150 W, 512 BTU Max.
Ambient Temperature, Operating0 to 55°C (32 to 131°F)
Ambient Temperature, Non-operating-40 to 70°C (-4 to 158°F)
Humidity<95%, at 25 to 40°C (77 to 104°F), Non-condensing
Operating AltitudeUp to 6500 ft (2000 m)
Non-operating AltitudeUp to 14950 ft (4600 m)
Safety standardsIEC, CSA, UL, EN Installation Category II, Pollution Degree 2
