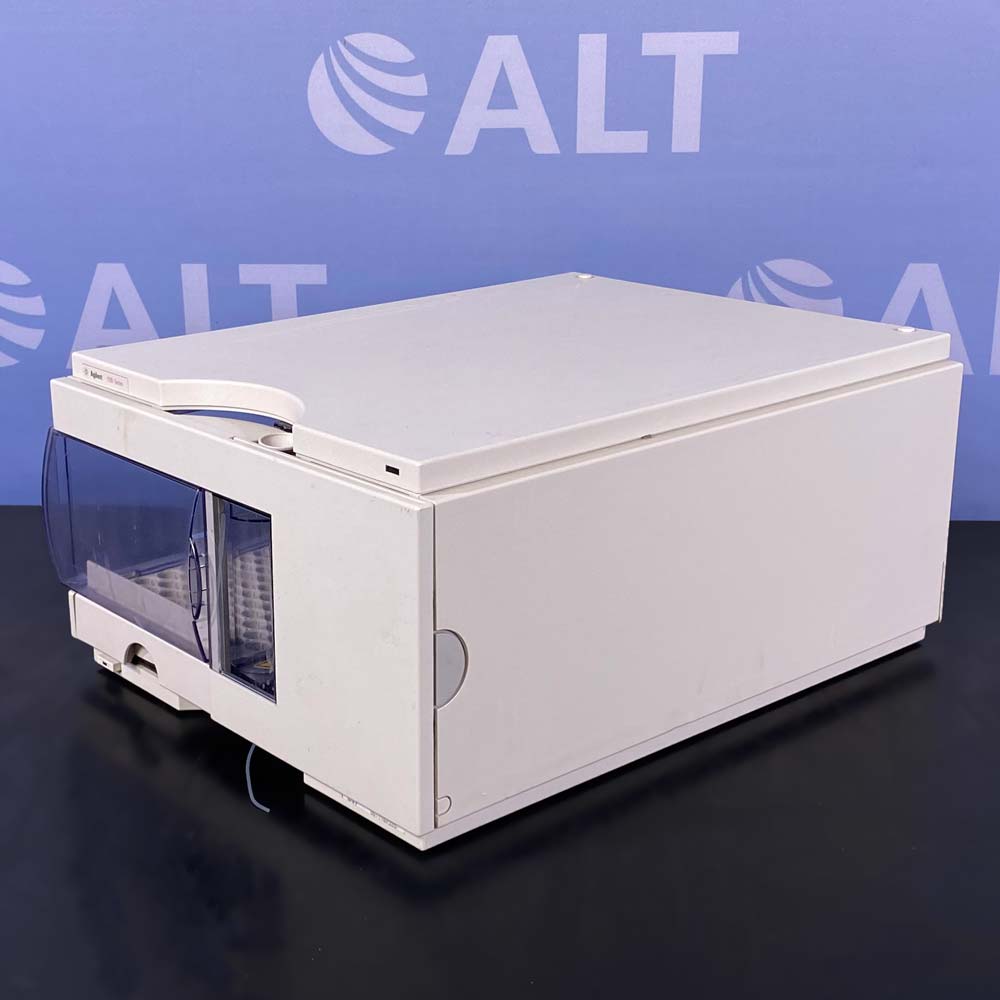

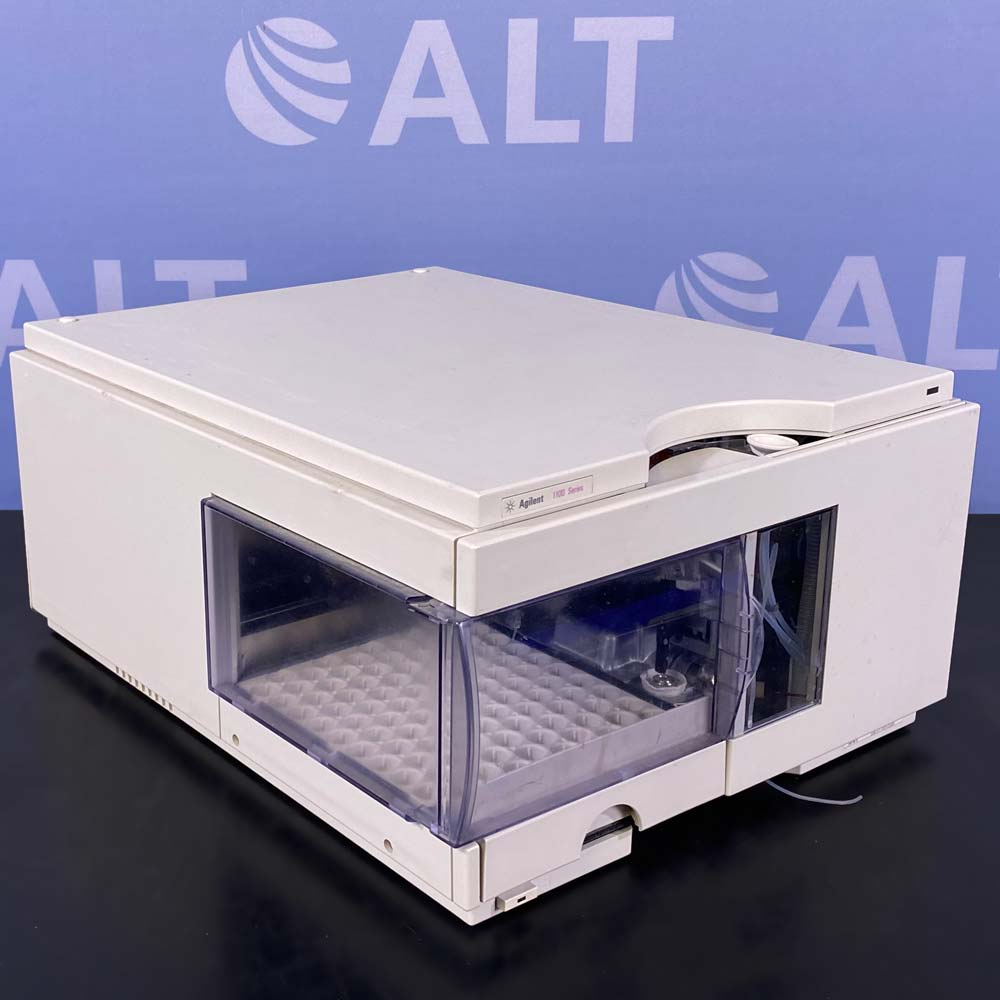

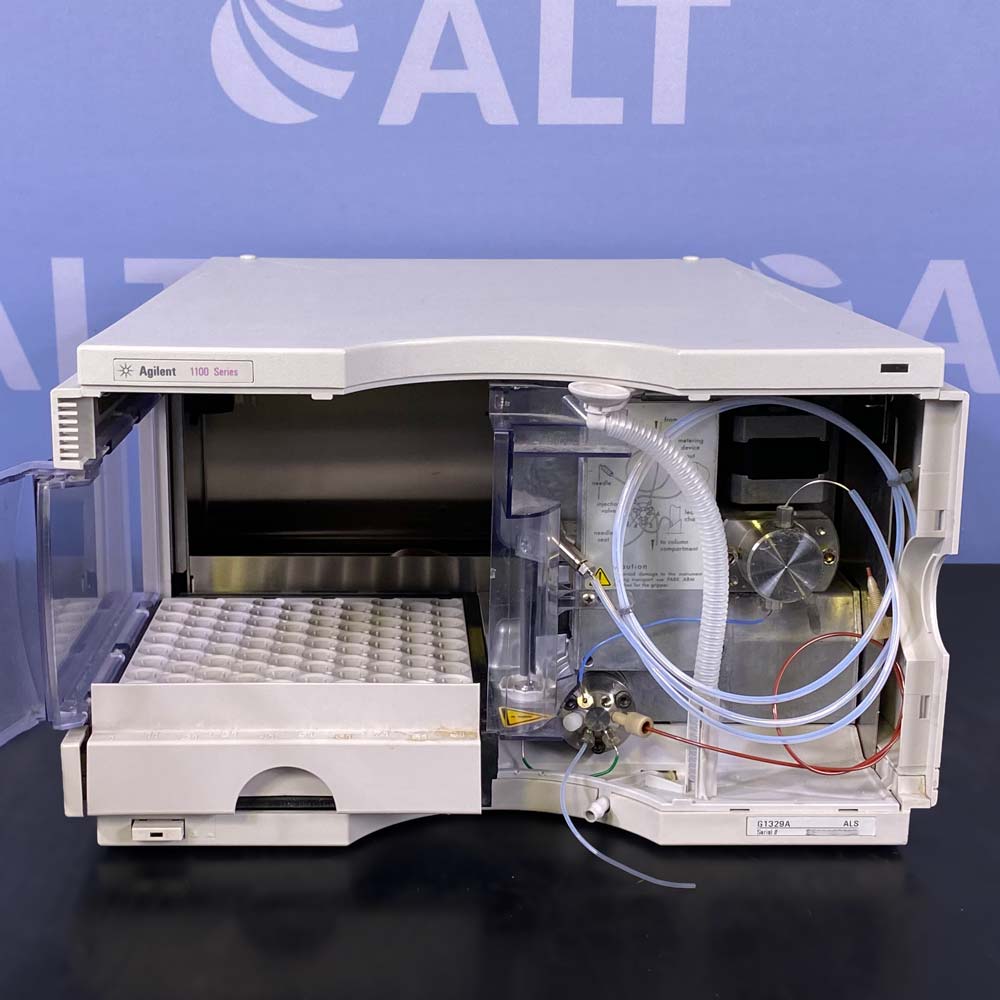

The Agilent 1100 Series G1329A Autosampler is a variable volume autosampler with a sample capacity of 100 samples. The G1329A's variable volume injections range from 1 to 100 µl and are programmable and temperature controlled. The temperature ranges from 4° to 40°C with a temperature accuracy of -1° to +5°C.



Specifications:
Sample Capacity	100 x 2-ml vials in 1 tray 40 x 2-ml vials in half tray 15 x 6-ml vials in half tray (Agilent vials only)
Injection Cycle time	Typically 50 s depending on draw speed and injection volume
Volume Injections	1 to 100 uL
Temperature Range	4°C to 40°C
Temperature Accuracy	-1°C to +5°C
Replicate Injections	1 - 99 from one vial
Precision	Typically <0.5% RSD of peak areas from 5 – 100 µl Typically <1% RSD of peak areas from 1 – 5 µl
Power Consumption (apparent power)	300 VA (Maximum)
Power Consumption (active power)	200 W (Maximum)
Power	100–120/220–240 VAC, 50/60Hz
Ambient Operating Temperature	4 - 55°C (41 - 131°F)
Ambient Non-operating Temperature	-40 - 70°C (-4 - 158°F)
Humidity	<95%, at 25–40°C (77–104°F) (Non-condensing)
Weight	31.3 lbs. (14.2 kg)
Dimensions	13.5" W x 17" D x 8" H (34.5 × 43.5 x 20 cm)
