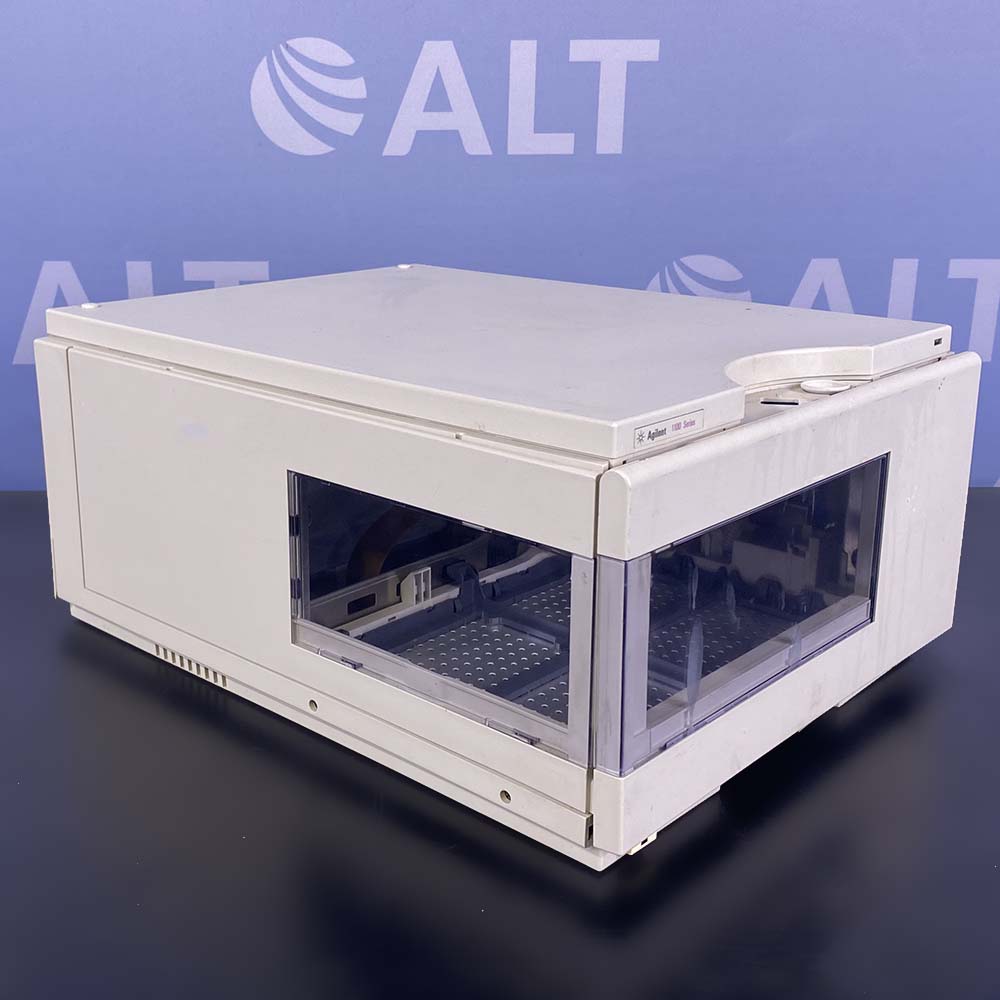

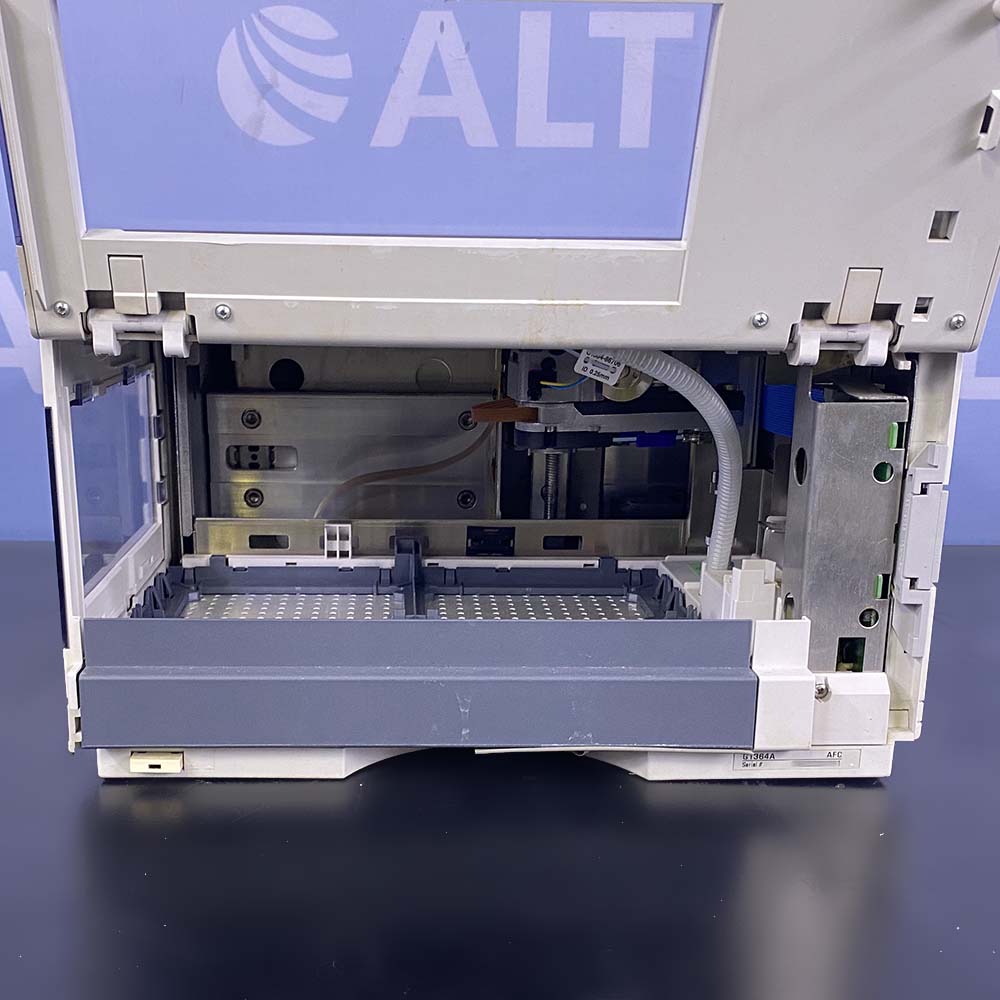

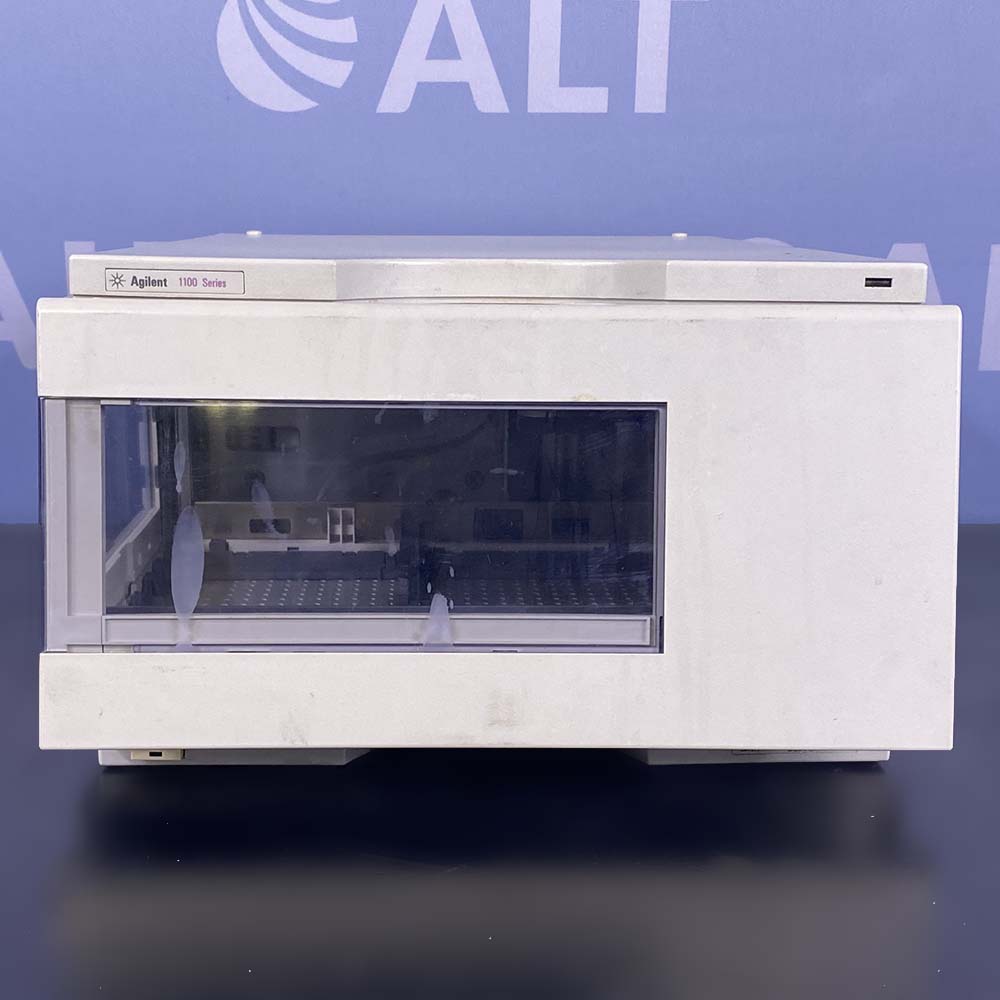

Agilent 1100 Series G1364A AFC Automatic Fraction Collector

The Agilent 1100 Series G1364A AFC Automatic Fraction Collector has three operating modes that consist of:Discrete Fractions, which is the default mode for all vessels, where the flow is diverted to waste, while moving from one vessel position to the next vessel position; Continuous Low is available only when using the deep well plates; and Needle Into Location where the needle pushes into the vessel as deep as specified, for the use with capped vials and test tubes and well plates with closing mats.

Features:
– Max. tube/plate height: 48 mm.
– Max. tube volume: ca. 20 ml or unlimited, if funnels are used with external containers.
– Max. flow rate: 10 ml/min (depending on viscosity and generated back pressure, max 6 bar at the diverter valve).
– Safety features: Leak detection and safe leak handling, error detection and display, exhaust fan for fume extraction of hazardous vapors.
