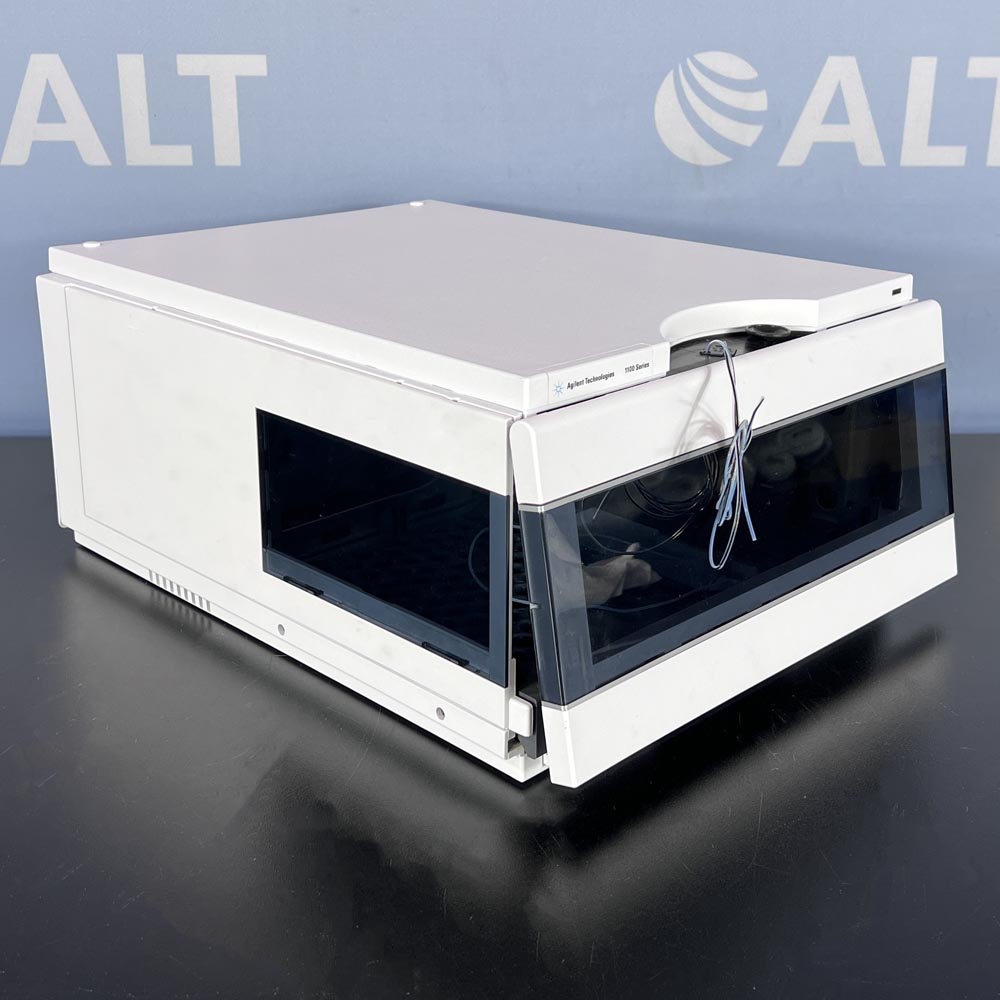

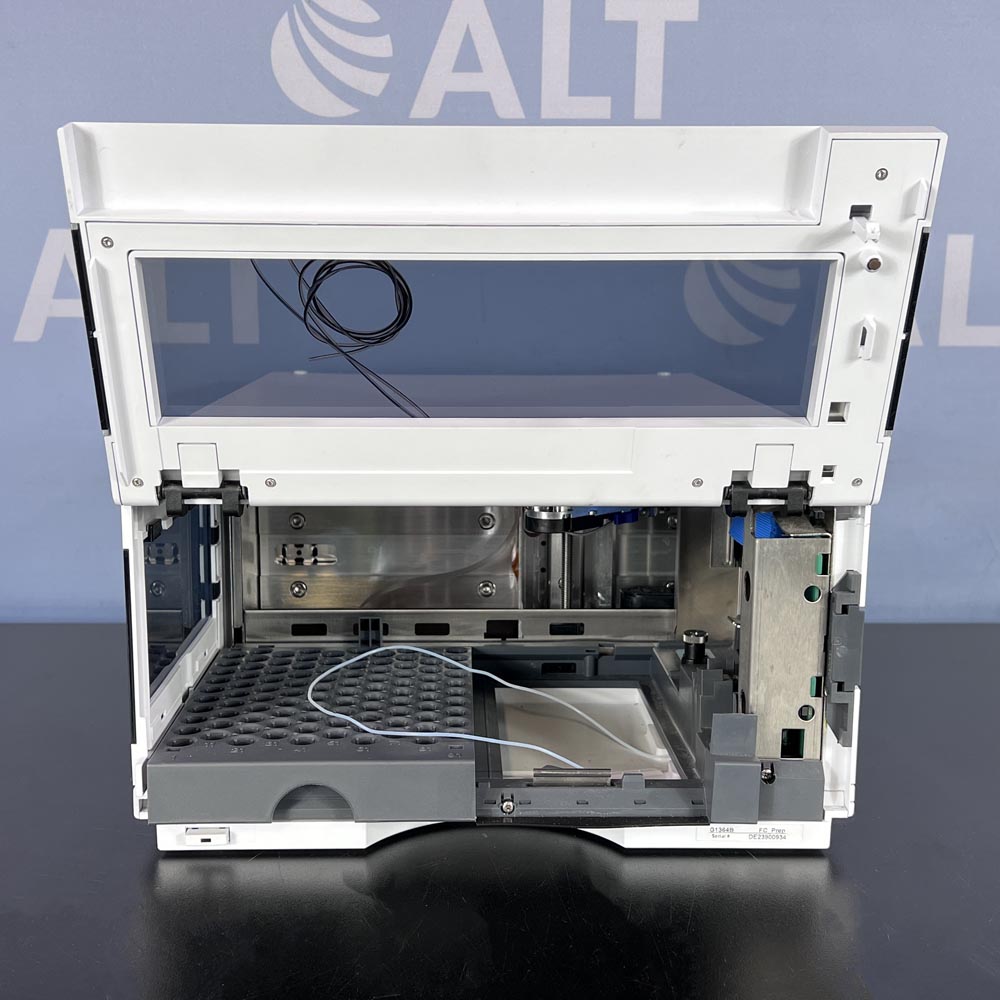

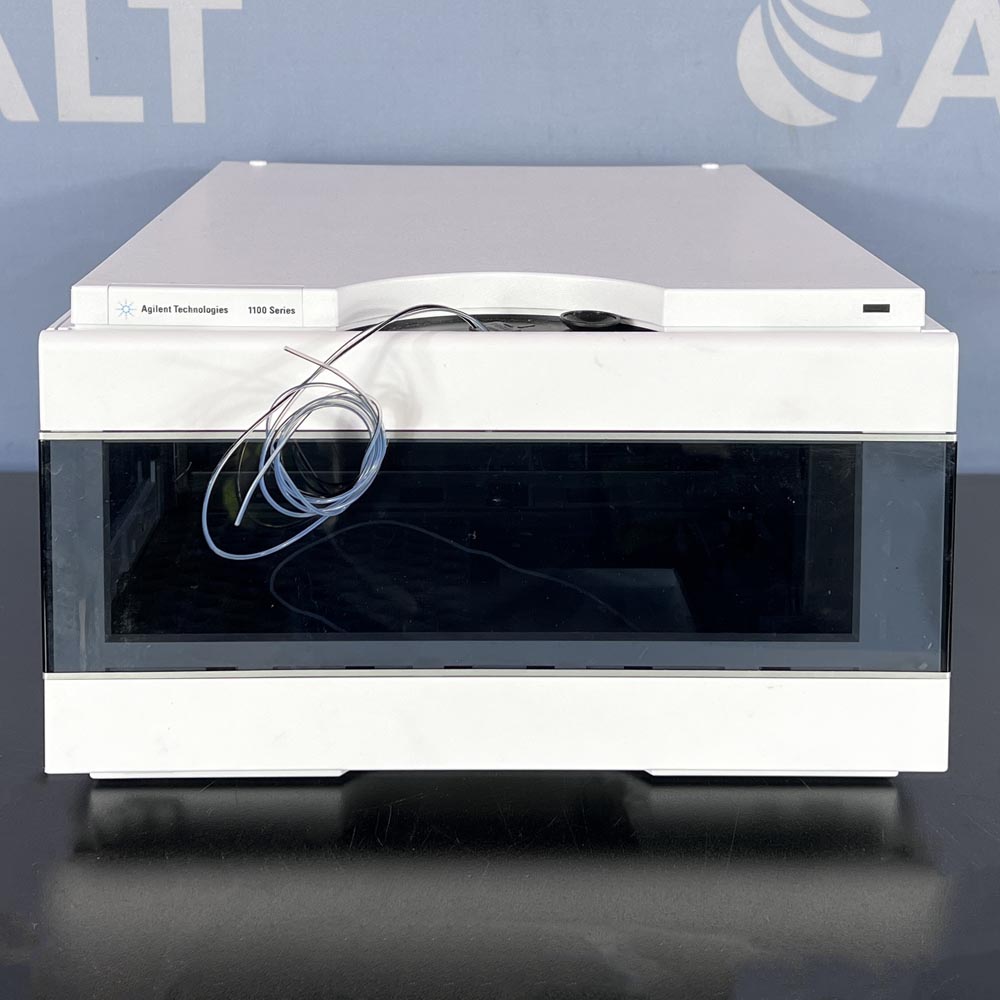

Agilent 1100 Series G1364B Preparative Scale Fraction Collector

The Agilent 1100 Series G1364B Preparative Scale Fraction Collector specifications include:

• Operating voltage: 230 volts AC
• Maximum flow rate: 100 ml / min (depending on viscosity and generated back pressure, max.6 bar at the diverter valve)
• Maximum capacity: 3 fraction collectors in parallel plus one recovery fraction collectorconnected via 12-Position, 13-Port Selector valve.
• Interfaces:Controller-area network (CAN).optional; LAN or external contacts interface RS232C, APG-remote (for remote start / stop signals to / from othermodules). Interface to G1330A Thermostat CAN-DC-out for operation of Agilent approved external devices like valves.
• Trigger modes:Time slices, Peak (threshold, up- / downslope), Timetable (combination of time intervals and peak) and Manual trigger.
