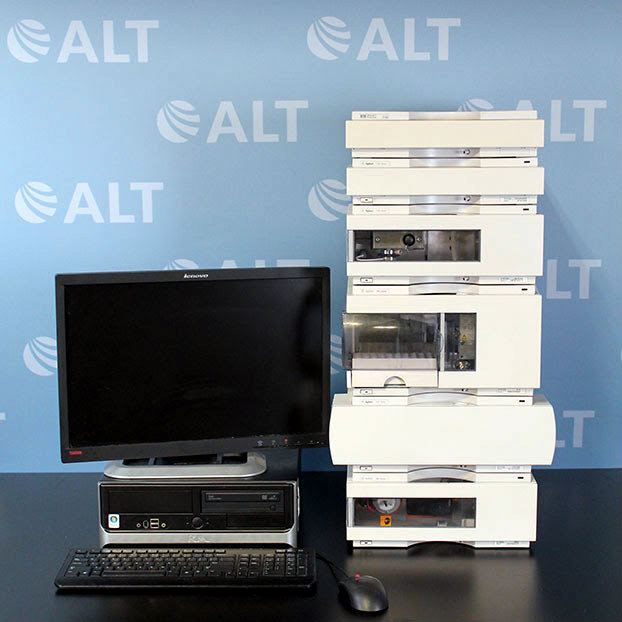

Agilent 1100 Series HPLC System with G1365A MWD and G1310A Isocratic Pump

View the complete line of Refurbished Agilent 1100, 1200, 1260, 1290 HPLC Systems

This Agilent 1100 HPLC System Includes:

• G1310A Isocratic Pump
• G1365A MWD
• G1313 Autosampler
• G1316 TCC
• G1322 Degasser
• Computer preloaded with software, monitor, keyboard, mouse, and cables

The Agilent 1100 HPLC System provides efficient mixing and pulse free solvent delivery for consistently rapid and accurate results. Various combinations of modules including pumps and detectors are possible to address certain applications and requirements. It features a high-speed proportioning valve and pre-configured degasser, which allows low-pressure mixing and a large solvent choice flexibility. The Isocratic Pump G1310A is based on a two-channel, dual plunger in series design which comprises all essential functions that a solvent delivery system must fulfill.

Specifications Agilent 1100 HPLC G1310A Isocratic Pump:
– Setable Flow Range: 0.001 — 10 ml/min, in 0.001 ml/min increments
– Flow Range: 0.2 — 10.0 ml/min
– Flow Accuracy: ±1% or 10µl/min whatever is greater
– Control and Data Evaluation: Agilent ChemStation for LC
– Analog Output: For pressure monitoring, 2 mV/bar, one output

Specifications for MWD Multi-Wavelength Detector:
– Wavelength range: 190 – 950 nm
– Light source: Deuterium and tungsten lamps
– Detection type: 1024-element photodiode array
– Short term noise (ASTM): ± 1 × 10-5 AU at 254 and 750 nm
– Drift: 2 × 10-3AU/hr at 254 nm
– Linear absorbance Range: > 2 AU (upper limit)
– Wavelength accuracy: ± 1 nm
– Wavelength bunching: 1 – 400 nm
– Slit width: 1, 2, 4, 8, 16 nm
– Diode width: < 1 nm
