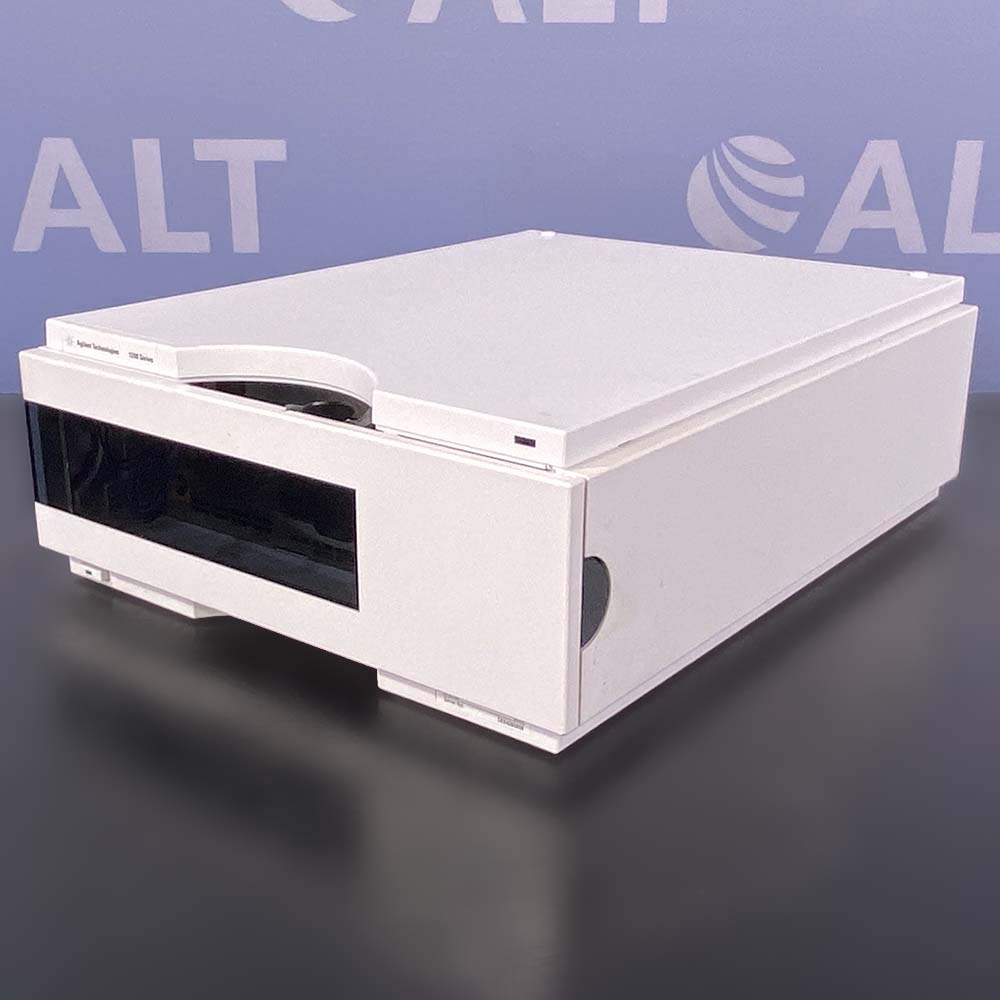

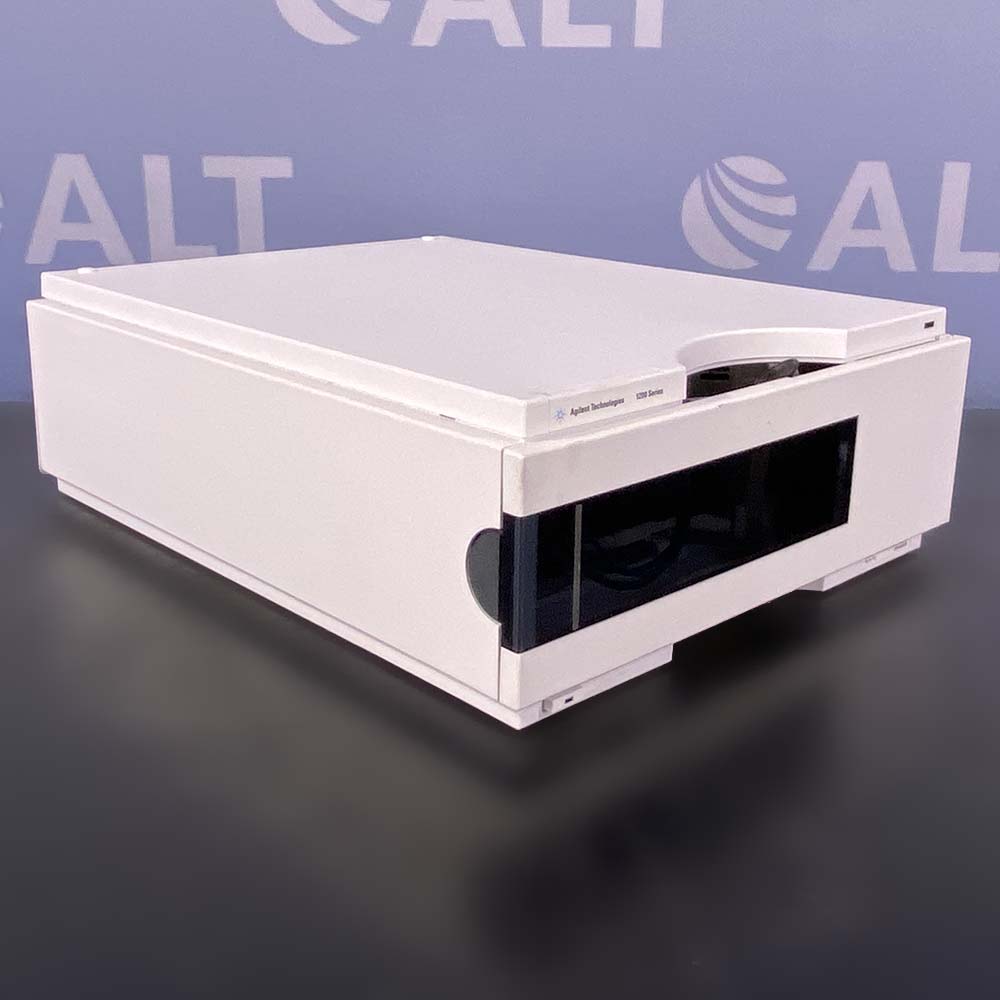

Agilent Technologies 1200 Series G1315D DAD Diode Array Detector is designed for highest optical performance, GLP compliance and easy maintenance.

It includes long-life deuterium and tungsten lamps for highest intensity and lowest detection limit over a wavelength range of 190-950 nm,

No loss in sensitivity for up to 5 wavelengths simultaneously

Programmable slit from 1-16 nm for complete optimization of sensitivity, linearity and spectral resolution,

Optional flow-cell cartridges with I.D. tag((standard 10 mm 13 µl, semi-micro 6 mm 5 µl, micro 3 mm 2 µl, 80 nl/500 nl 10 mm, high pressure 10 mm 1.7 µl and prep-cells) are available and can be used

Easy front access to lamps and flow cell for fast replacement and built-in holmium oxide filter for fast wavelength accuracy verification as well as built-in temperature control for improved baseline stability.

Specifications:

• Weight: 11.5kg (26lbs)
• Dimensions(W x D x H): 345 x 435 x 140 mm
• Line voltage: 100 – 240 VAC, ± 10 %
• Line frequency: 50 or 60 Hz ± 5 %
• Power consumption: 300 VA / 125 W / 427 BTU
• Ambient operating temperature: 0 – 55 °C (32 – 131 °F)
• Ambient non-operating temperature: -40 – 70 °C (-4 – 158 °F)
• Humidity: < 95%, at 25 – 40 °C (77 – 104 °F)
• Operating altitude: up to 2000m (6500 ft)
• Non-operating altitude: up to 4600m (14950 ft)
