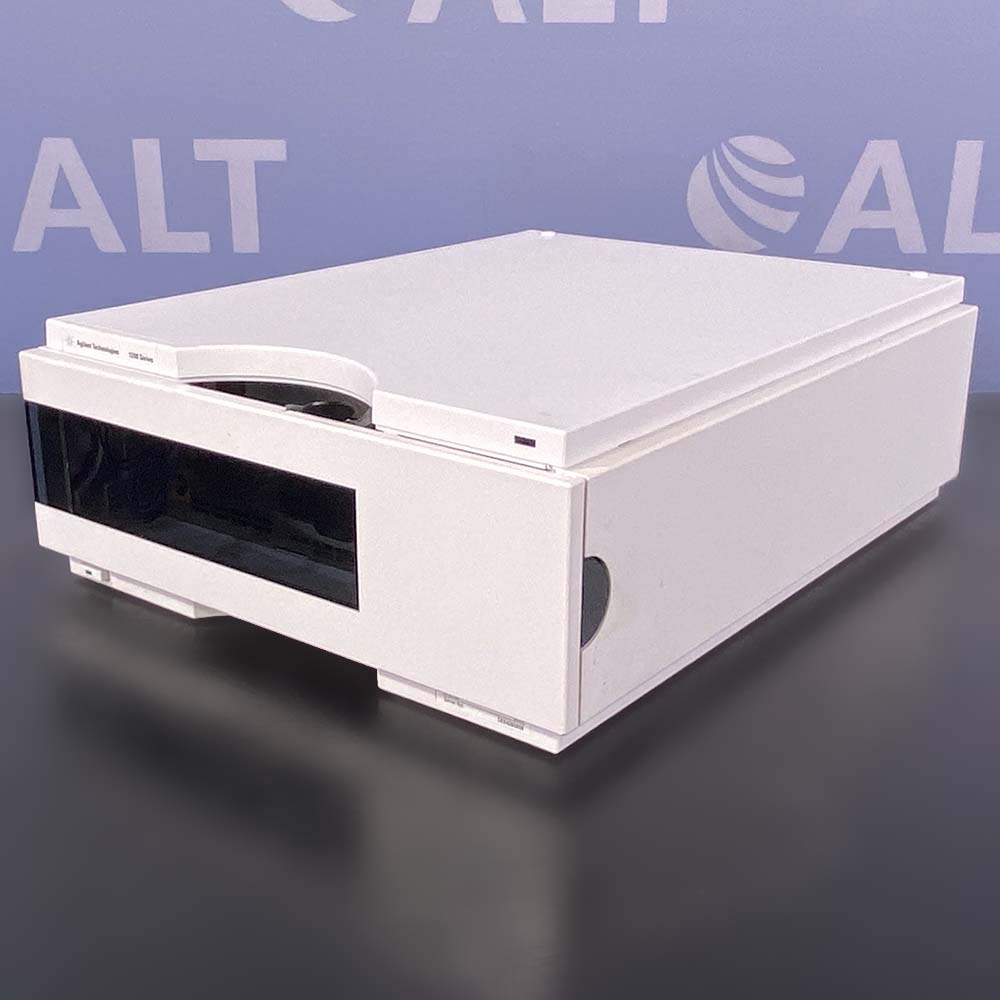

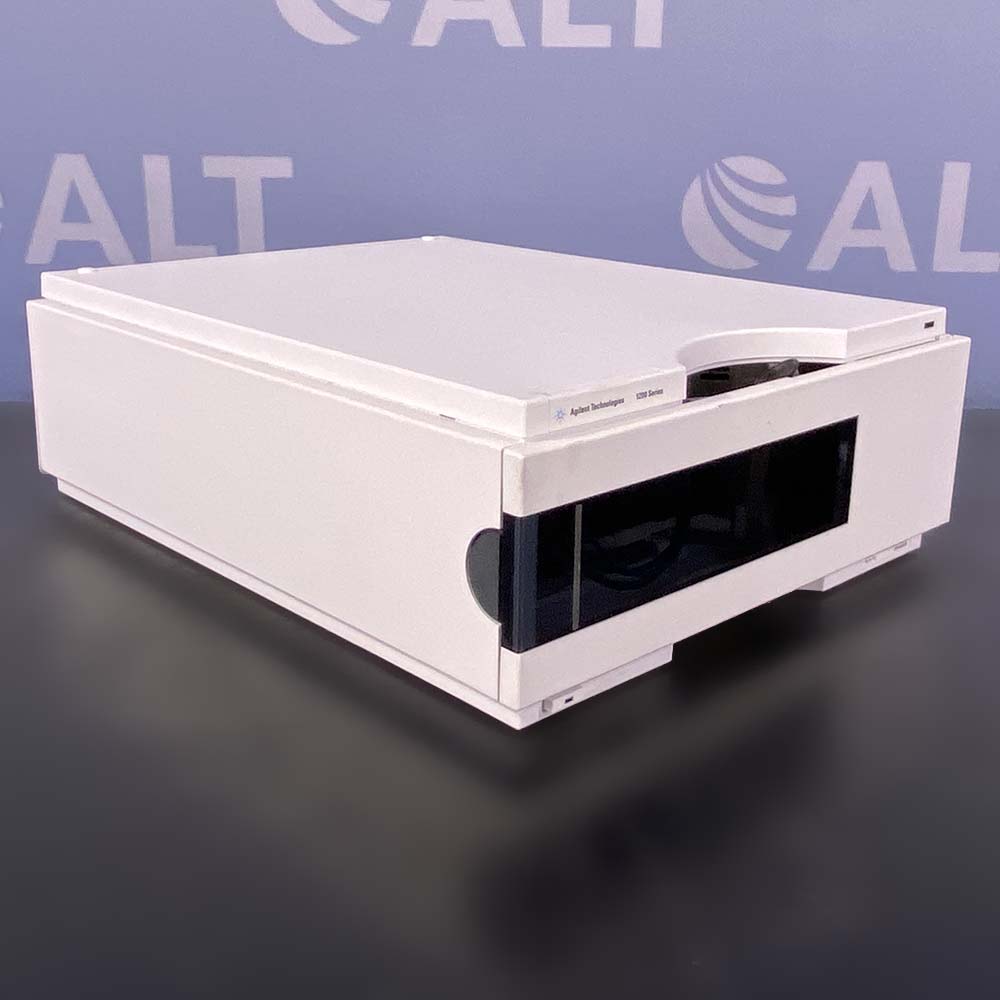

Agilent 1200 Series G1315D DAD Diode Array Detector

Agilent Technologies 1200 Series G1315D DAD Diode Array Detector is designed for highest optical performance, GLP compliance and easy maintenance.

Features:

• Long-life deuterium and tungsten lamps for highest intensity and lowest detection limit over a wavelength range of 190-950 nm
• No loss in sensitivity for up to 5 wavelengths simultaneously
• Programmable slit from 1-16 nm for complete optimization of sensitivity, linearity and spectral resolution
• Easy front access to lamps and flow cell for fast replacement and built-in holmium oxide filter for fast wavelength accuracy verification as well as built-in temperature control for improved baseline stability

Specifications:

Weight: 11.5 kg (26 lbs)
Dimensions: 13.6″ W x 17.1″ D x 5.5″ H (34.5 x 43.5 x 14 cm)
Power: 100 – 240V, ± 10 %, 60 Hz ± 5 %
Power consumption: 300 VA / 125 W / 427 BTU
Ambient operating temperature: 0°C – 55 °C
Ambient non-operating temperature: -40°C – 70 °C
Humidity: < 95%, at 25 – 40 °C
Operating altitude: up to 2000m (6561 ft)
Non-operating altitude: up to 4600m (14950 ft)
