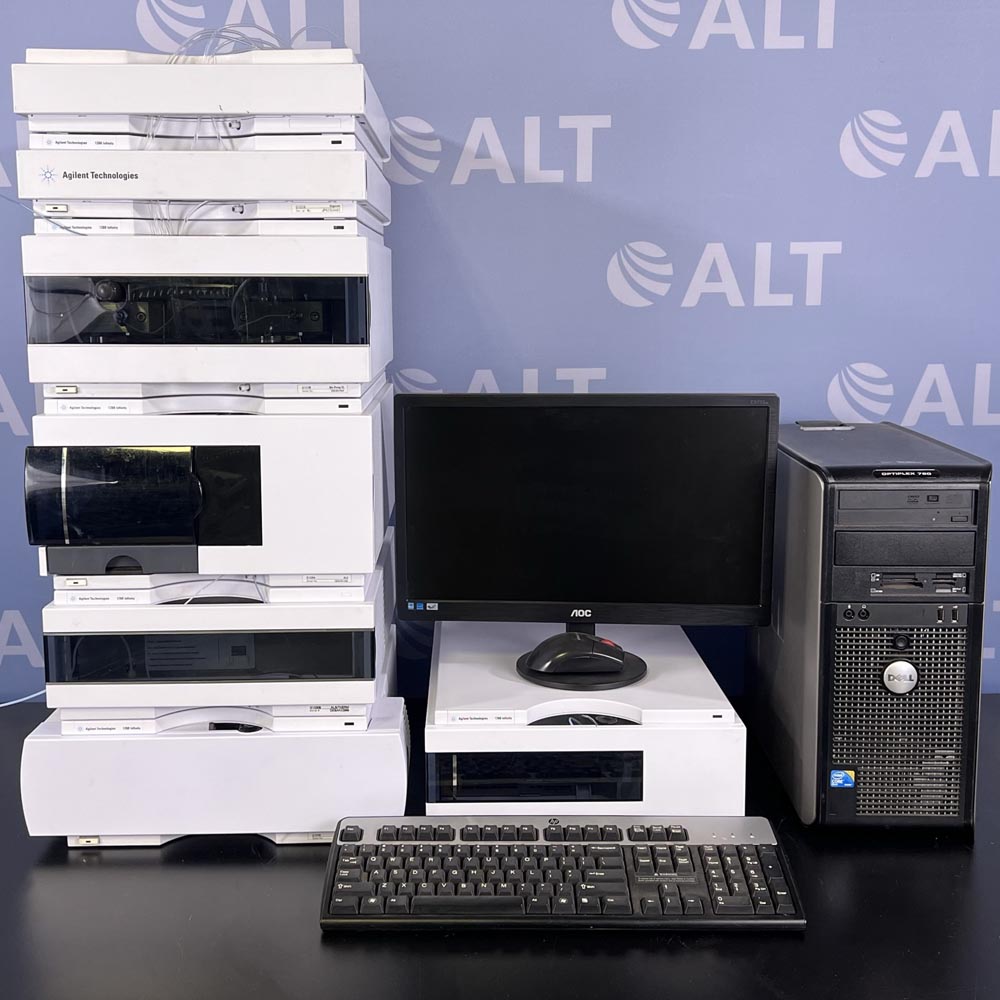

Agilent 1200 Series HPLC System With G1311 Quat Pump, G1329 ALS, G1330 ALS Therm, G1365 MWD

The Agilent 1200 Series HPLC system is a fully integrated liquid chromatography solution designed for reliable gradient delivery, precise sample injection, controlled column heating, and multi-wavelength UV-Vis detection. This configuration includes the G1311A quaternary pump, G1329A autosampler with G1330B thermostat, G1316A thermostatted column compartment, G1365 multi-wavelength detector, and G1322A vacuum degasser. A preconfigured computer loaded with ChemStation software and all necessary peripherals is also included, providing a ready-to-run analytical platform for a wide range of applications.

• Quaternary pump supports low-pressure mixing with up to four solvents
• Autosampler delivers consistent, low-carryover injections; temperature-controlled via thermostat
• Thermostatted column compartment enables precise temperature regulation up to 80°C
• MWD allows for simultaneous multi-wavelength UV-Vis detection from 190 to 950 nm
• Degasser improves baseline stability and detector sensitivity by removing dissolved gases
• Includes PC pre-loaded with Agilent ChemStation software, monitor, keyboard, mouse, and cables

Specifications:

• G1311A Quaternary Pump:
  • Flow rate: 0.2 – 10.0 mL/min; 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Gradient formation: Low-pressure mixing; delay volume 800–1100 µL
  • Flow accuracy: ±1% or 10 µL/min
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 25 lbs (11 kg)
• G1329A Autosampler with G1330B Thermostat:
  • Injection range: 0.1–100 µL; up to 1500 µL with modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: <0.1% standard; <0.05% with external needle cleaning
  • Cooling range: Down to 4°C with G1330B
  • Sample capacity: 100 × 2 mL vials
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 31.3 lbs (14.2 kg)
• G1316A Thermostatted Column Compartment:
  • Temperature range: 10°C below ambient to 80°C
  • Temperature stability: ±0.15°C; Accuracy: ±0.8°C
  • Capacity: Up to three 30 cm columns
  • Power: 320 VA / 150 W
  • Dimensions: 5.5 x 16 x 17 in (140 x 410 x 435 mm); Weight: 22.5 lbs (10.2 kg)
• G1365 Multiple Wavelength Detector:
  • Wavelength range: 190–950 nm
  • Simultaneous detection: Up to 8 wavelengths
  • Slit width: Programmable (1, 2, 4, 8, 16 nm)
  • Flow cells: Standard 13 µL, 10 mm path length, up to 120 bar
  • Noise: ±1 × 10⁻⁵ AU at 254/750 nm
  • Wavelength accuracy: ±1 nm; Self-calibrating
  • Power: 300 VA / 125 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 26 lbs (11.5 kg)
• G1322A Vacuum Degasser:
  • Four-channel degassing system with ~12 mL internal volume per channel
  • Flow rate: up to 10 mL/min per channel
  • Materials in contact: PTFE, PEEK; pH range: 1–14
  • Power: 30 W
  • Dimensions: 3.1 x 13.5 x 17 in (80 x 345 x 435 mm); Weight: 15.4 lbs (7 kg)

This system provides all-in-one chromatography performance with full solvent mixing, precision temperature control, spectral detection, and a turnkey workstation—ideal for labs seeking a comprehensive and reliable analytical solution.
