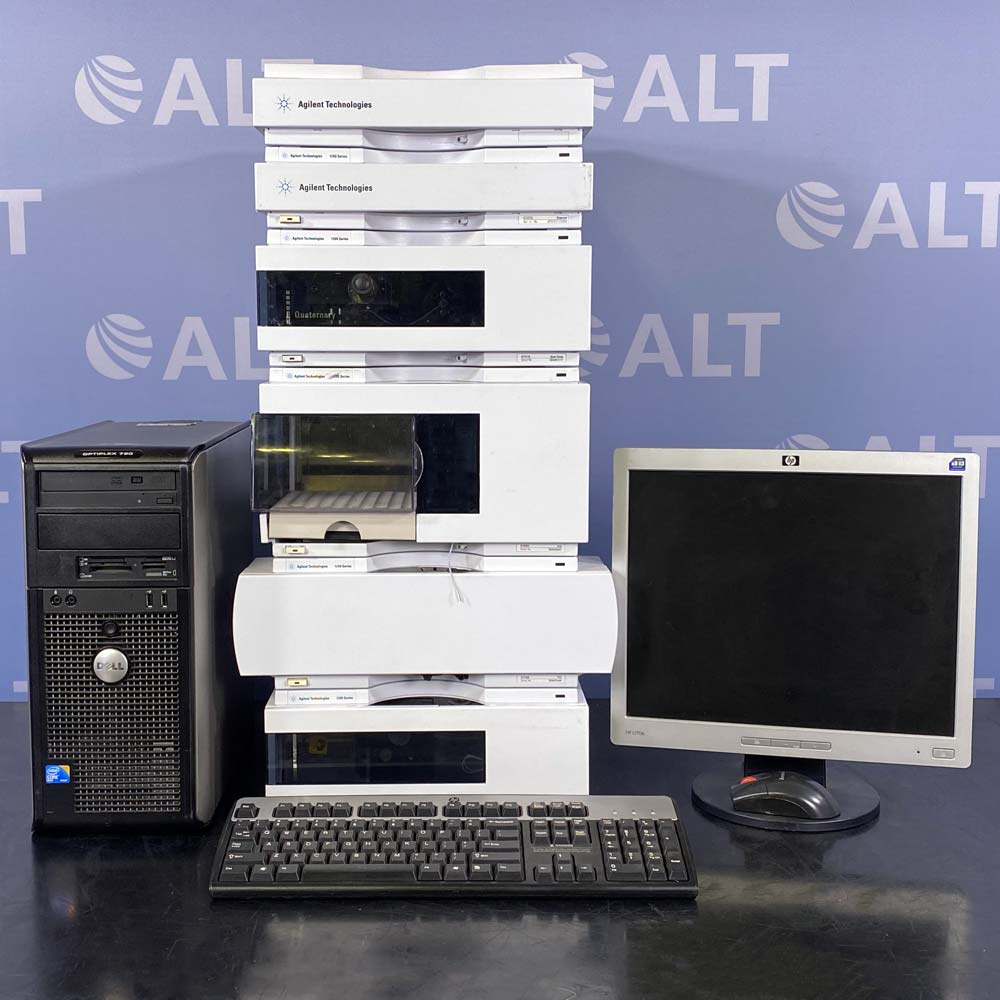

Agilent 1200 Series HPLC System With G1311 Quat Pump, G1367 HiP ALS, G1365 MWD

The Agilent 1200 Series HPLC system combines solvent flexibility, rapid autosampling, and advanced UV-Vis detection in a compact, high-performance platform. This configuration includes the G1311A quaternary pump for low-pressure mixing, the G1367B high-performance autosampler for fast and accurate injections, and the G1365 multi-wavelength detector for multi-channel absorbance monitoring—ideal for high-throughput and multi-analyte applications.

• Quaternary pump supports gradient formation from up to four solvents using low-pressure mixing
• HiP autosampler delivers fast injection cycles and supports both vials and well plates
• MWD enables simultaneous UV-Vis detection at up to 8 wavelengths from 190 to 950 nm
• Designed for method development, QA/QC, and demanding routine analyses

Specifications:

• G1311A Quaternary Pump:
  • Flow rate: 0.2 – 10.0 mL/min; adjustable in 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Flow accuracy: ±1% or 10 µL/min
  • Gradient formation: Low-pressure mixing; delay volume 800–1100 µL
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 25 lbs (11 kg)
• G1367B High-Performance Autosampler:
  • Injection range: 0.1–100 µL; up to 1500 µL with modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: Typically <0.01%
  • Supports sample formats: 2 mL vials, well plates, Eppendorf tubes
  • Cycle time: Typically <30 seconds
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 34.2 lbs (15.5 kg)
• G1365 Multiple Wavelength Detector:
  • Wavelength range: 190–950 nm
  • Simultaneous detection: Up to 8 wavelengths
  • Slit width: Programmable (1, 2, 4, 8, 16 nm)
  • Flow cells: Standard 13 µL, 10 mm path length, up to 120 bar
  • Noise: ±1 × 10⁻⁵ AU at 254/750 nm
  • Wavelength accuracy: ±1 nm; self-calibrating
  • Power: 300 VA / 125 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 26 lbs (11.5 kg)

This configuration delivers versatile gradient control, high-throughput sampling, and simultaneous multi-wavelength detection—ideal for busy labs needing speed, accuracy, and flexibility in a single platform.
