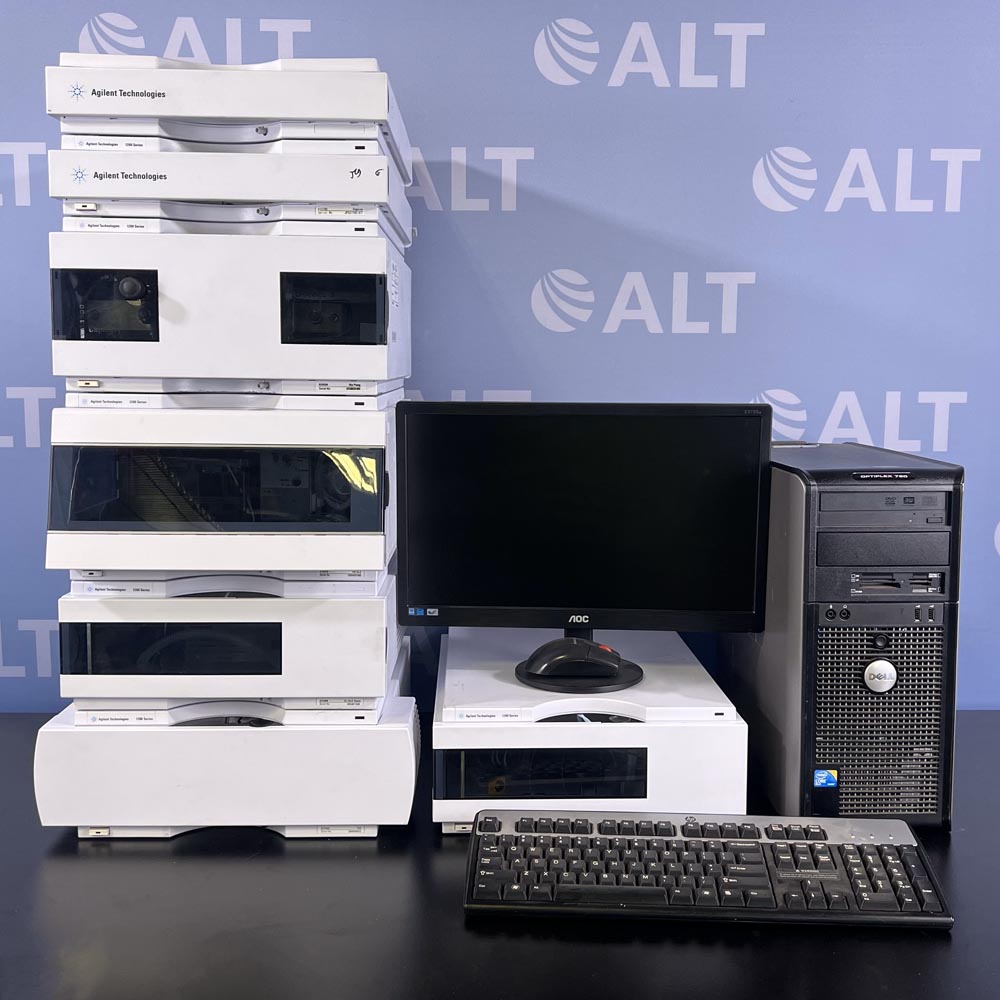

Agilent 1200 Series HPLC System With G1312 Binary Pump, G1329 ALS, G1330 ALS Therm, G1315 DAD

The Agilent 1200 Series HPLC system is a high-performance platform designed for precise binary gradient delivery, full-spectrum UV-Vis detection, and temperature-stabilized separations. This configuration includes the G1312A binary pump, G1329A autosampler with G1330B thermostat, G1316A column compartment, G1315 diode array detector (DAD), and a G1322A or G1379A vacuum degasser. A complete computer workstation preloaded with ChemStation software and all essential peripherals makes this a fully integrated solution ready for immediate deployment.

• Binary pump provides accurate high-pressure gradient formation with excellent flow stability
• Autosampler delivers reproducible, low-carryover injections with programmable volumes
• ALS thermostat maintains sample integrity via cooling down to 4°C
• Thermostatted column compartment enables stable method conditions up to 80°C
• DAD enables full-spectrum UV-Vis detection from 190 to 950 nm
• Degasser improves baseline stability by removing dissolved gases from solvents
• Includes PC preloaded with ChemStation software, flat screen monitor, keyboard, mouse, and cables

Specifications:

• G1312A Binary Pump:
  • Flow rate: 0.1 – 5.0 mL/min; 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Gradient formation: High-pressure binary mixing; delay volume 180–900 µL
  • Flow accuracy: ±1% or 10 µL/min
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 7 x 13.5 x 17 in (180 x 345 x 435 mm); Weight: 34 lbs (15.5 kg)
• G1329A Autosampler with G1330B Thermostat:
  • Injection range: 0.1–100 µL; up to 1500 µL with modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: <0.1% standard; <0.05% with external needle cleaning
  • Cooling range: Down to 4°C via G1330B
  • Sample capacity: 100 × 2 mL vials
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 31.3 lbs (14.2 kg)
• G1316A Thermostatted Column Compartment:
  • Temperature range: 10°C below ambient to 80°C
  • Temperature stability: ±0.15°C; Accuracy: ±0.8°C
  • Column capacity: Up to three 30 cm columns
  • Power: 320 VA / 150 W
  • Dimensions: 5.5 x 16 x 17 in (140 x 410 x 435 mm); Weight: 22.5 lbs (10.2 kg)
• G1315 Diode Array Detector:
  • Wavelength range: 190–950 nm
  • Full-spectrum acquisition with 1 nm resolution
  • Slit width: Programmable (1, 2, 4, 8, 16 nm)
  • Flow cell: 13 µL, 10 mm path length, up to 120 bar
  • Wavelength accuracy: ±1 nm; Noise: ±1 × 10⁻⁵ AU at 254/750 nm
  • Power: 300 VA / 125 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 26 lbs (11.5 kg)
• G1322A / G1379A Degasser:
  • Channels: 4-channel vacuum degasser
  • Flow rate: up to 10 mL/min per channel
  • Internal volume: ~12 mL per channel
  • Materials in contact: PTFE, PEEK; pH range: 1–14
  • Power: 30 W
  • Dimensions: 3.1 x 13.5 x 17 in (80 x 345 x 435 mm); Weight: ~15.4 lbs (7 kg)

This system delivers accurate gradient control, temperature-stable separations, and full-spectrum detection—ideal for pharmaceutical, environmental, and research labs seeking a turnkey analytical solution.
