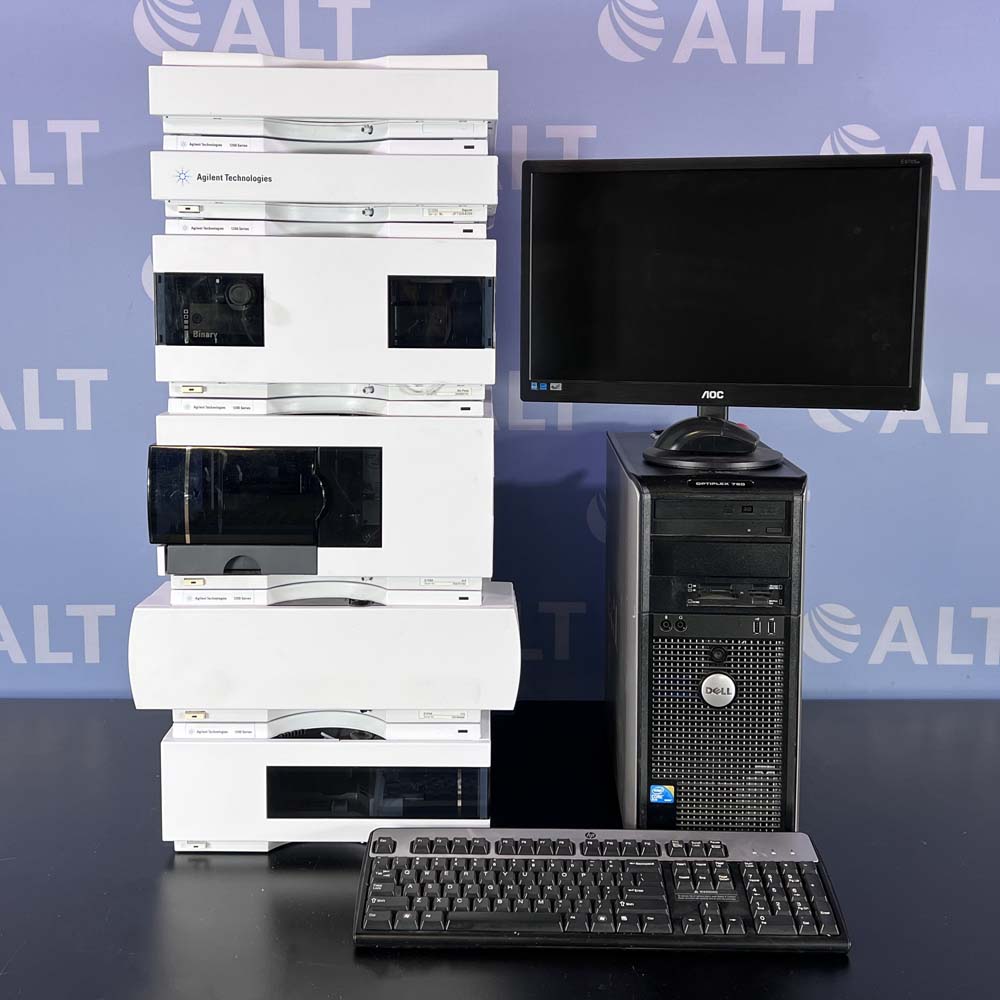

Agilent 1200 Series HPLC System With G1312 Binary Pump, G1329 ALS, G1365 MWD

The Agilent 1200 Series HPLC system combines powerful gradient delivery, reliable sample injection, precision thermal control, and advanced multi-wavelength detection. Featuring the G1312A binary pump, G1329A autosampler, G1316A thermostatted column compartment (TCC), G1365D multiple wavelength detector, and G1322A degasser, this configuration is tailored for high-performance workflows requiring analytical precision and stability.

• Binary pump ensures accurate high-pressure gradient mixing for reproducible results
• Autosampler offers consistent and low-carryover injections with broad injection range
• Thermostatted column compartment supports temperature-sensitive methods up to 80°C
• MWD provides simultaneous multi-wavelength detection from 190 to 950 nm
• Vacuum degasser ensures baseline stability and reduced detector noise

Specifications:

• G1312A Binary Pump:
  • Flow rate: 0.1 – 5.0 mL/min; settable in 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Flow accuracy: ±1% or 10 µL/min
  • Flow precision: ≤0.07% RSD or ≤0.02 min SD
  • Gradient formation: High-pressure binary mixing; delay volume 180–900 µL
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 7 x 13.5 x 17 in (180 x 345 x 435 mm); Weight: 34 lbs (15.5 kg)
• G1329A Autosampler:
  • Injection range: 0.1–100 µL; up to 1500 µL with hardware modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: <0.1% standard; <0.05% with external needle cleaning
  • Sample capacity: 100 × 2 mL vials
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 31.3 lbs (14.2 kg)
• G1316A Thermostatted Column Compartment:
  • Temperature range: 10°C below ambient to 80°C
  • Temperature stability: ±0.15°C; Accuracy: ±0.8°C
  • Column capacity: up to three 30 cm columns
  • Power: 320 VA / 150 W
  • Dimensions: 5.5 x 16 x 17 in (140 x 410 x 435 mm); Weight: 22.5 lbs (10.2 kg)
• G1365D Multiple Wavelength Detector:
  • Wavelength range: 190–950 nm
  • Simultaneous detection: Up to 8 wavelengths
  • Slit width: Programmable (1, 2, 4, 8, 16 nm)
  • Flow cells: 13 µL standard, 10 mm path length, up to 120 bar
  • Noise: ±1 × 10⁻⁵ AU at 254/750 nm
  • Power: 300 VA / 125 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 26 lbs (11.5 kg)
• G1322A Vacuum Degasser:
  • Flow rate: up to 10 mL/min per channel; 4 channels total
  • Internal volume per channel: ~12 mL
  • Materials in contact: PTFE, PEEK
  • pH range: 1 – 14
  • Power: 30 W
  • Dimensions: 3.1 x 13.5 x 17 in (80 x 345 x 435 mm); Weight: 15.4 lbs (7 kg)

This system delivers exceptional chromatographic stability and data fidelity—ideal for regulated labs and advanced analytical workflows requiring thermal control, solvent degassing, and multi-channel UV-Vis detection.
