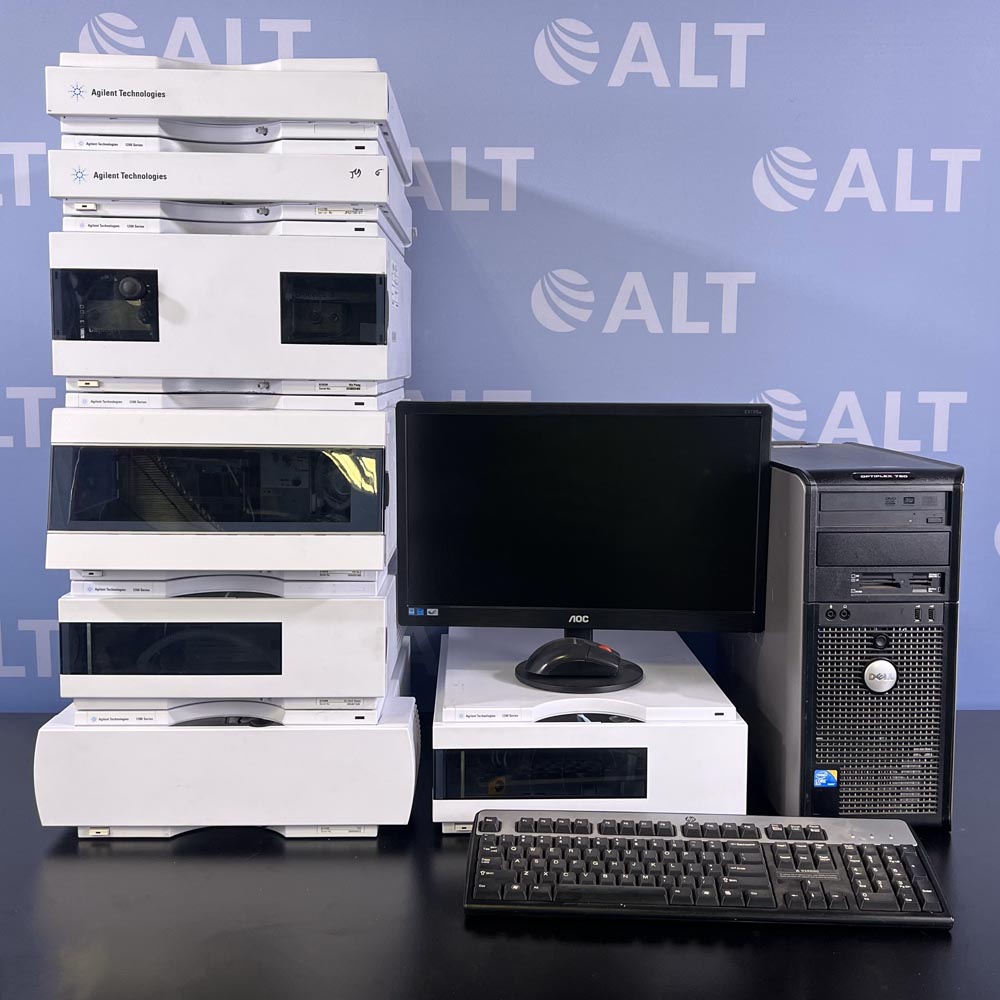

Agilent 1200 Series HPLC System With G1312 Binary Pump, G1367 HiP ALS, G1330 ALS Therm, G1365 MWD

The Agilent 1200 Series HPLC system configured with a high-performance autosampler, binary pump, and multi-wavelength detector delivers speed, precision, and flexibility for demanding chromatographic workflows. This setup features the G1312A binary pump for high-pressure mixing, the G1367B high-performance autosampler with G1330B thermostat for cooled injection capability, and the G1365B MWD for sensitive and simultaneous multi-wavelength detection.

• Binary pump supports precise high-pressure gradients for reproducible separations
• High-performance autosampler provides fast, low-carryover injections and expanded vial/well plate compatibility
• Thermostatted operation maintains sample integrity with cooling to 4°C
• MWD allows detection at up to 8 wavelengths across 190–950 nm for comprehensive analysis

Specifications:

• G1312 Binary Pump:
  • Flow rate: 0.1 – 5.0 mL/min; 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Flow accuracy: ±1% or 10 µL/min
  • Flow precision: ≤0.07% RSD or ≤0.02 min SD
  • Gradient formation: High-pressure binary mixing; delay volume 180–900 µL
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 7 x 13.5 x 17 in (180 x 345 x 435 mm); Weight: 34 lbs (15.5 kg)
• G1367 High-Performance Autosampler with G1330 Thermostat:
  • Injection range: 0.1–100 µL; up to 1500 µL with hardware modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: Typically <0.01%
  • Sample formats: Well plates, 2 mL vials, Eppendorf tubes
  • Cooling: Down to 4°C with G1330 thermostat
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 34.2 lbs (15.5 kg)
• G1365 Multiple Wavelength Detector:
  • Wavelength range: 190–950 nm
  • Simultaneous detection: Up to 8 wavelengths
  • Slit width: Programmable (1, 2, 4, 8, 16 nm)
  • Flow cells: Standard 13 µL, 10 mm path length, up to 120 bar
  • Noise: ±1 × 10⁻⁵ AU at 254/750 nm
  • Wavelength accuracy: ±1 nm; self-calibrating
  • Power: 300 VA / 125 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 26 lbs (11.5 kg)

This system is ideal for labs that require high-throughput sampling, precise gradient delivery, and advanced UV-Vis detection—supporting complex analyses with confidence and efficiency.
