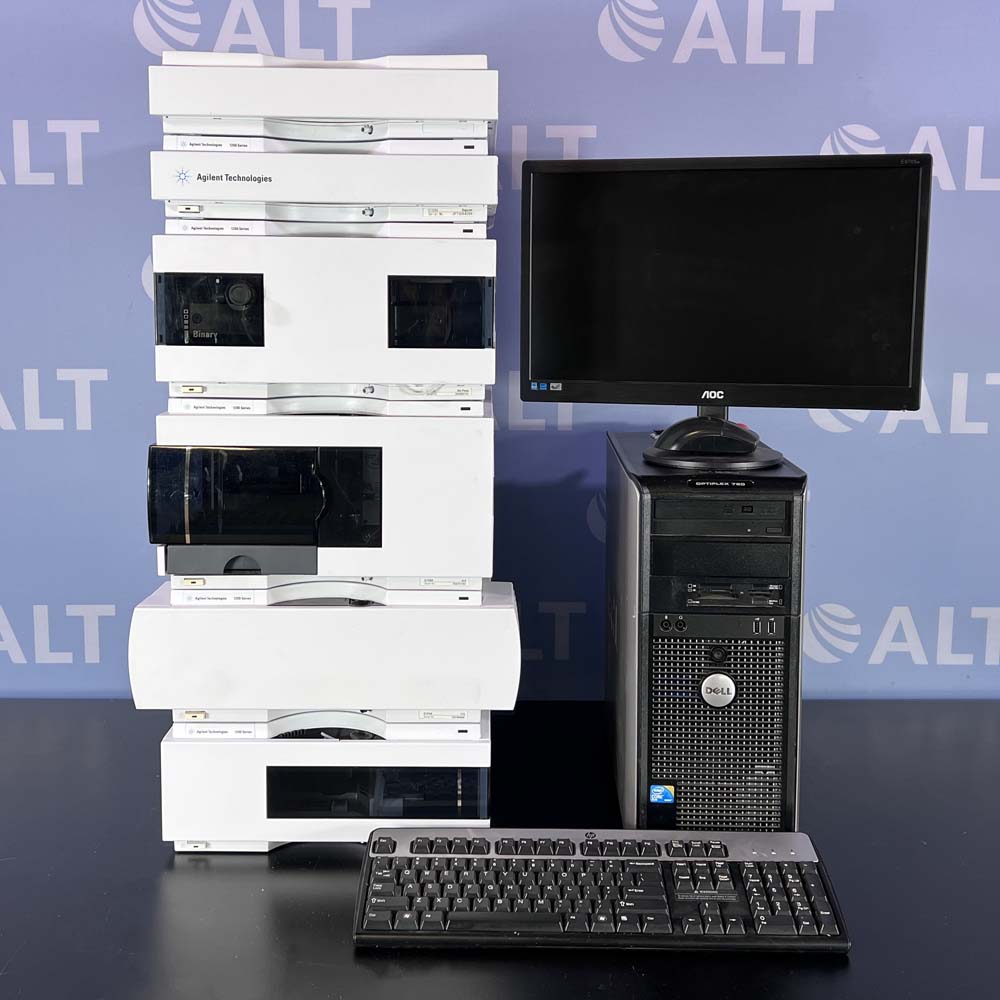

Agilent 1200 Series HPLC System With G1312 Binary Pump, G1367 HiP ALS, G1365 MWD

The Agilent 1200 Series HPLC system featuring a Binary Pump, High-Performance Autosampler, and Multi-Wavelength Detector (MWD) is engineered for high-throughput, high-precision chromatography. With the G1312A binary pump enabling fast gradient formation, the G1367B autosampler supporting rapid and precise injections, and the G1365 multi-wavelength detector offering advanced UV-Vis detection, this system is ideal for labs running demanding analytical workflows.

• Binary pump ensures accurate high-pressure gradient mixing for reproducible separations
• High-performance autosampler supports rapid injections with a wide range of sample formats
• MWD captures multi-channel UV-Vis data for enhanced spectral analysis
• Ideal for regulated labs, method development, and complex sample profiling

Specifications:

• G1312A Binary Pump:
  • Flow rate: 0.1 – 5.0 mL/min; settable in 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Flow accuracy: ±1% or 10 µL/min
  • Flow precision: ≤0.07% RSD or ≤0.02 min SD
  • Gradient formation: High-pressure binary mixing; delay volume 180–900 µL
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 7 x 13.5 x 17 in (180 x 345 x 435 mm); Weight: 34 lbs (15.5 kg)
• G1367B High-Performance Autosampler:
  • Injection range: 0.1–100 µL; up to 1500 µL with modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: Typically <0.01%
  • Sample formats: 2 mL vials, 96-well plates, Eppendorf tubes
  • Cycle time: Typically <30 seconds per injection
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 34.2 lbs (15.5 kg)
• G1365 Multiple Wavelength Detector:
  • Wavelength range: 190–950 nm
  • Simultaneous detection: Up to 8 wavelengths
  • Slit width: Programmable (1, 2, 4, 8, 16 nm)
  • Flow cells: Standard 13 µL, 10 mm path length, up to 120 bar
  • Noise: ±1 × 10⁻⁵ AU at 254/750 nm
  • Wavelength accuracy: ±1 nm; self-calibrating
  • Power: 300 VA / 125 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 26 lbs (11.5 kg)

This configuration delivers fast injection cycles, precise gradient delivery, and rich spectral data—an ideal platform for high-throughput and high-complexity analytical tasks.
