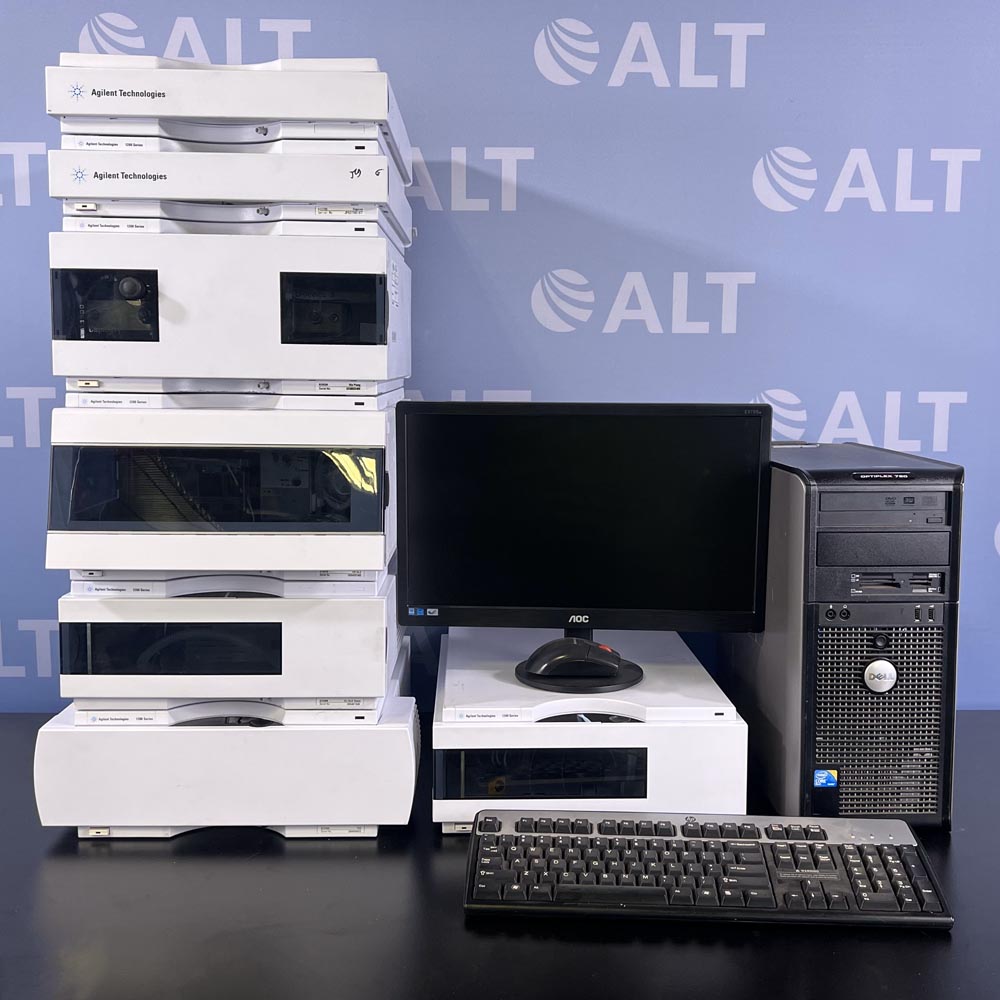

Agilent 1200 Series HPLC System With G1322/G1379 Degasser, G1312 Binary Pump, G1329 ALS, G1330 ALS Therm, G1316 ColCom, G1314 VWD

The Agilent 1200 Series HPLC system is a complete, high-performance liquid chromatography solution designed for routine analysis and quality control environments. This configuration features the G1312A binary pump for precise high-pressure gradient delivery, G1329A autosampler with G1330B thermostat for temperature-controlled injections, G1316A thermostatted column compartment, and the G1314 variable wavelength detector (VWD) for reliable UV absorbance detection. A G1322A or G1379A degasser ensures baseline stability, and a preloaded PC with ChemStation software and full accessories makes this system ready for immediate deployment.

• Binary pump delivers accurate high-pressure mixing for reproducible gradients
• Autosampler with thermostat ensures consistent injection volume and sample integrity
• Column oven maintains thermal stability for method reproducibility
• VWD provides sensitive UV detection for single-wavelength monitoring
• Degasser eliminates solvent bubbles and enhances baseline quality
• Includes computer with Agilent ChemStation software, flat screen monitor, keyboard, mouse, and cables

Specifications:

• G1312A Binary Pump:
  • Flow rate: 0.1 – 5.0 mL/min; 0.001 mL/min increments
  • Pressure range: up to 400 bar (5880 psi)
  • Gradient formation: High-pressure mixing; delay volume 180–900 µL
  • Flow accuracy: ±1% or 10 µL/min
  • Power: 220 VA; Voltage: 100–240 VAC, 50/60 Hz
  • Dimensions: 7 x 13.5 x 17 in (180 x 345 x 435 mm); Weight: 34 lbs (15.5 kg)
• G1329A Autosampler with G1330B Thermostat:
  • Injection range: 0.1–100 µL; up to 1500 µL with modification
  • Precision: <0.25% RSD (5–100 µL); <1% RSD (1–5 µL)
  • Carryover: <0.1% standard; <0.05% with external needle cleaning
  • Cooling range: Down to 4°C via G1330B
  • Sample capacity: 100 × 2 mL vials
  • Power: 300 VA max
  • Dimensions: 8 x 13.5 x 17 in (200 x 345 x 435 mm); Weight: 31.3 lbs (14.2 kg)
• G1316A Thermostatted Column Compartment:
  • Temperature range: 10°C below ambient to 80°C
  • Temperature stability: ±0.15°C; Accuracy: ±0.8°C
  • Column capacity: Up to three 30 cm columns
  • Power: 320 VA / 150 W
  • Dimensions: 5.5 x 16 x 17 in (140 x 410 x 435 mm); Weight: 22.5 lbs (10.2 kg)
• G1314 Variable Wavelength Detector (VWD):
  • Wavelength range: 190–600 nm
  • Light source: Deuterium lamp
  • Wavelength accuracy: ±1 nm
  • Noise: ±1 × 10⁻⁵ AU at 254 nm
  • Flow cell: 10 mm path length, 13 µL volume
  • Power: 100 VA / 70 W
  • Dimensions: 5.5 x 13.5 x 17 in (140 x 345 x 435 mm); Weight: 24 lbs (10.9 kg)
• G1322A / G1379A Degasser:
  • Four-channel vacuum degasser with internal volume ~12 mL per channel
  • Flow rate: up to 10 mL/min per channel
  • Materials in contact: PTFE, PEEK
  • pH range: 1–14
  • Power: 30 W
  • Dimensions: 3.1 x 13.5 x 17 in (80 x 345 x 435 mm); Weight: ~15.4 lbs (7 kg)

This system delivers dependable binary gradient capability, precision sample handling, and UV detection in a fully integrated platform—complete with software and hardware for turnkey operation in pharmaceutical, environmental, and industrial laboratories.
