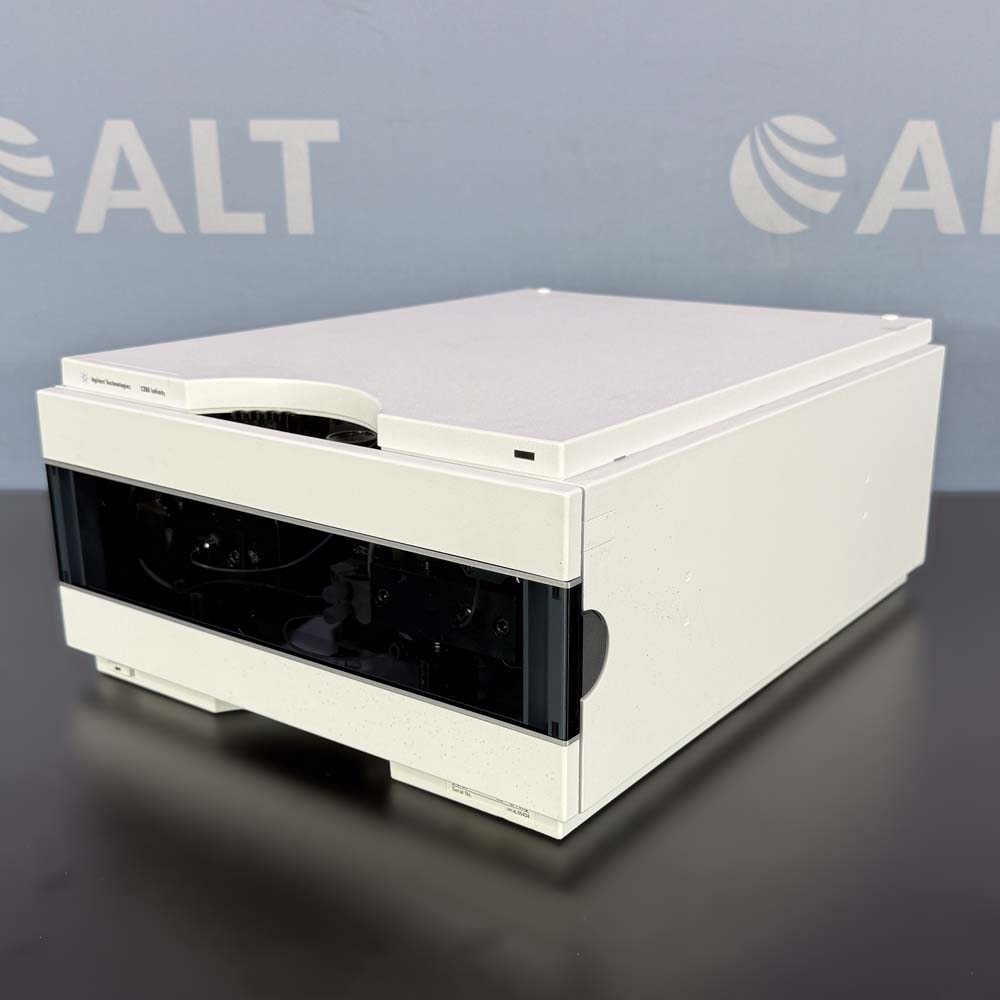

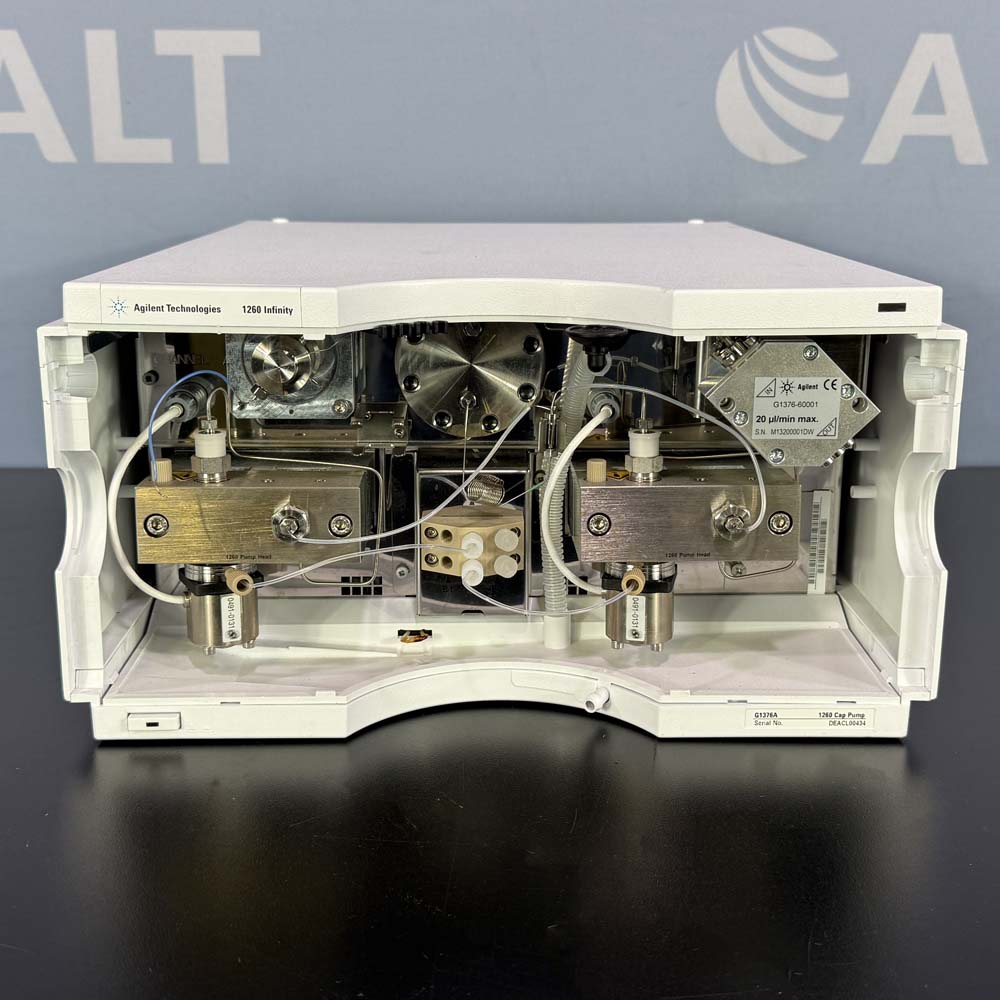

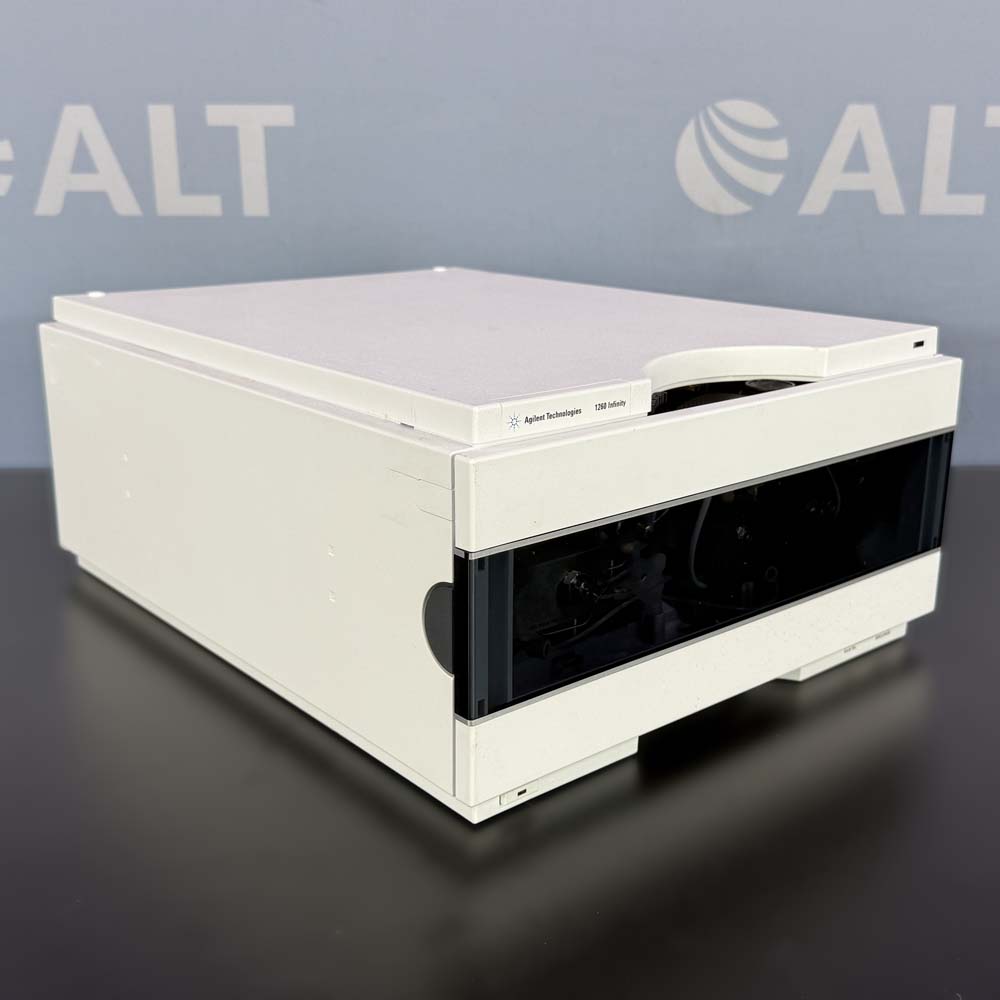

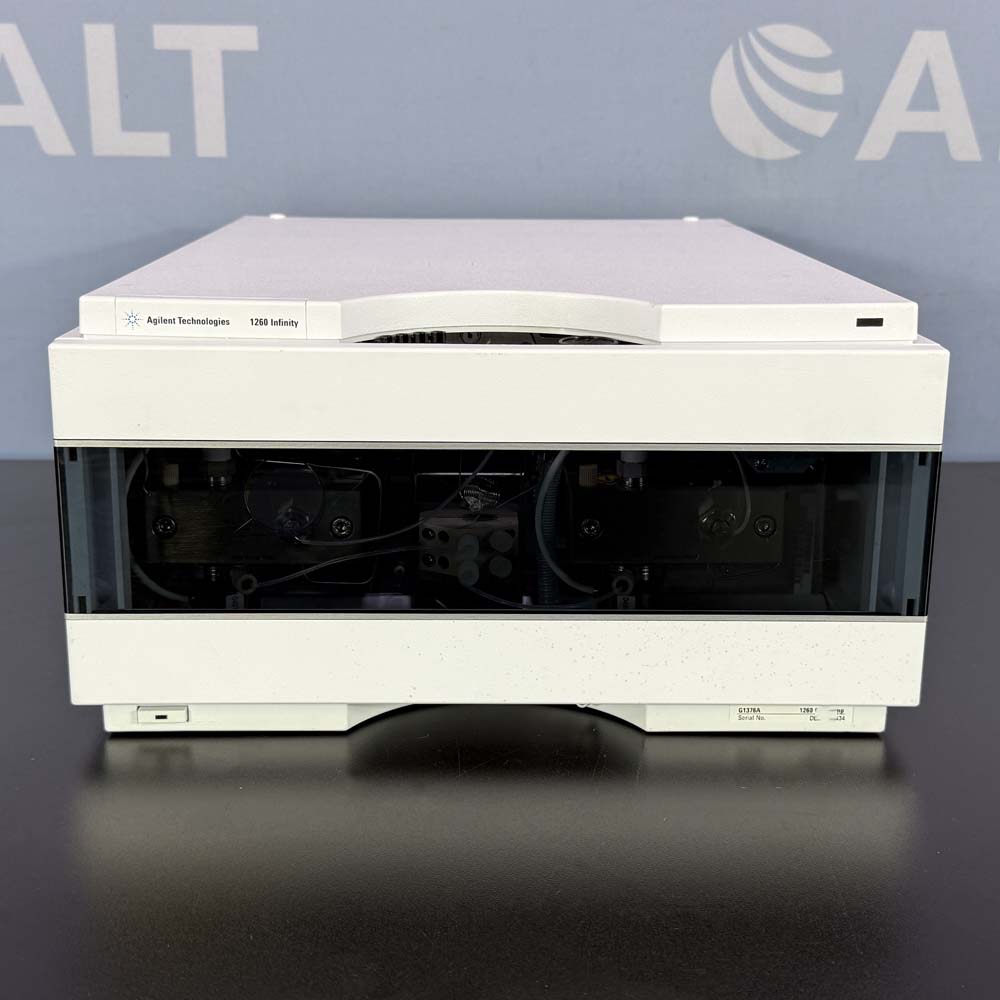

Agilent 1260 Infinity Capillary Pump (G1376A)

The Agilent 1260 Infinity Capillary Pump (G1376A) is a low-flow pump which consists of two identical pumping units in a single housing. They generate gradients by high-pressure mixing. A solvent selection valve provides flexibility in the choice of solvents.

Specifications:

• Line voltage: 100–240VAC, ±10%
• Line frequency: 50 or 60Hz, ±5%
• Power consumption: 180VA / 75W / 256BTU
• Ambient operating temperature: 4 to 55°C (41 to 131°F)
• Humidity: <95%, at 25–40°C (77–104°F), non-condensing
• Operating altitude: up to 2000 m (6562 ft.)
• Settable column flow range
  • 0.01–20 µL/min
  • 0.01–100 µL/min (with the extended flow range kit)
  • 0.001–2.5 µL/min (with the electronic flow control bypassed)
• Pressure range: 200–400 bar (5880 psi) system pressure
• Recommended pH range: 1.0–8.5
• Analog output: for pressure monitoring, 2 mV/bar, one output
• Weight: 17 kg (38 lb.)
• Dimensions (W x H x D): 13.5 x 7 x 17 in. (345 x 180 x 435 mm)
