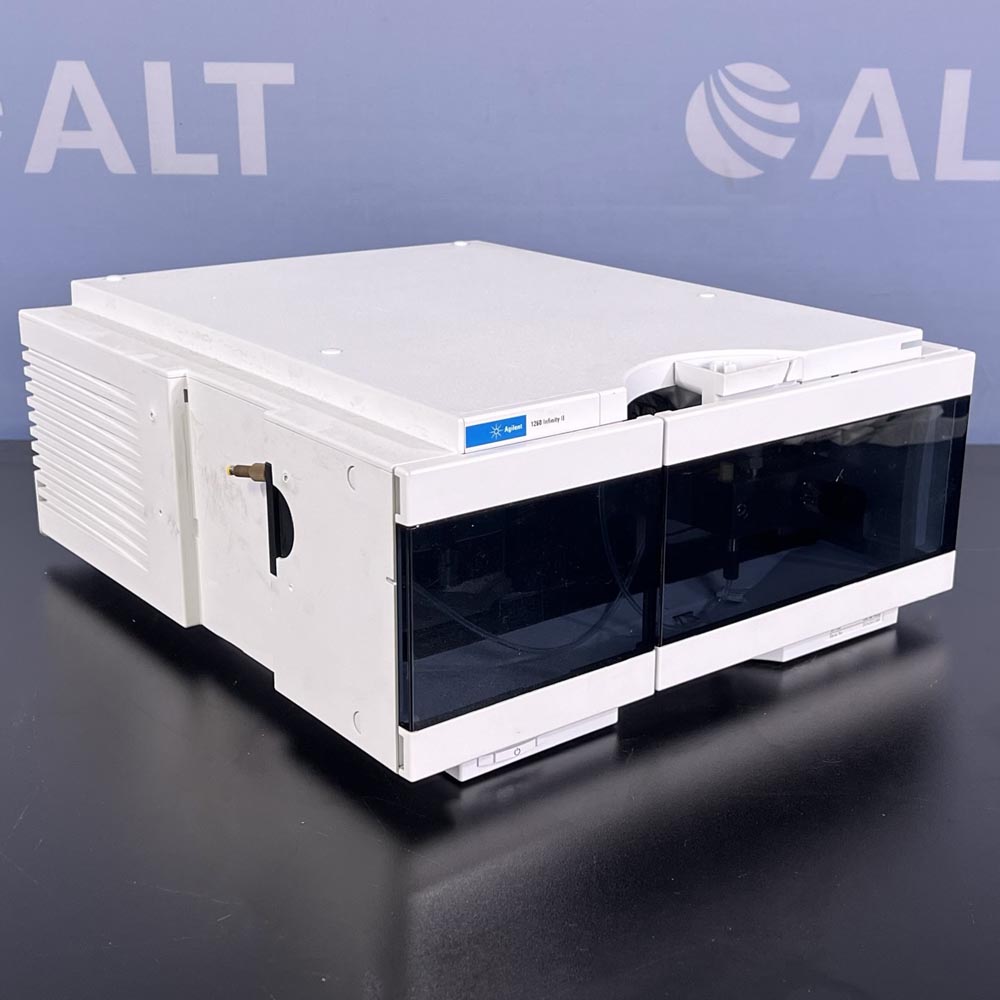

Agilent 1260 Infinity II Iso Pump (G7110B)

Agilent 1260 Infinity II Iso Pump (G7110B) Image

ITEM: 32380 In Stock

  • Free 90 Day Warranty
  • One Year Upgrade Available
  • Tested & Serviced Prior to Shipping

Or call (860) 691-2213

Agilent 1260 Infinity II Iso Pump (G7110B) ImageAgilent 1260 Infinity II Iso Pump (G7110B) ImageAgilent 1260 Infinity II Iso Pump (G7110B) ImageAgilent 1260 Infinity II Iso Pump (G7110B) Image

The Agilent 1260 Infinity II Iso Pump  (G7110B) is designed for demanding QA/QC tasks as well as routine applications. It maintains virtually pulse-free and stable solvent flows. The dual floating, precise servo-controlled pistons in the delivery mechanism adjust the stroke volume according to the user's chosen flow rate.

The pump can deliver a broad range of pressures up to a maximum 600 bar, giving the user flexibility to use small particle size columns, longer columns or alternative higher viscosity solvents. The Agilent 1260 Infinity II Iso Pump (G7110B) is the ideal pump for GPC/SEC applications where run-to-run and day-to-day precision in retention times is crucial.


Hydraulic system: Dual piston in series pump with servo-controlled variable stroke drive, power transmission by gears and ball screws, floating pistons
Settable flow range: Set points 0.001 – 10 mL/min, in 0.001 mL/min increments
Recommended flow range: 0.2 – 10.0 mL/min
Flow precision: ≤0.07 % RSD, or ≤0.02 min SD whatever is greater
Flow accuracy: ± 1 % or 10 µL/min whatever is greater, pumping degassed H2O at 10 MPa (100 bar) Pressure operating range: Operating range up to 60 MPa (600 bar, 8700 psi) up to 5 mL/min; Operating range up to 20 MPa (200 bar, 2950 psi) up to 10 mL/min Pressure pulsation < 2 % amplitude (typically < 1.3 %), or < 0.3 MPa (3 bar, 44 psi), whatever is greater, at 1 mL/min isopropanol, at all pressures > 1 MPa (10 bar, 145 psi)
Compressibility compensation: User-selectable, based on mobile phase compressibility
Weight: 31 lbs. (14 kg)
Dimensions: 15.6" W x 17.2" D x 7.1" H inches (40 x 43.6 x 18 cm)
