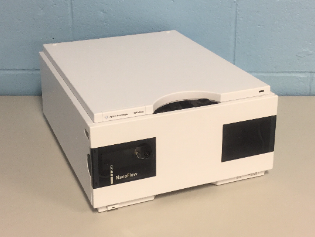

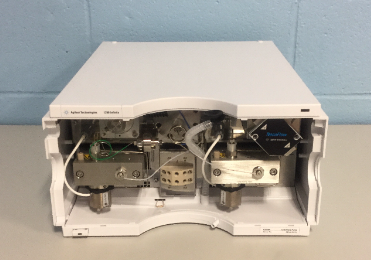

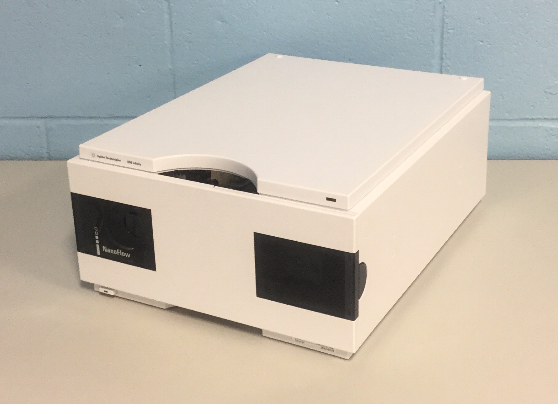

Agilent 1260 Series G2226A Infinity Nano Pump

The Agilent Technologies 1260 Series G2226A Infinity Nano Pump is a low flow pump consisting of two identical pumping units in a single housing.  It generates gradients by high-pressure mixing.  A solvent selection valve provides flexibility in the choice of solvents.

Features include:

• Low pressure metering and high pressure delivery
• Solvent compressibility compensation
• Variable stroke volume
• Column flow measurement and control

Specifications:

• Weight 17 kg (38 lbs)
• Dimensions (height × width × depth) 180 x 345 x 435 mm (7 x 13.5 x 17 inches)
• Line voltage 100 – 240 VAC, ± 10% Wide-ranging capability
• Line frequency 50 or 60 Hz, ± 5%
• Power consumption 180 VA / 75 W / 256 BTU Maximum
• Ambient operating temperature 4 to 55 °C (41 to 131 °F)
• Humidity < 95%, at 25–40 °C (77–104 °F) Non-condensing
• Operating Altitude Up to 2000 m (6562 ft)
• Non-operating altitude Up to 4600 m (15091 ft)
• Ambient non-operating temperature -40–70 °C (-4–158 °F)

Installation service & installation kits available.
