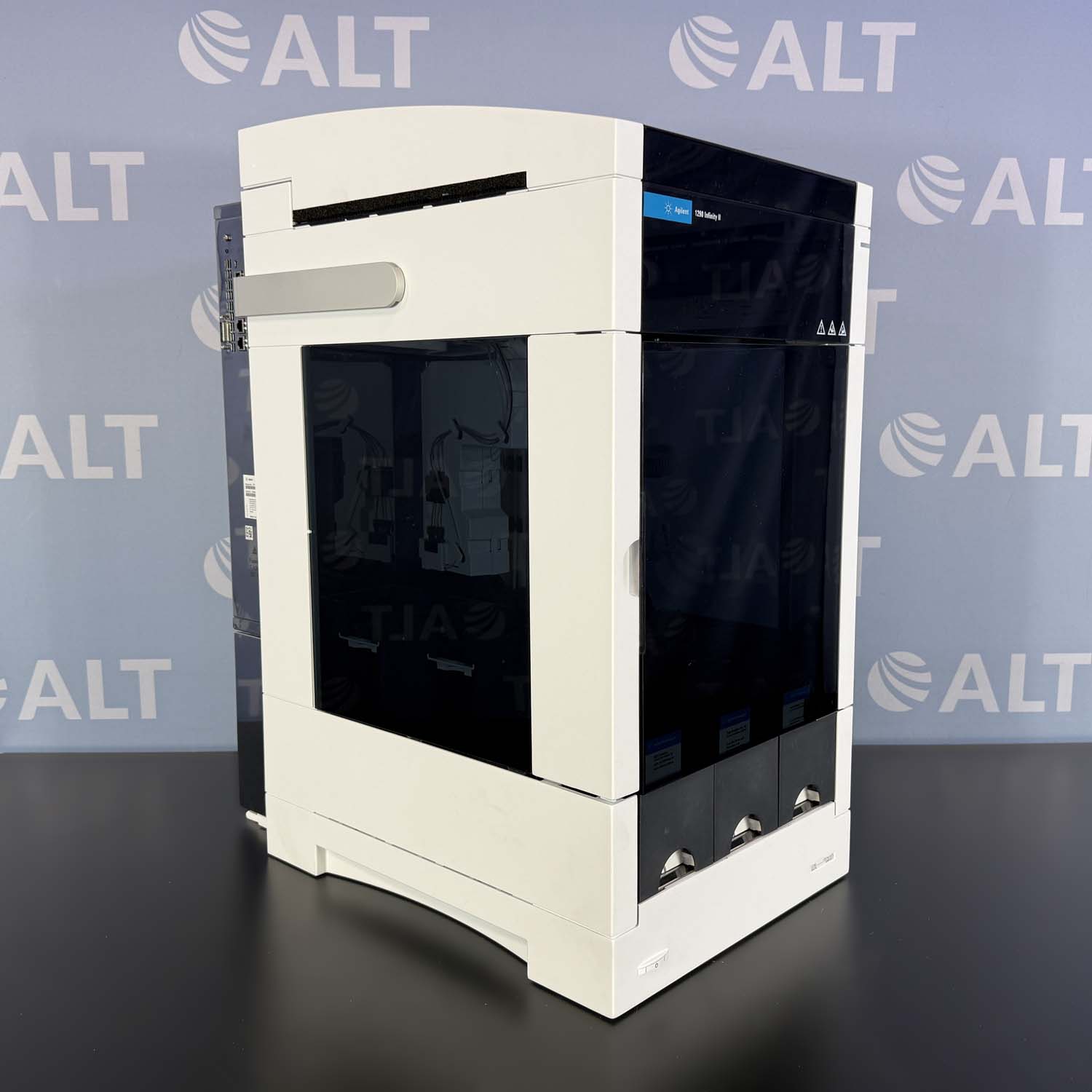

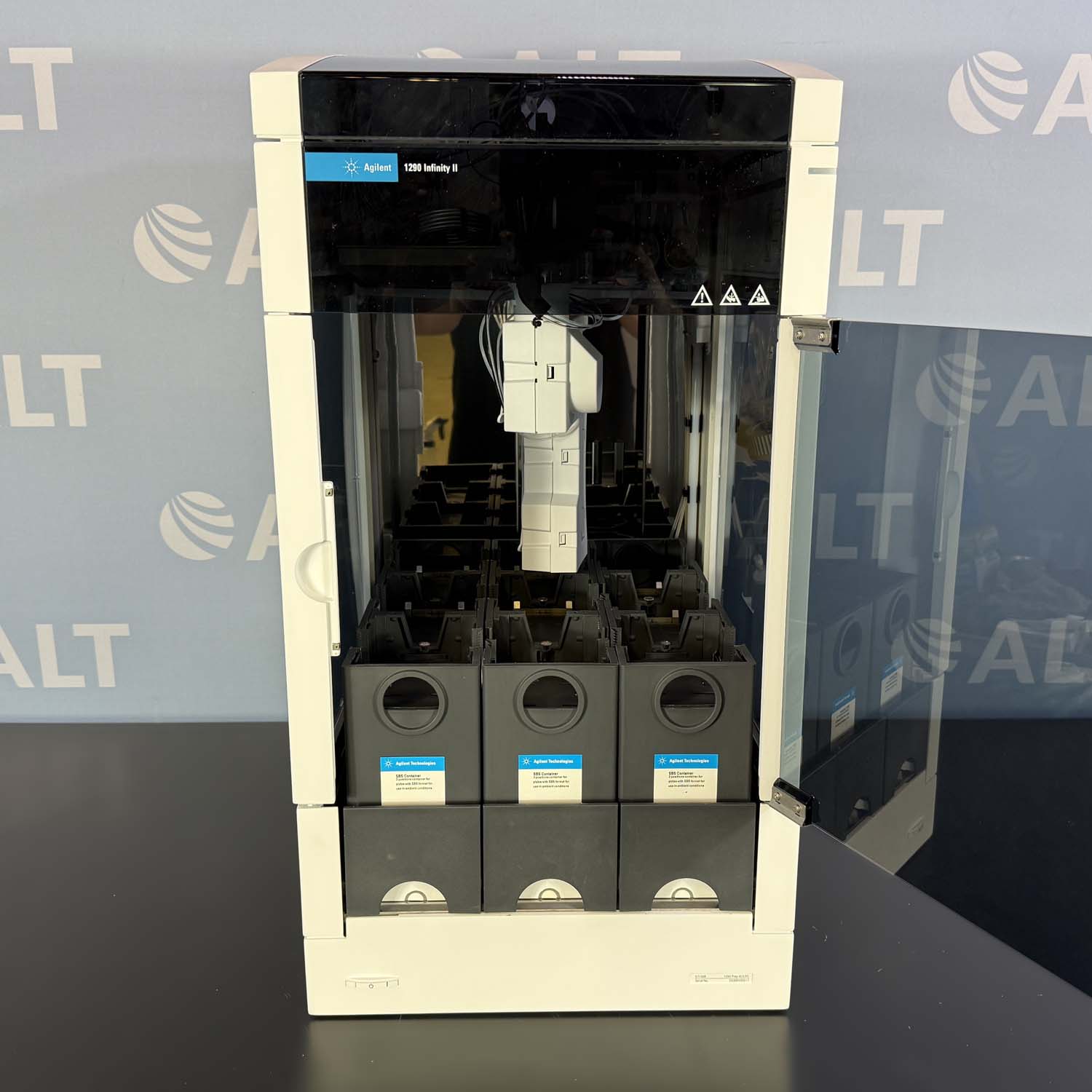

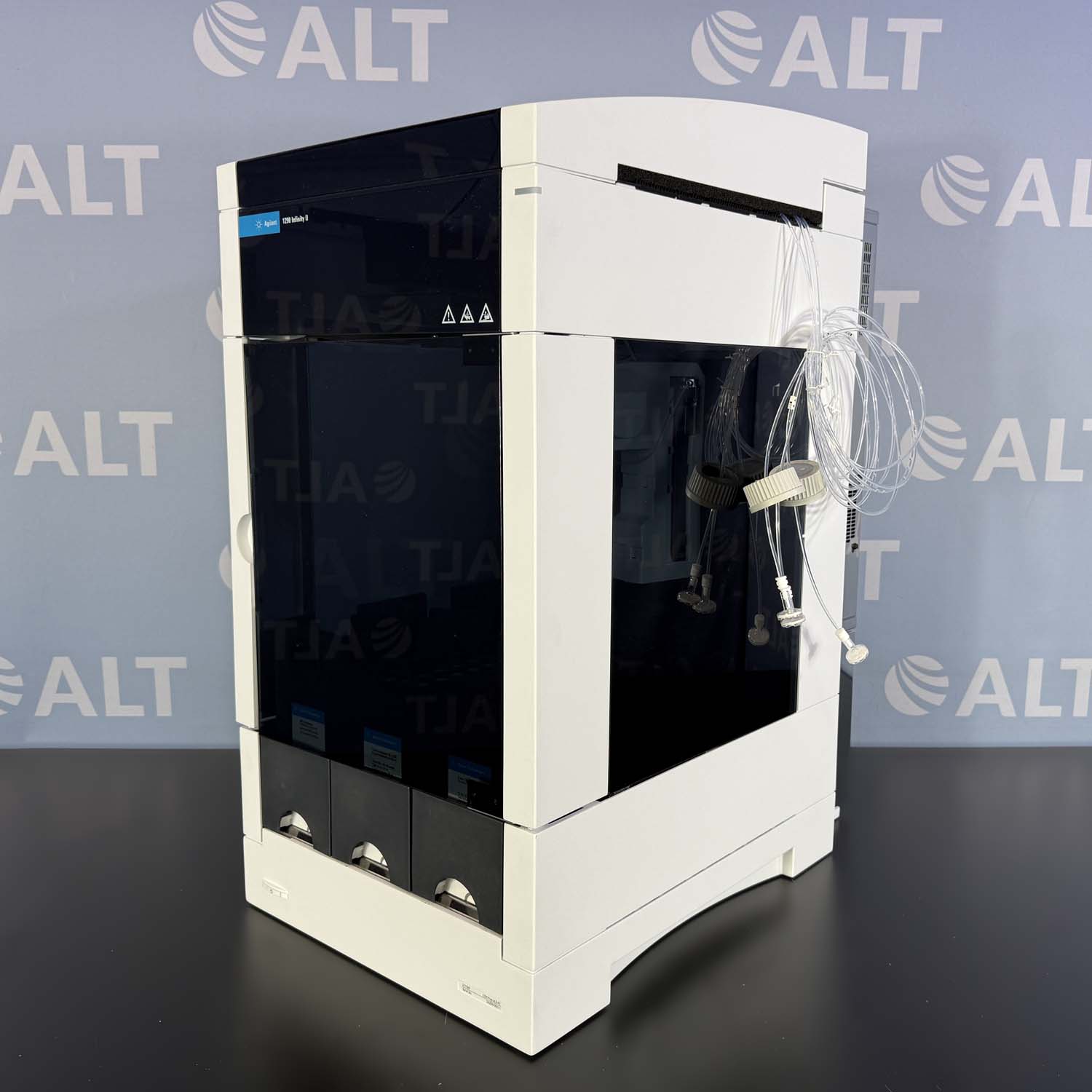

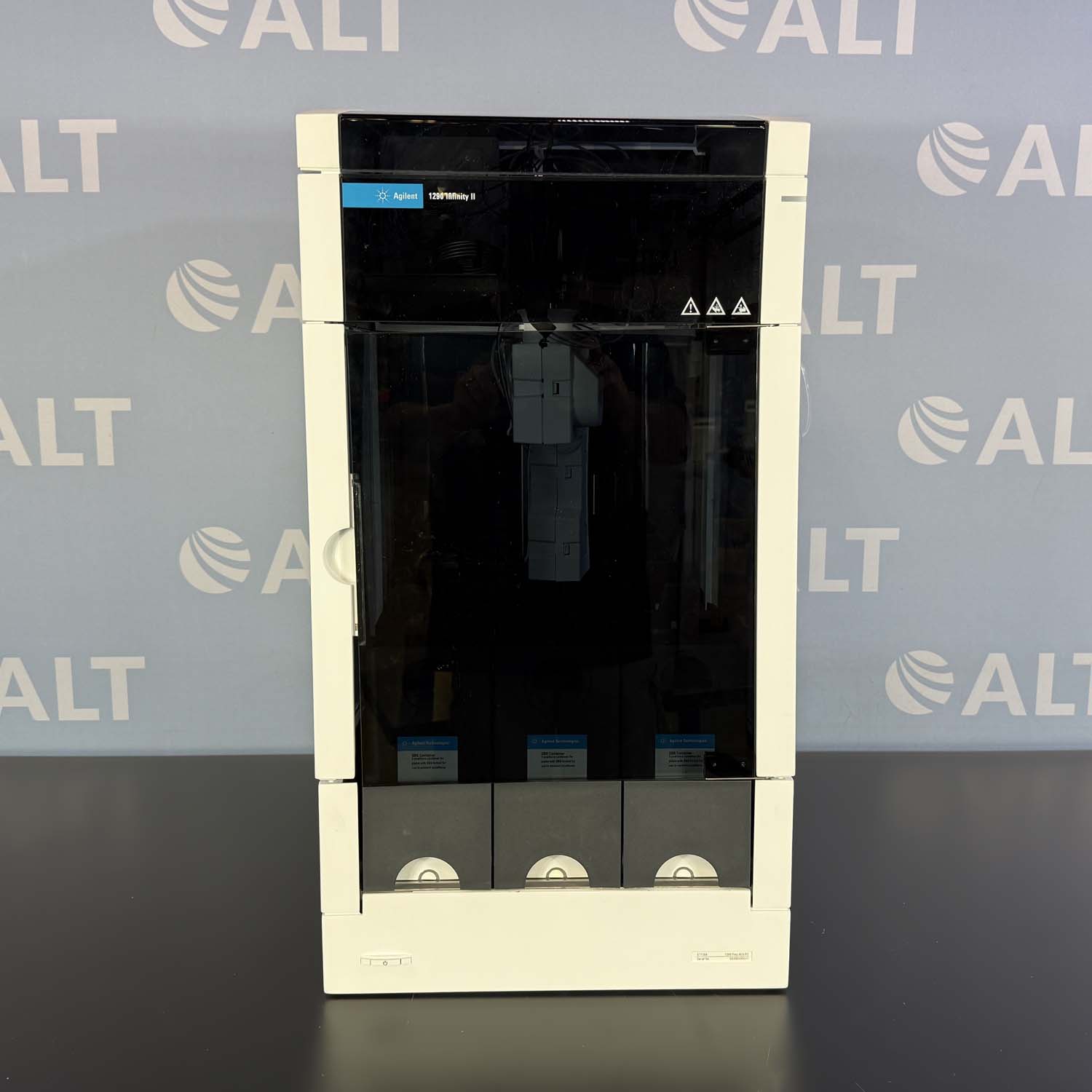

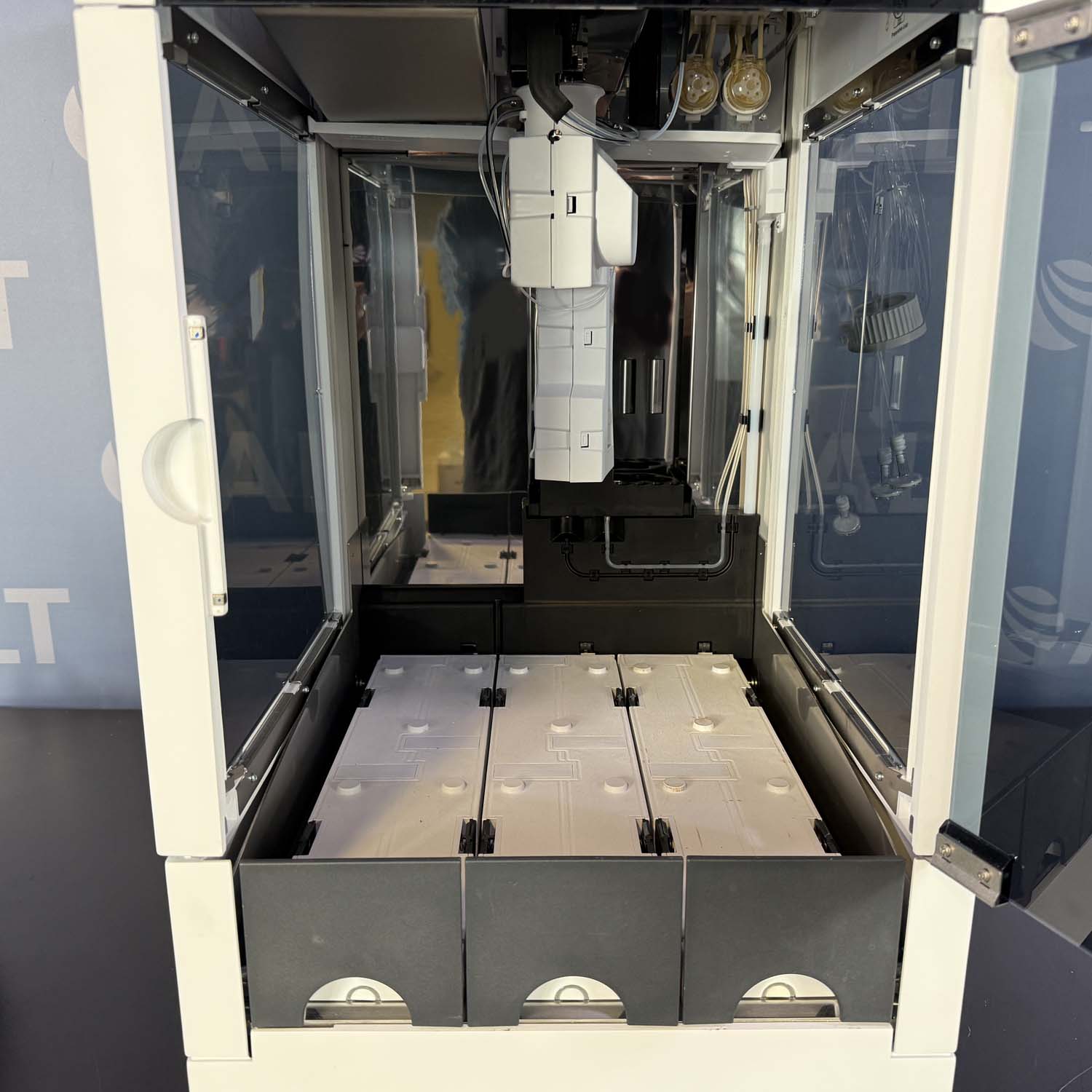

Agilent 1290 Infinity II Prep ALS FC (G7158B)

The Agilent 1290 Infinity II Prep ALS FC (G7158B) is designed for automated, high-capacity management of sample injection and fraction collection in semipreparative and preparative-scale LC purification workflows. The X-Z-theta axis probe uses novel robotic technology to minimize sample carryover during movements between fraction containers. Sample volumes can be injected from microtiter plates, vials, or vessels.

The sampler/collector provides for injection of large volumes and sample loops are available with volumes of 2, 5, 10, 20 and 90 mL. The sampler/collector is equipped with an analytical-to-preparative injector and enables easy handling of a wide variety of collection vessels with a total capacity up to 5.9 liters using 150 x 25 mm (l x od) tubes. Optimized for flow rates up to 200 mL/min, the sampler/collector can be integrated seamlessly with any Agilent solvent delivery module, additional fraction collector, recovery collector, or detector.

Specifications:

Delay volume: Calculated using Lab Advisor. Dead volume in Valve tip appr.
30 µL
Time to move from vessel to vessel: 0.3 seconds
Minimum system flow: 1 mL/min
Maximum system flow: 200 mL/min
Maximum collection volume: 78 mL With 30 x 150 mm (OD x L) tube
Maximum capacity: 432 fractions (Using 12 mm OD tubes); 5.9 L (Using 25 x 150 mm (OD x L) tubes)
Diverter valve: 3/2 valve
Max. pressure: 6 bar (switching)
Drawers: Drawer ambient
Power: 100-240V, 60 Hz
Dimensions: 15.5″ W x 25″ D x 30.8″ H (39.3 x 62.2 x 78.1 cm)
Weight: 70.5 lbs (32 kg)
