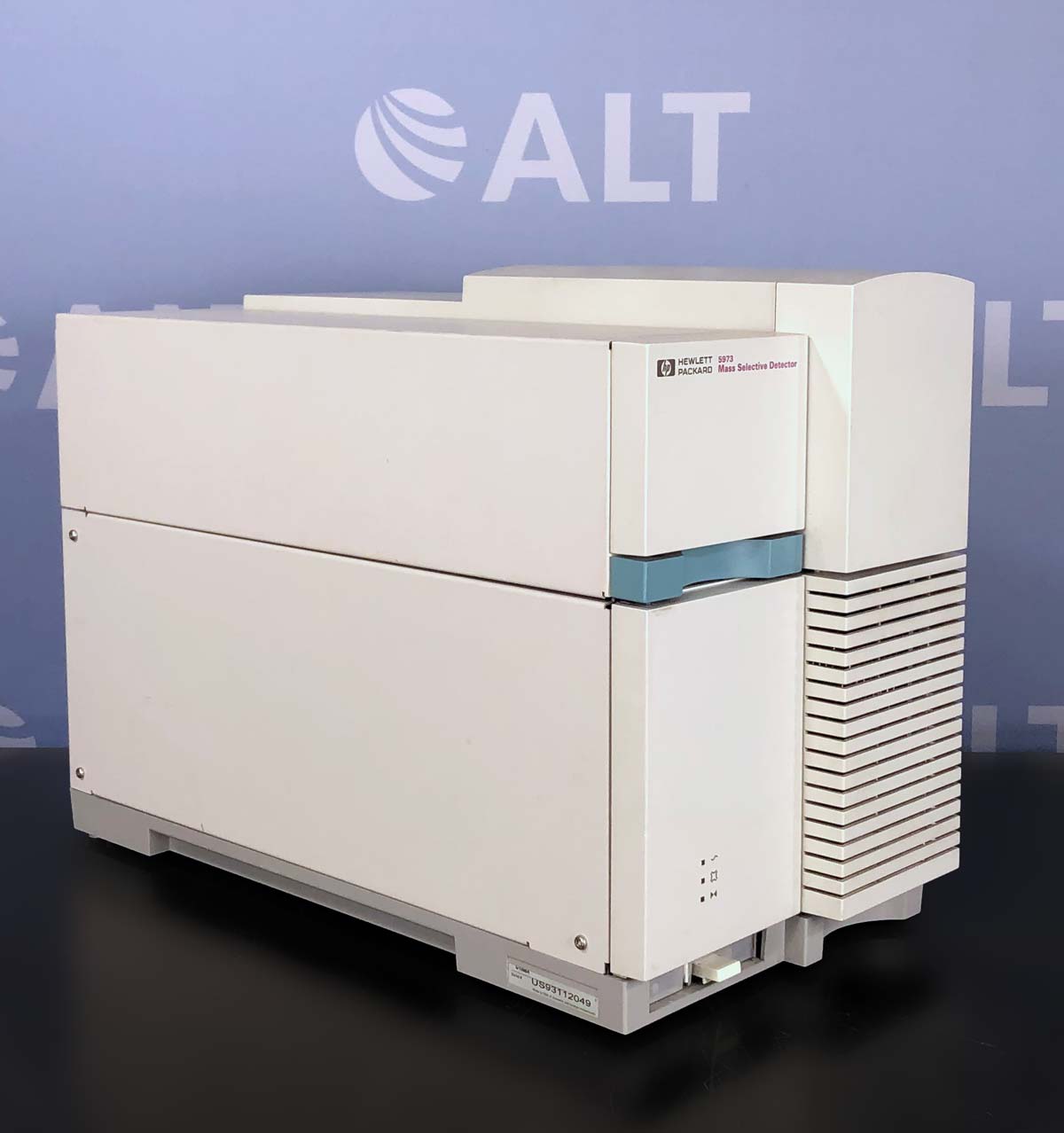

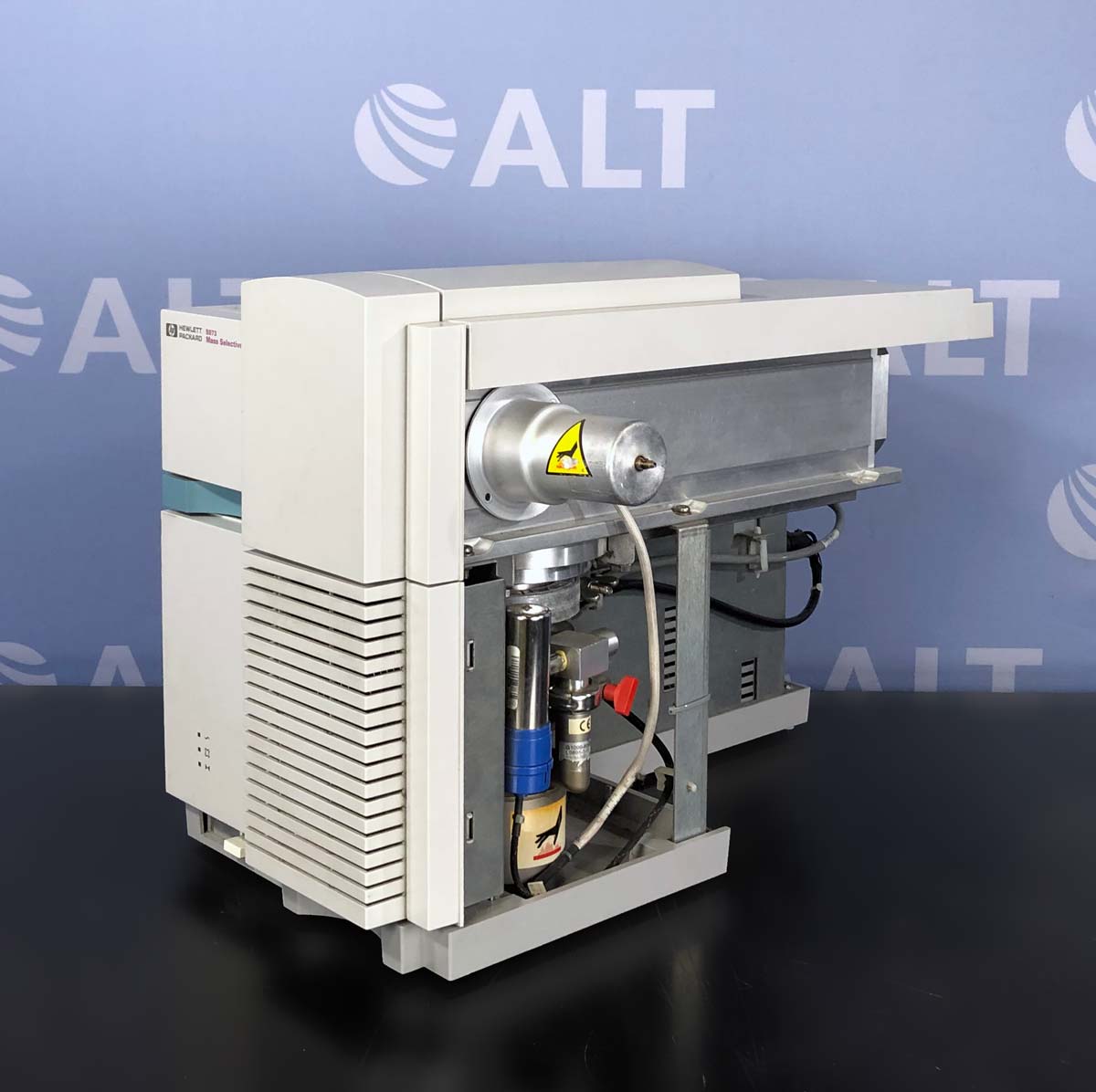

Agilent 5973 (G1098A) Network Mass Selective Detector

The HP/Agilent 5973 (G1098A) Network Mass Selective Detector is used together with 6890 Plus Series Gas Chromatograph to detect gas chromatography

Specifications:

• Mass Range: 1.6-800amu in 0.1amu steps
• Mass Resolution: throughout the mass range
• Scan Speed: up to 5,200 amu/second with 0.1 amu scan step size, with 8 sampling rates
• Dynamic range: 106
• Mass Axis Stability: +_0.15 amu over 12 hours
• SIM (Single ion mobility) capability: Up to 50 groups of masses, with 30 masses per group
• SIM dwell time: between 9-9,999 mses per mass, selected by user
• Ionization energy: over the range 0-315uA
• Ion source temperature: up to 250oC for EI and up to 3000C for CI
• Quadrupole temperature: up to 2000C
• Interface temperature: up to 3500C
• Dimensions: 16.53″ H x 10.23″ W x 25.59″ D (42 x 26 x 65 cm)
• Weight: 57.32 lbs (26 kg)

Please note: system includes vacuum pump
