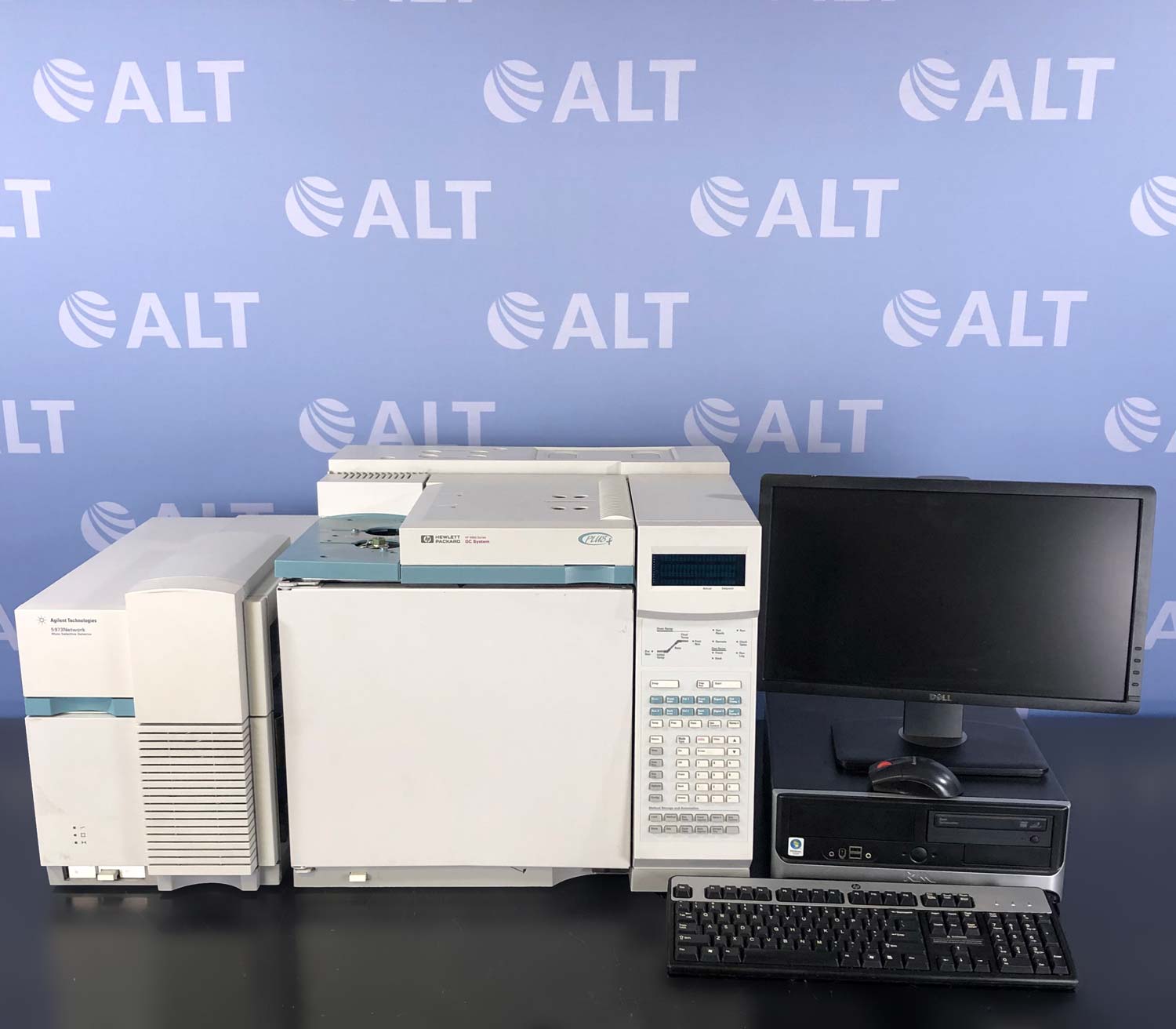

Agilent 6890N Plus (G1530A) GC and 5973 (G1098A) Mass Selective Detector

The HP Agilent 6890 (G1530A) Plus Gas Chromatograph GC is designed for an array of applications including: hydrocarbon processing, food safety, pesticide determination, chemical analysis, biodiesel, drug screening, toxicology, environmental and law enforcement.

The HP 6890 Series gas chromatograph system delivers unprecedented levels of performance, convenience, productivity, and eases regulatory compliance. The HP 6890 series GC features electronic pneumatics control of all gas pressures and flows. Onboard sensors automatically compensate for ambient temperature changes and barometric pressure differences to routinely achieve more accurate and reproducible results.

By providing stable results, EPC reduces recalibration frequency and improves laboratory productivity. It also decreases system operating costs through gas savings and faster setup time, and reduces equilibration time after changing setpoints. A run log documents any deviation from method setpoints. Please contact us for complete HP/Agilent 6890A Plus details.

Specifications:

• Dimensions: 19.7″ H x 26.8″ W x 21.6″ D (50 x 58 x 54 cm)
• Weight (average): 108 lb (49 kg)
• Ambient Operating Temperature: 15°C to 35°C
• Ambient Operating Humidity: 5-95%
• Storage Extremes: -40°C to 65°
• Line Voltage Requirements: ±5% of nominal
• Column Oven Dimensions: 11″ H x 12.2″ W x 6.3″ D (28 x 31 x 16 cm)
• Operating temperature: 4°C above ambient to 450°C
• Maximum run time: 120°C/min

The HP/Agilent 5973 (G1098A) Network Mass Selective Detector is used together with 6890 Plus Series Gas Chromatograph to detect gas chromatography

Specifications:

• Mass Range: 1.6-800amu in 0.1amu steps
• Mass Resolution: throughout the mass range
• Scan Speed: up to 5,200 amu/second with 0.1 amu scan step size, with 8 sampling rates
• Dynamic range: 106
• Mass Axis Stability: +_0.15 amu over 12 hours
• SIM (Single ion mobility) capability: Up to 50 groups of masses, with 30 masses per group
• SIM dwell time: between 9-9,999 mses per mass, selected by user
• Ionization energy: over the range 0-315uA
• Ion source temperature: up to 250oC for EI and up to 3000C for CI
• Quadrupole temperature: up to 2000C
• Interface temperature: up to 3500C
• Dimensions: 16.53″ H x 10.23″ W x 25.59″ D (42 x 26 x 65 cm)
• Weight: 57.32 lbs (26 kg)

Please note: system includes vacuum pump
