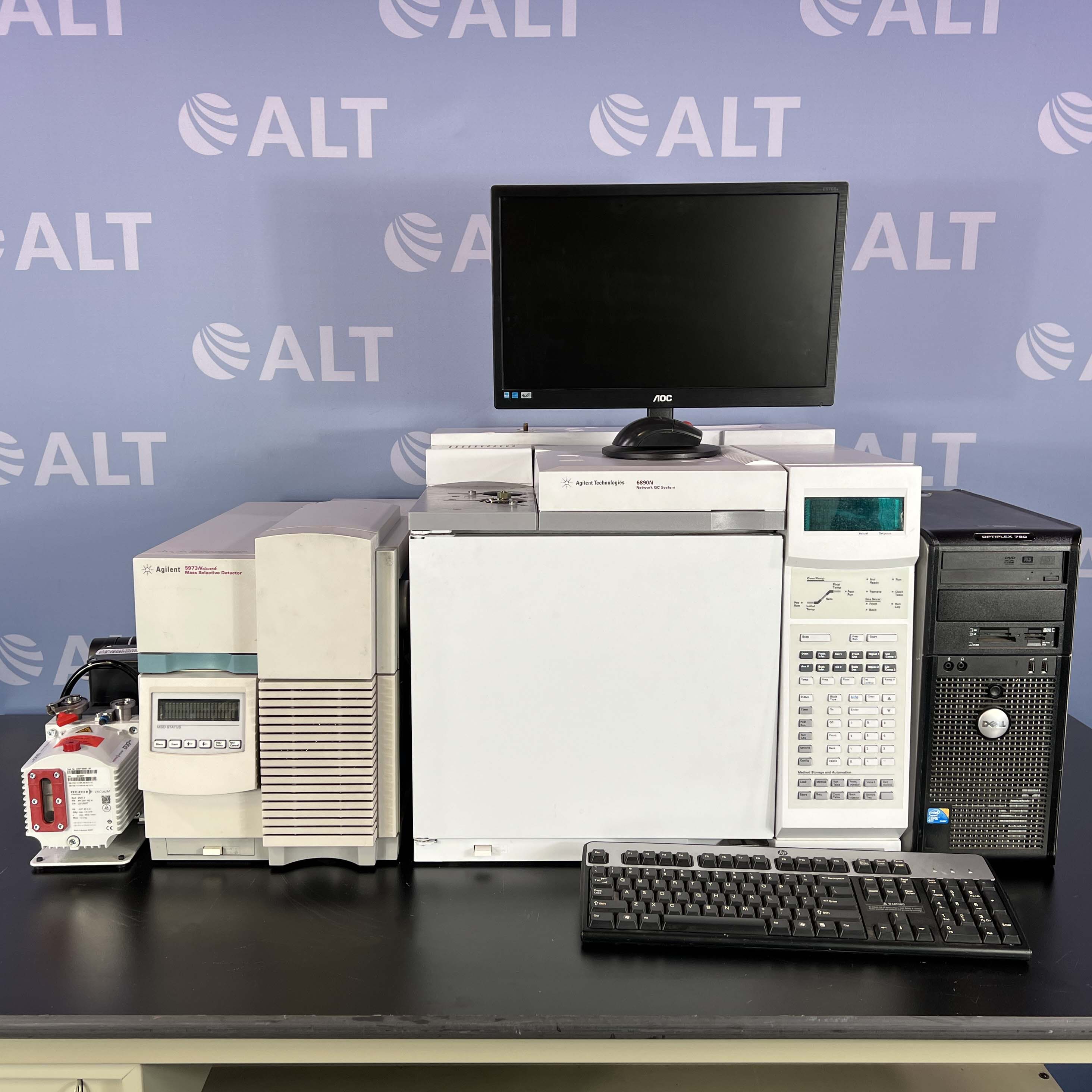

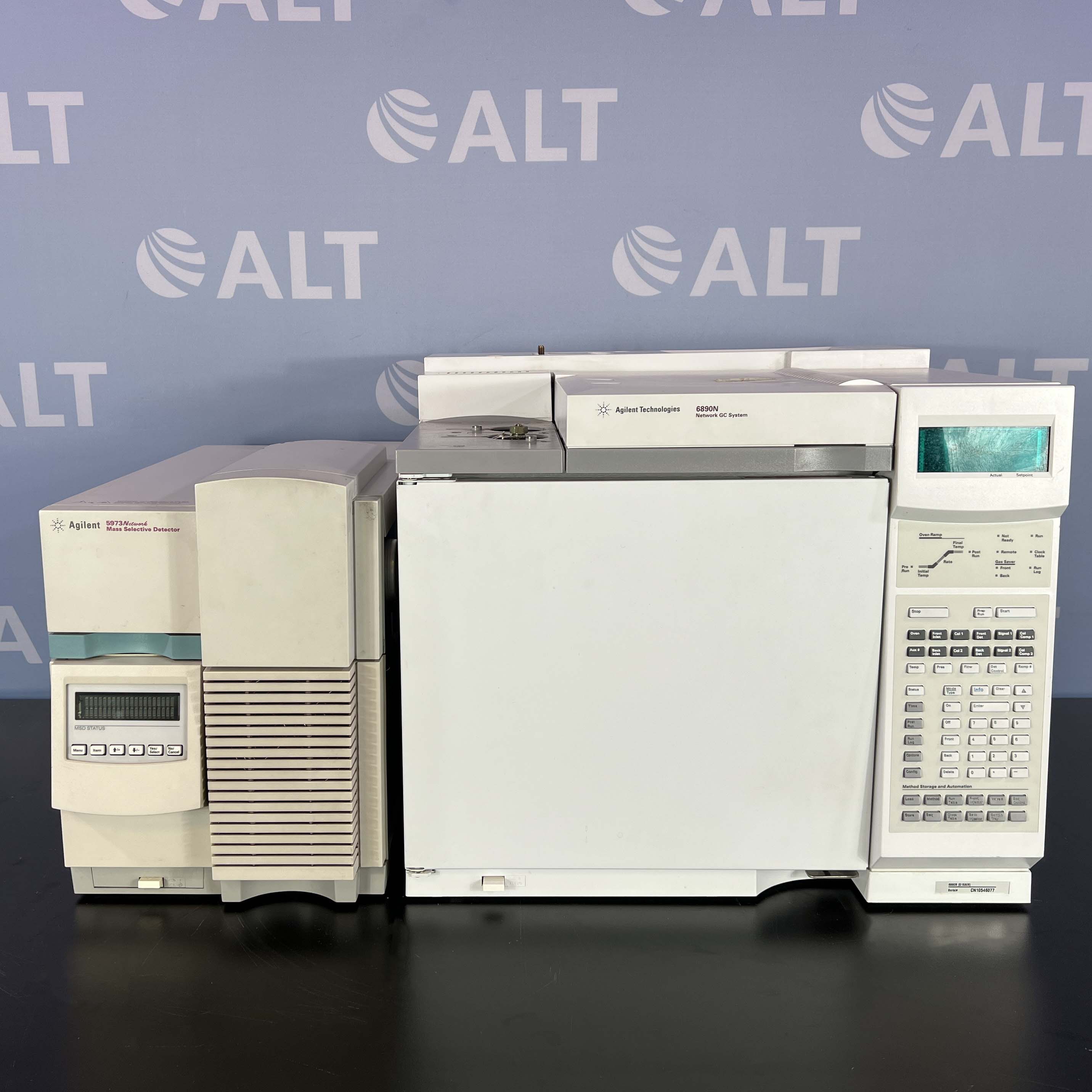

Agilent 6890N with 5973N MSD
ITEM: 32719 Out of Stock
Price: $0.00
Your Trusted Source for Used Lab Equipment
Free 90 Day Warranty
Up to 3 Year Warranty Upgrade Available
Tested & Refurbished Prior to Shipping
Out of stock
The Agilent 6890N with 5973N MSD is a gas chromatography system delivering unprecedented levels of performance, convenience, productivity to ease regulatory compliance. It features electronic pneumatics control of all gas pressures and flows. Onboard sensors automatically compensate for ambient temperature changes and barometric pressure differences to routinely achieve more accurate and reproducible results.
The Agilent 6890N with 5973N MSD is designed for an array of applications including: hydrocarbon processing, food safety, pesticide determination, chemical analysis, biodiesel, drug screening, toxicology, environmental and law enforcement.
By providing stable results, EPC reduces recalibration frequency and improves laboratory productivity. It also decreases system operating costs through gas savings and faster setup time, and reduces equilibration time after changing setpoints. A run log documents any deviation from method setpoints.
| Agilent 6890N Specifications: | |
| Dimensions | 26.8″ W x 21.6″ D x 19.7″ H(58 x 54 x 50 cm) |
| Weight (average) | 108 lbs. (49 kg.) |
| Ambient Operating Temperature | 15°C to 35°C |
| Ambient Operating Humidity | 5-95% |
| Storage Extremes | -40°C to 65°C |
| Line Voltage Requirements | ±5% of nominal |

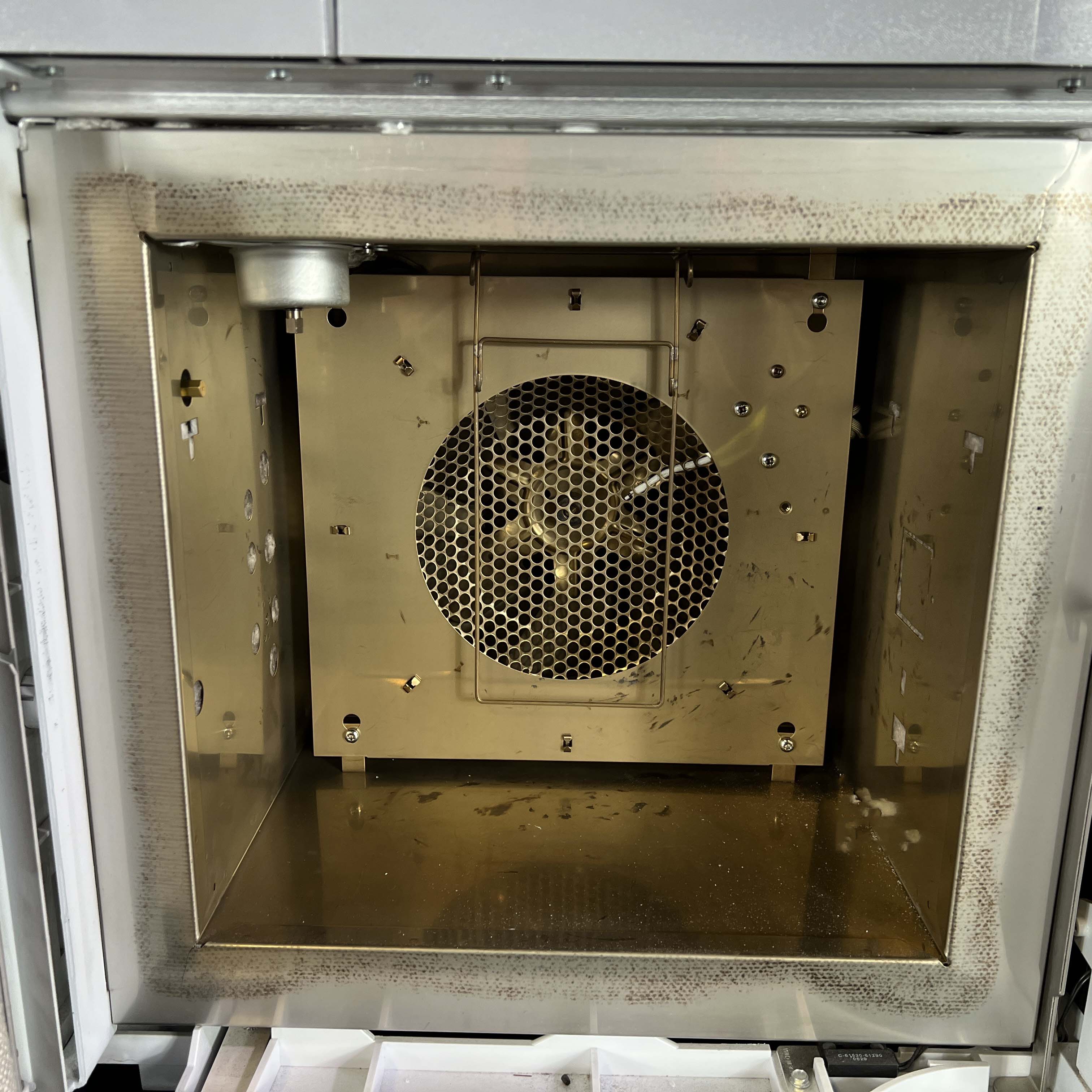

| Column Oven Dimensions | 11″ H x 12.2″ W x 6.3″ D (28 x 31 x 16 cm) |
| Operating temperature | 4°C above ambient to 450°C |
| Maximum run time | 120°C/min |
| Agilent 5973N MSD Specifications: | |
| Mass Range | 1.6-800 amu in 0.1 amu steps |
| Mass Resolution | Throughout the mass range |
| Scan Speed | Up to 5,200 amu/second with 0.1 amu scan step size, with 8 sampling rates |
| Dynamic Range | 106 |
| Mass Axis Stability | ±0.15 amu over 12 hours |
| SIM (Single Ion Mobility) Capability | Up to 50 groups of masses, with 30 masses per group |
| SIM Dwell Time | Between 9-9,999 mses per mass, selected by user |
| Ionization Energy | Over the range 0-315uA |
| Ion Source Temperature | Up to 250°C for EI and up to 300°C for CI |
| Quadrupole Temperature | Up to 200°C |
| Interface Temperature | Up to 350°C |
| Dimensions | 10.23″ W x 25.59″ D x 16.53″ H inches (26 x 65 x 42 cm) |
| Weight | 57.32 lbs (26 kg) |
Please note: system includes vacuum pump
