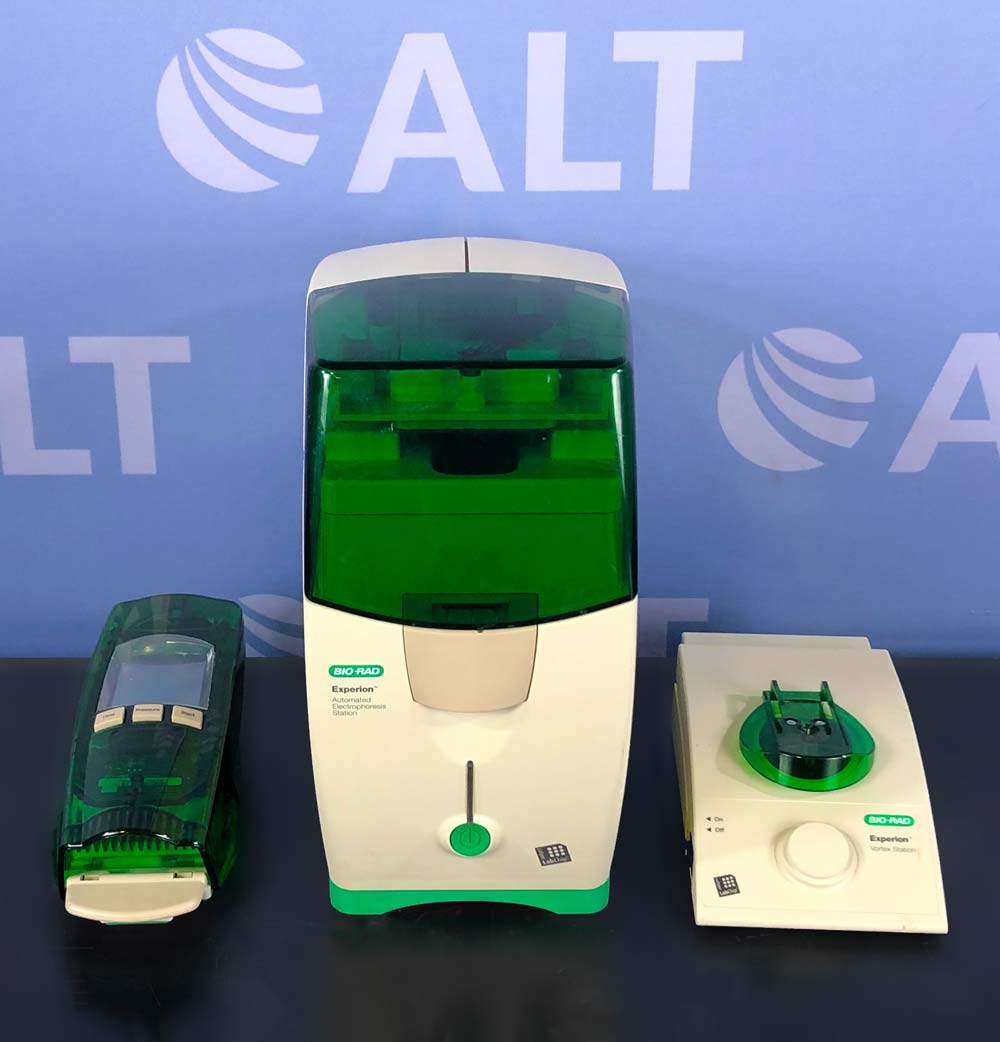

Bio-Rad Experion Automated Electrophoresis System

The Bio Rad Experion Automated Electrophoresis System for nucleic acid and protein analysis incorporating LabChip technology performing multiple electrophoresis steps in one.

The Experion is used for protein, DNA, and RNA analysis. It integrates separation, data analysis, and detection all with a single platform.

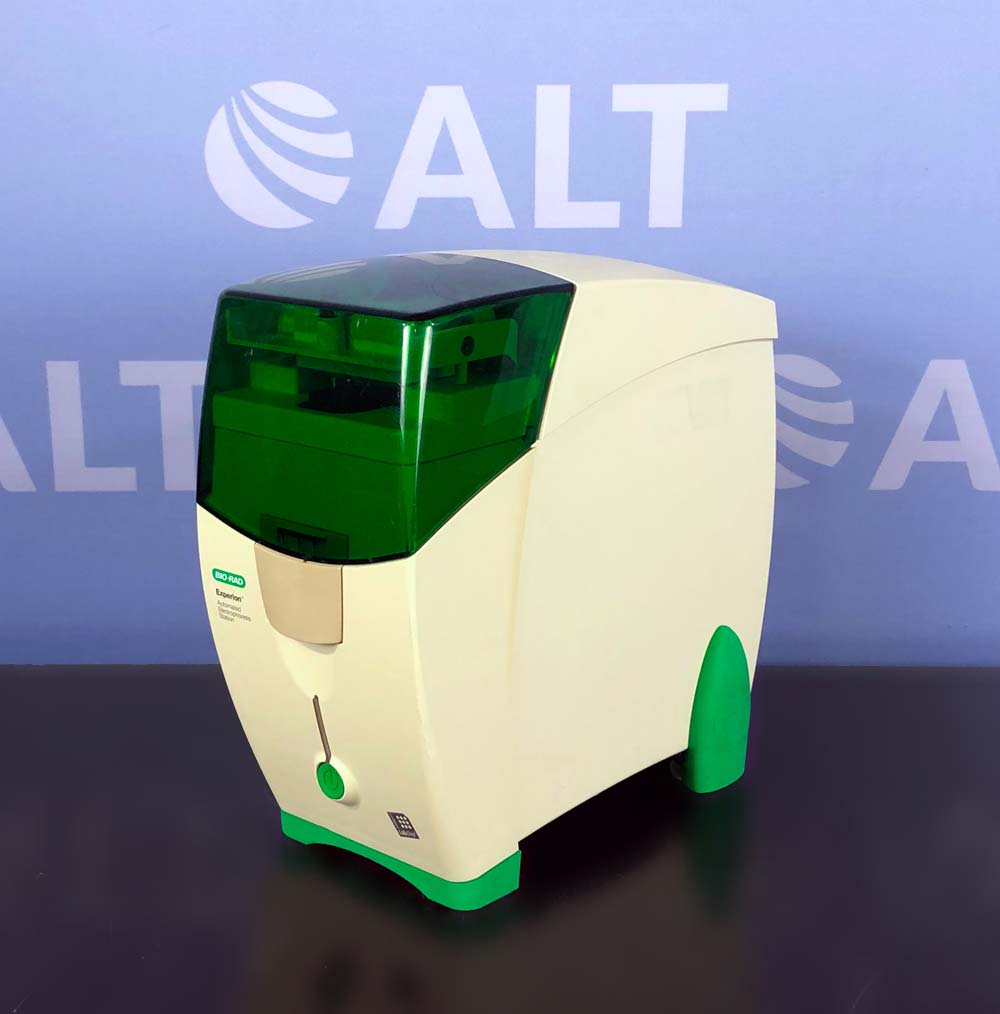

Specifications, Electrophoresis Station:

• Casing: ABS, polycarbonate (gray)
• Lid: Polycarbonate (translucent green)
• Open: latch Polycarbonate (khaki)
• Rubber feet: Thermoplastic rubber
• Power button: ABS, polycarbonate (green)
• Power supply: 100–240 VAC, 50/60 Hz, 31 VA
• Power indicator: LED
• Electrode wires: 90% Platinum, 10% iridium alloy, 0.5 mm diameter
• Laser: Photo diode, 635 nm excitation
• Laser: Safety Class 1 product (nonhazardous)
• Detector: Photoemission, 685 nm emission
• Voltage limit: 2,200 V (when multiple channels are driven)
• Operating conditions: 15–40°C, 0–90% humidity
• Computer connection: USB2 cable
• Weight: 10 lbs (4.58 kg)

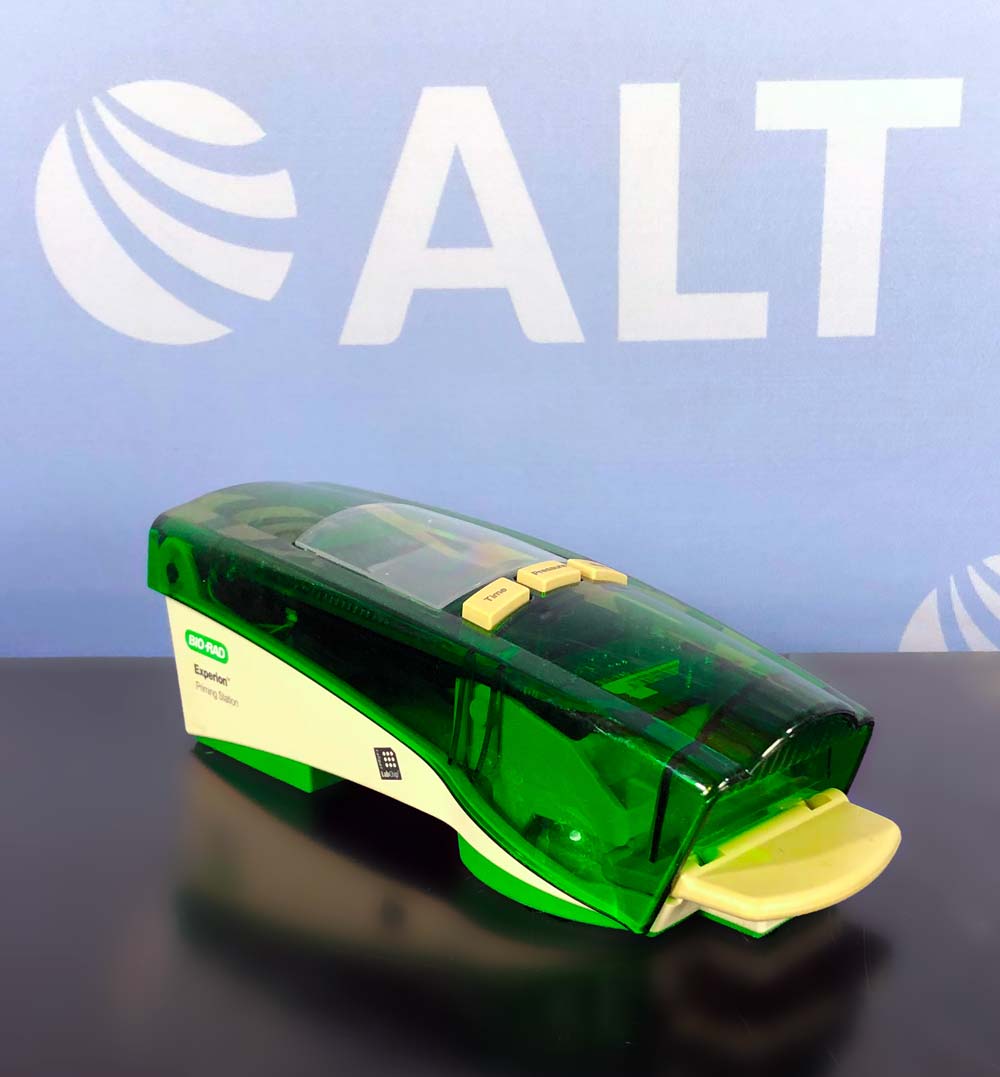

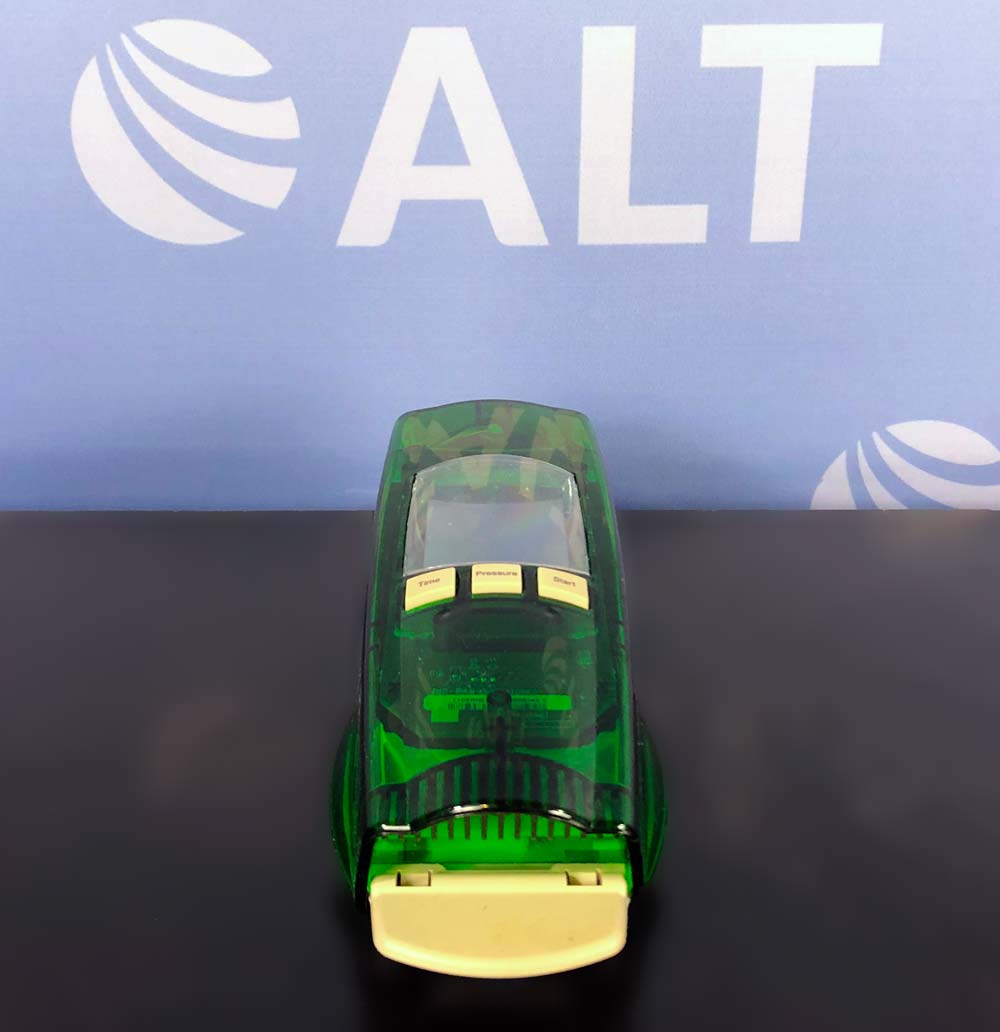

Specifications for Priming Station:

• Base casing Glass-filled polycarbonate (gray)
• Lid: Polycarbonate (translucent green)
• Open latch: Polycarbonate (khaki)
• Rubber feet: Thermoplastic rubber
• Priming seal: Silicone rubber
• Power supply: 100–240 VAC, 50/60 Hz, 31 VA
• Pressure range: 50–125 psi
• Time range: 30–150 sec
• Display: LCD
• Weight: 3 lbs (1.36 kg)

Specifications, Vortex Station:

• Casing: Zinc die cast
• Paint on casing: Polyester powder coating (gray)
• Front panel: Polyester
• Vortex adapter: Polycarbonate (green)
• Power adapter: Input 100–240 VAC, 50/60 Hz, Output 24 VDC, 800 mA
• Time setting: 60 sec
• Eccentric orbital: 4.5 mm
• Weight: 6 lb. 6 oz. (2.9 kg)
