Your Trusted Source for Used Lab Equipment

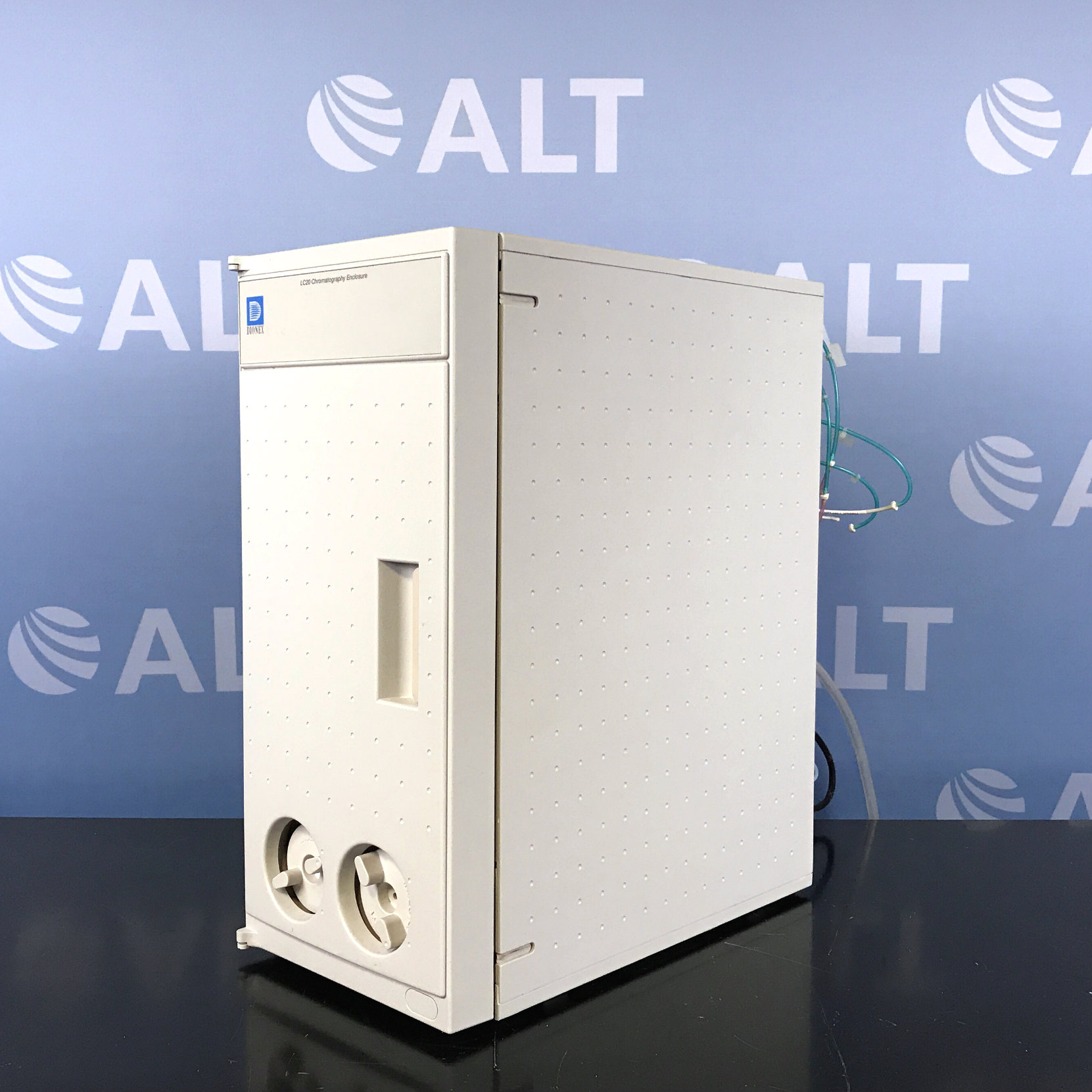

Features of the Dionex LC20-1 Chromatography Enclosure include:

- Ambient Temperature: 4 °C to 75 °C (40 °F to 167 °F)
- Humidity: 5-95% relative (non-condensing)
- Air Pressure: 400 to 800 KPa (60 to 120) psi for the Rheodyne injection valve and column select valve; Use laboratory-quality air or regulated compressed air, nitrogen, or helium.
- Operating Pressure: 35 MPa (5000 psi) maximum liquid path (tubing, valves, columns, etc.)
- Clearance required behind the module:6 cm
- Does not require power. Internal components are operated by the GP50 pump
- Weight: 12 kg (25 lbs.)
- Dimensions (W x H x D): 8.9 x 20.8 x 20.4 in. (22.5 x 50 x 49 cm)
