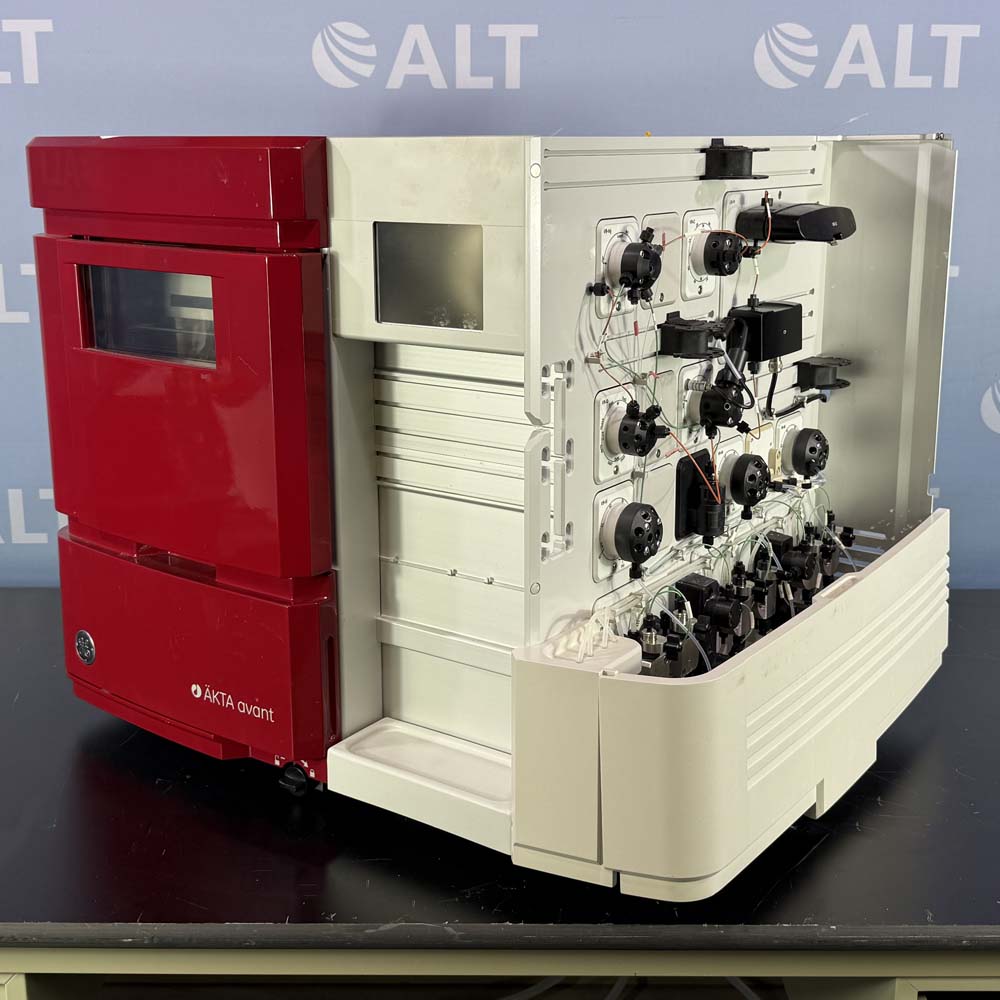

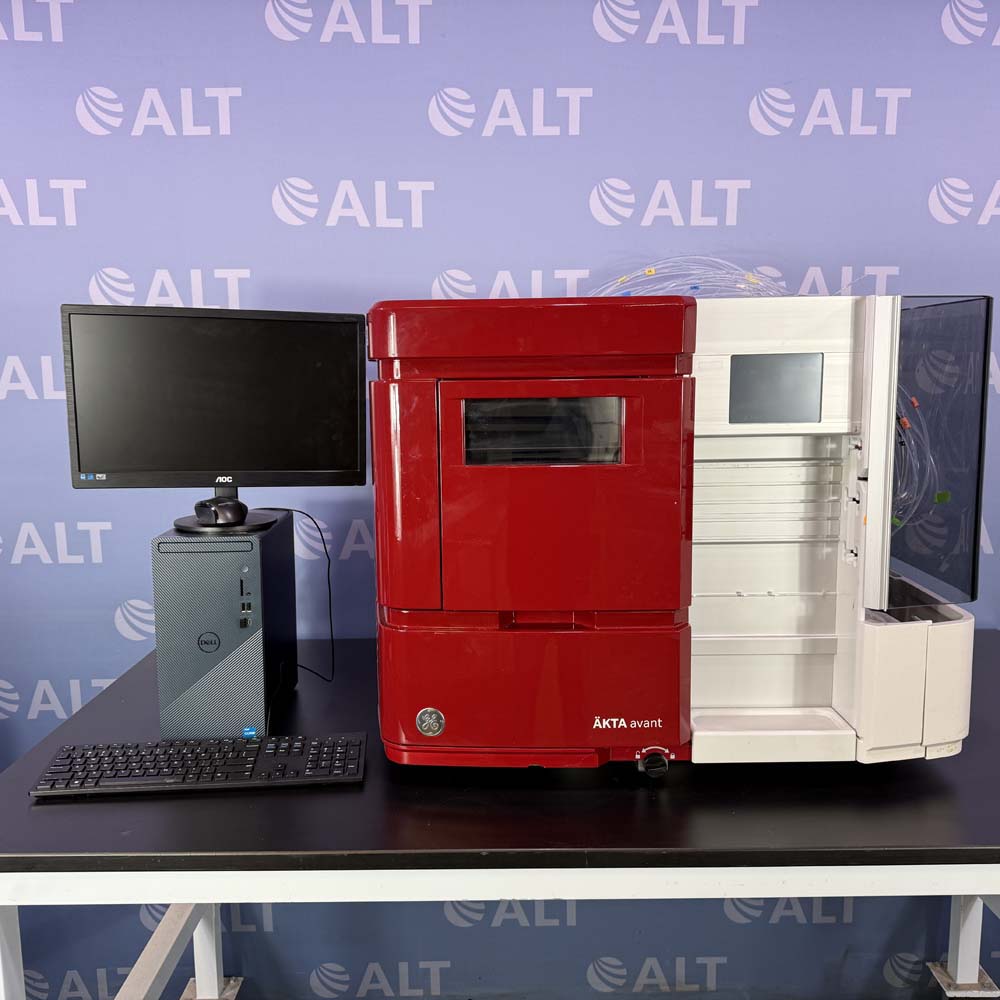

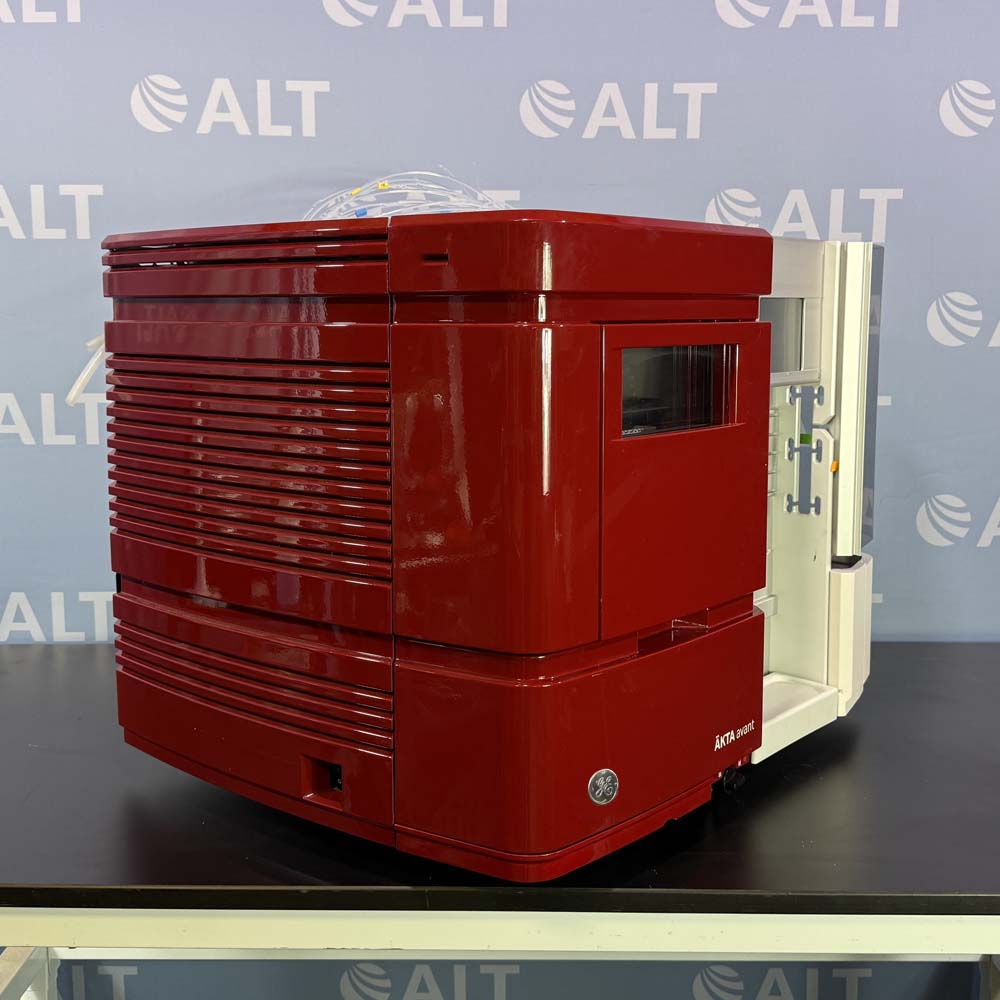

The AKTA Avant 150 is a preparative chromatography system designed for fast and secure development of scalable methods and processes.

Unit features short runtimes, which are important manufacturing; high flow rates and is suited for use with high-flow BioProcess chromatography resins from the MabSelect and Capto range.

AKTA is the preferred choice for many laboratories conducting process development.

Applications supported: Affinity Chromatography, Gel Filtration/ Size Exclusion Chromatography, Ion Exchange Chromatography and Hydrophobic Interaction Chromatography.



Specifications:

• Flow rate: 0.01 ml/min-150 ml/min
• Operating pressure max.: 5 MPa (725 psi)
• Operating pressure (sample pump) max.: 5 MPa (725 psi)
• Tubing i.d. (flow path): 0.75 mm
• Multiple wavelength detection: up to 3 wavelengths
• UV wavelength: 190-700 nm
• Flow cell path length: 2 mm (optional 10 mm and 0.5 mm)
• pH monitoring: 0–14
• Multiple sample injection: up to 7 samples
• Autosampler injection: No
• Automatic buffer preparation: BufferPro
• Buffer selection: 18 buffer inlets, option up to 46
• Relative humidity: 20%-95% (non condensing)
• pH Stability Long Term: 1-13
• pH Stability Short Term: 1–14
• Viscosity: 0.35 to 5 cP (system pump), 0.7 to 10 cP (sample pump)
• Width: 34" (86 cm)
• Height: 26" (66 cm)
• Depth: 28" (71 cm)
• Voltage: 100-120/220-240 VAC
• Power consumption: 800
• VA Protection class: IP 20
• Pump type: Piston pump, metering type
• Safety certifications: 2006/42/EC (MD), 2004/108/EC (EMC), 1999/5/EC (R&TTE)

The AKTA Avant was introduced in 2009 and replaces the AKTA Explorer model.
