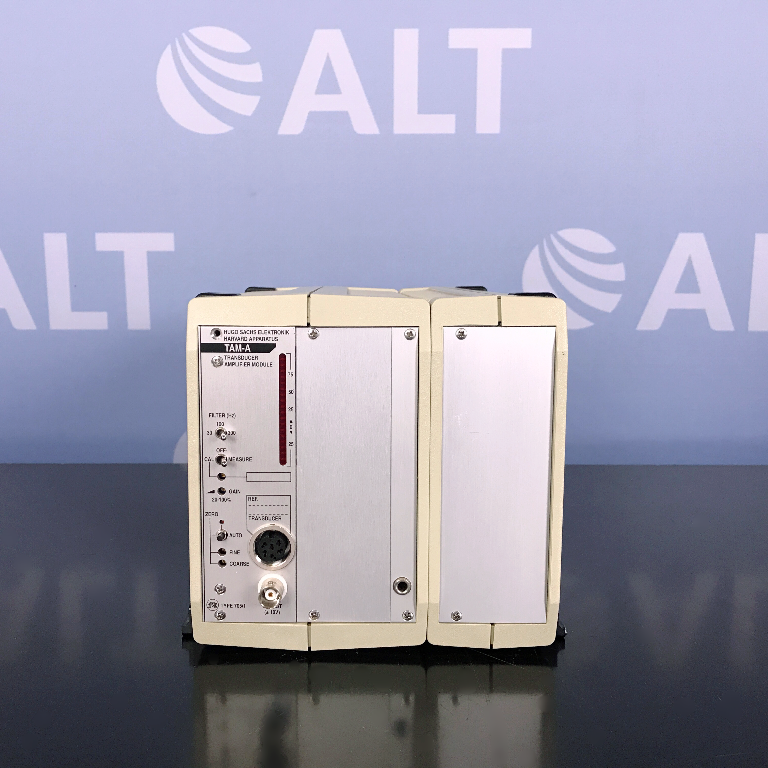

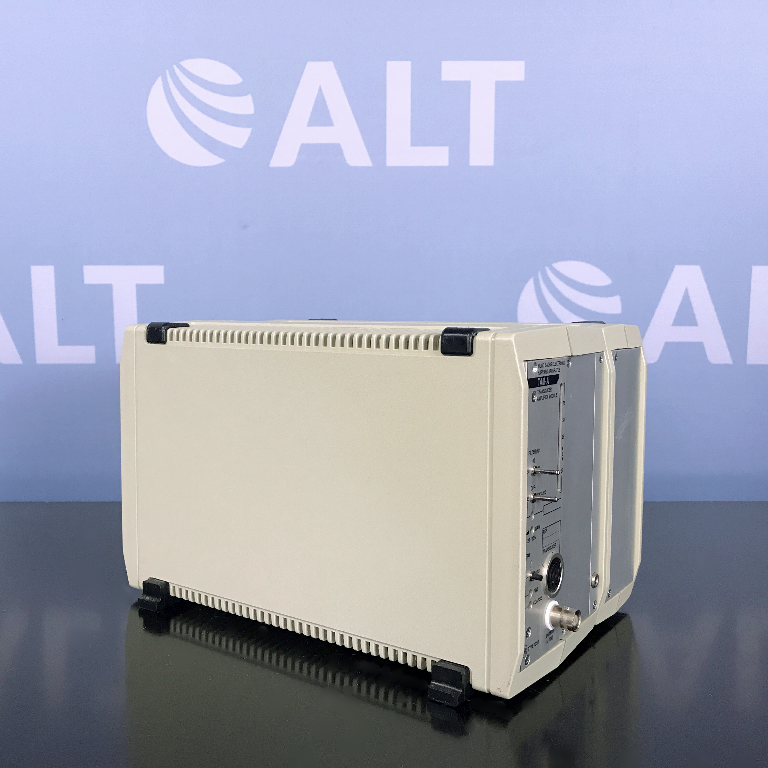

The housing series PLUGSYS MiniCase Type 609 is intended as case and power supply for PLUGSYS measuring and computing amplifiers. The small housing MiniCase is a low-cost and space-saving alternative for 1 or 2 modules and allows PLUGSYS measuring and computing amplifiers to be used as conventional stand-alone units.
Unlike the PLUGSYS housings Type 601 and 603, the MiniCase has no system bus as feed-in for power supply and as internal signal link between the individual modules.
|Dimensions||6.3" W x 9.8" D x 6.3" H (16 x 25 x 16 cm)|
|Housing Construction||ABS plastic, flame-resistant to UL94VO, color RAL7032 (stone gray), with ventilation slots at sides|
|Power Supply||85 to 264 VAC (40 Watts), output voltage +5 VDC (5 A) and|
|Socket Combination||3-pin IEC mains with fuse and mains switch on back of housing|
|Weight||3.1 lbs. (1.4 kg)|
