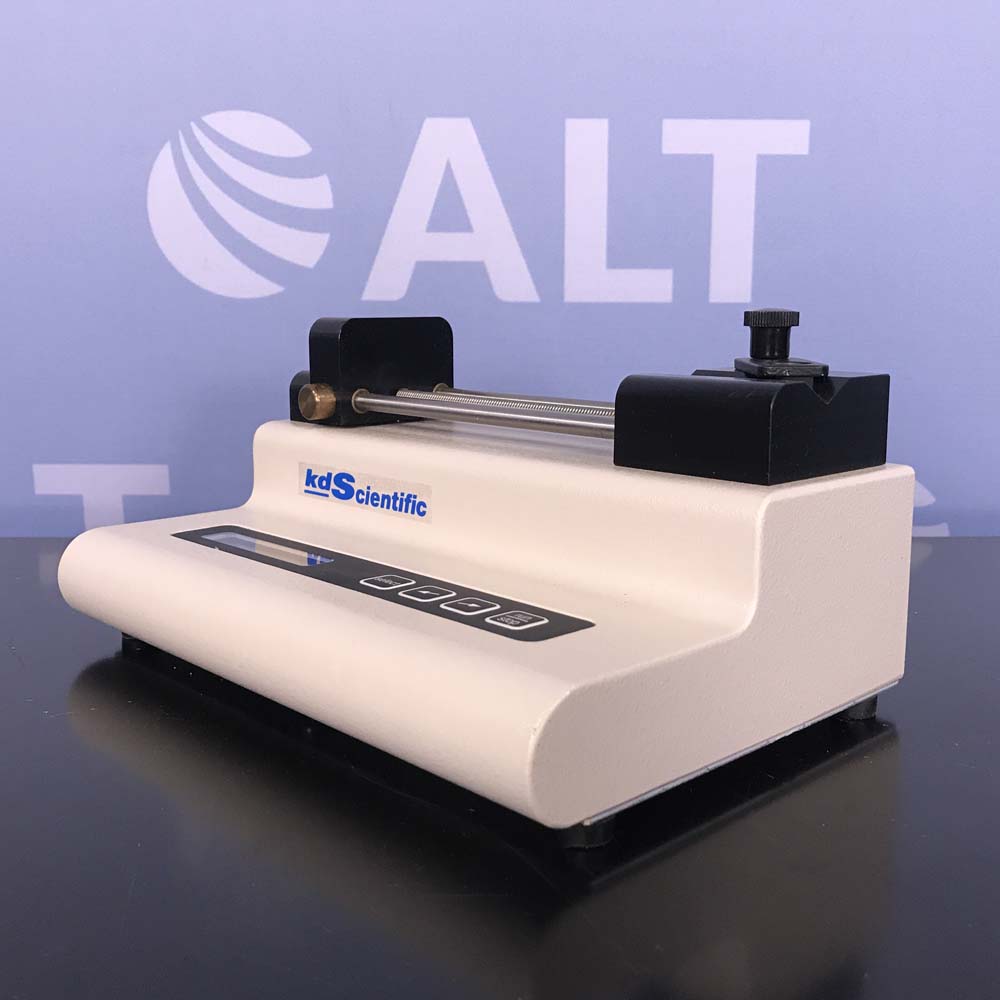

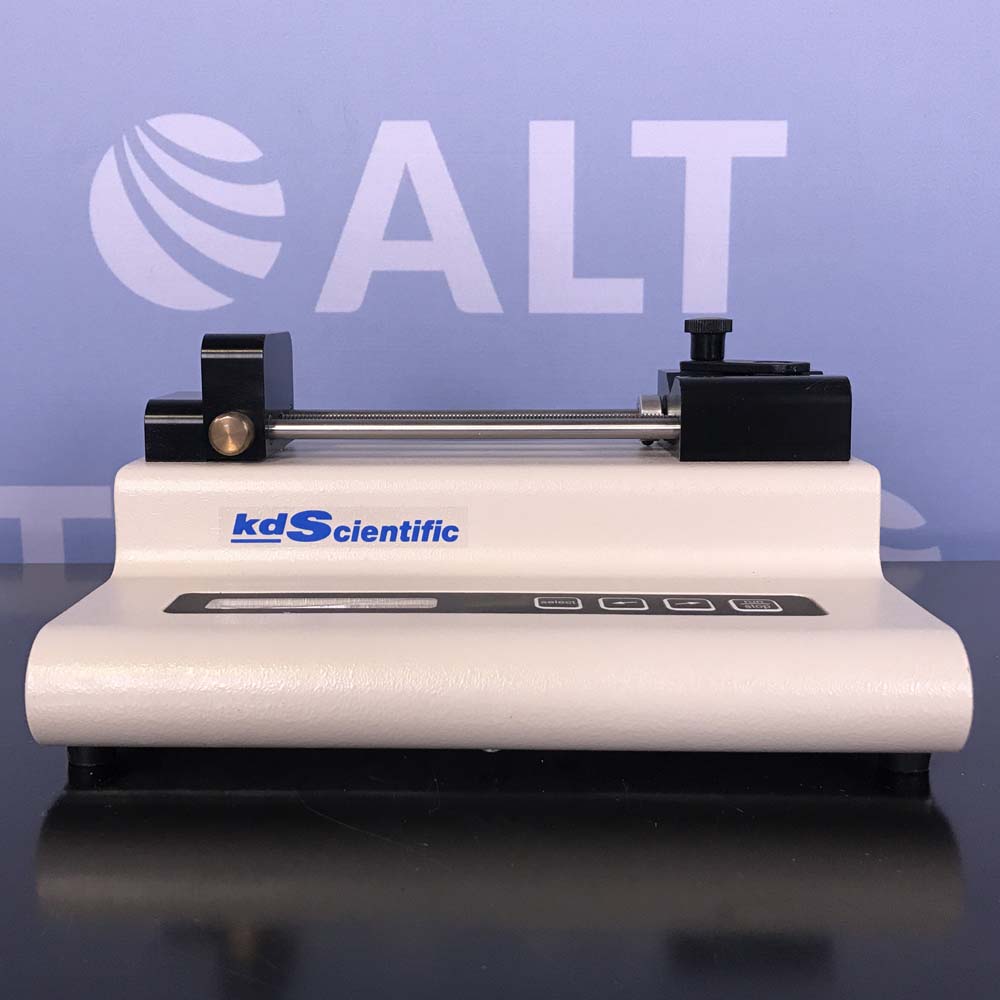

KD Scientific 78-0100 Single Syringe/Infusion Pump

The KD Scientific Single Syringe/Infusion Pump, Model 78-0100, is a basic single syringe, infusion pump which combines precision with simplicity.

Features:
– Single syringe 10 uL to 60 mL, any manufacturer
– Simple menu-driven setup:
1) Select syringe size from displayed table
2) Set dispense volume
3) Set dispense flow rate
– Easy to read bright, backlight display
– Dispense volume displayed and has automatic shutoff at completion
– Volume and flow rate units (uL/hr or mL/hr) are selected automatically based on syringe size
– Last settings stored in permanent memory
– Button release of drive nut for easy syringe installation
– Choice of run / stop after a power interruption

Specifications:
– Pump Type: Infusion
– Max. No. of Syringes: One
– Syringe Size: 10 uL to 60 mL
– Dimensions (WxDxH): 9″ x 6″ x 5″ (23 x 15 x 12 cm)
– Weight: 4.5 lb (2 kg)
– Linear Force: 20 lb (9 kg) min.
– Advance Per Microstep: 0.529 micron (1/2 step)
– Max Step Rate (1/2 Step): 400 steps/sec
– Min Step Rate: 1 step / 30 sec.
– Accuracy: +/- < 1%
– Reproducibility: +/- 0.1%
