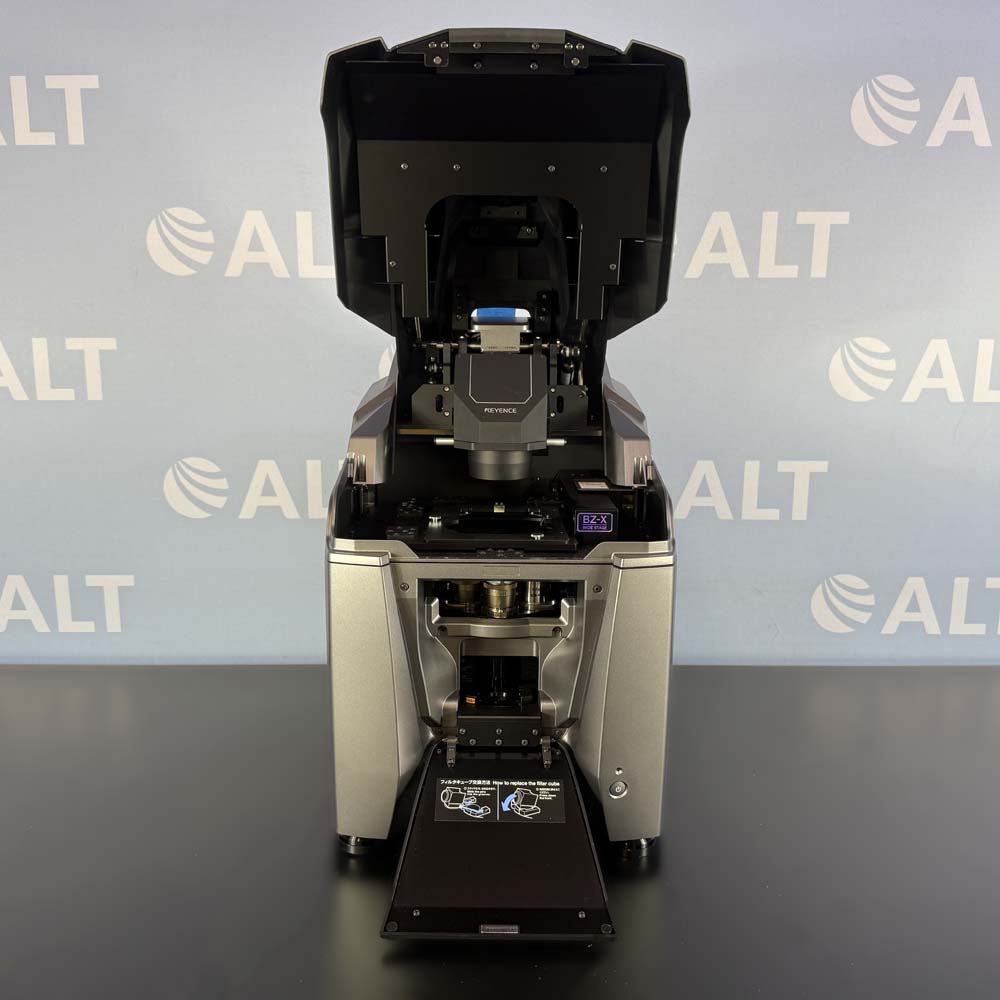

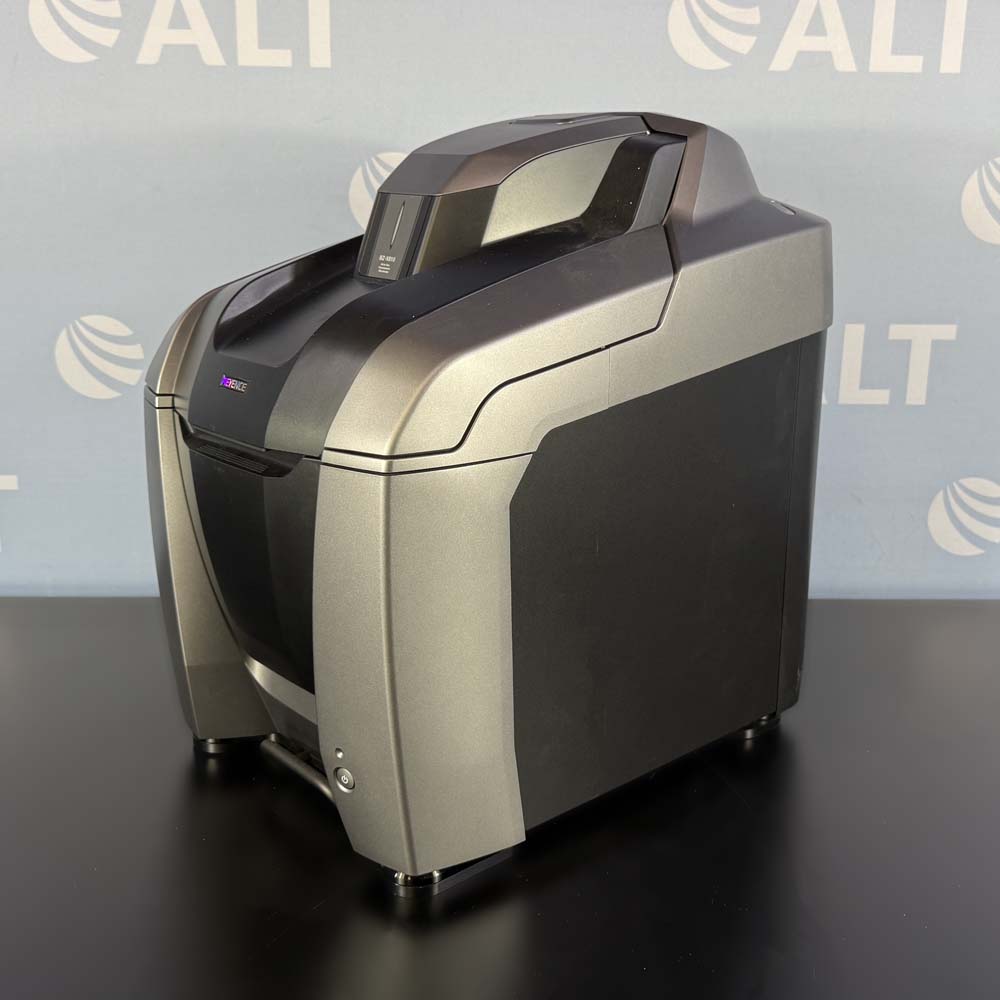

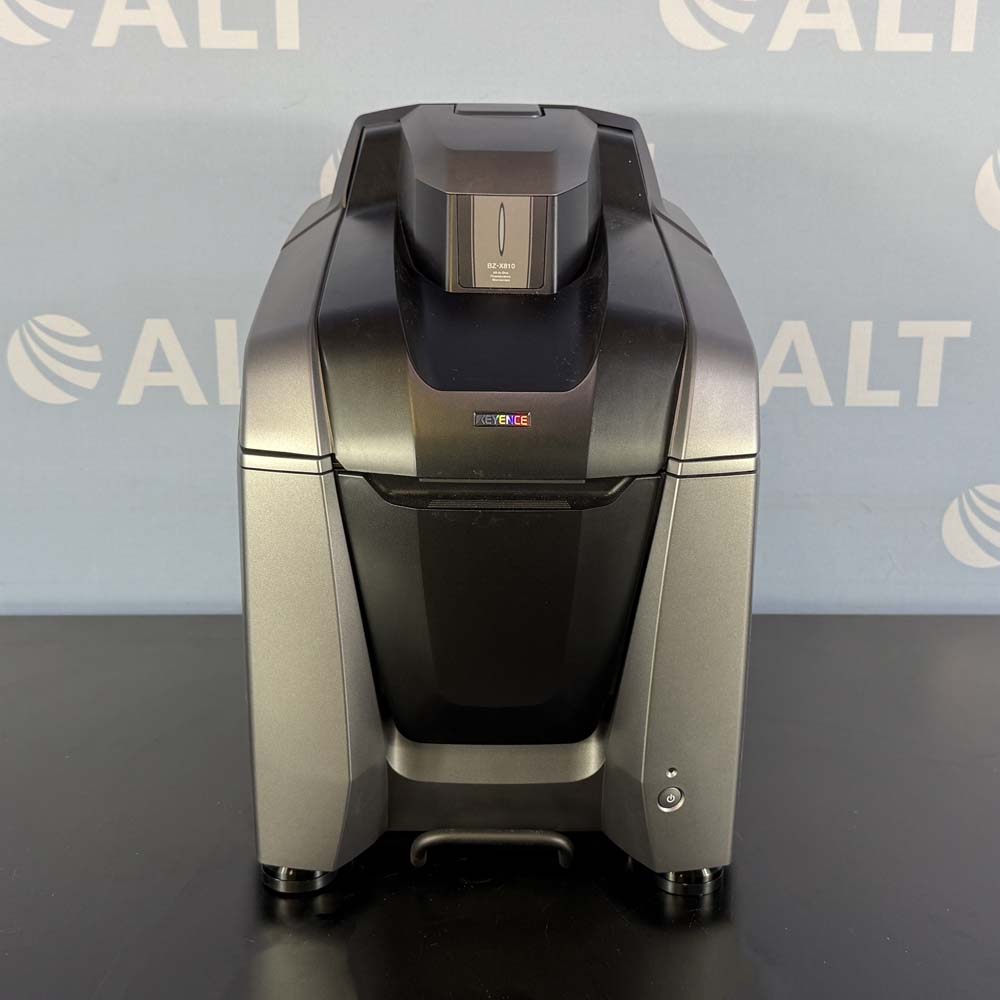

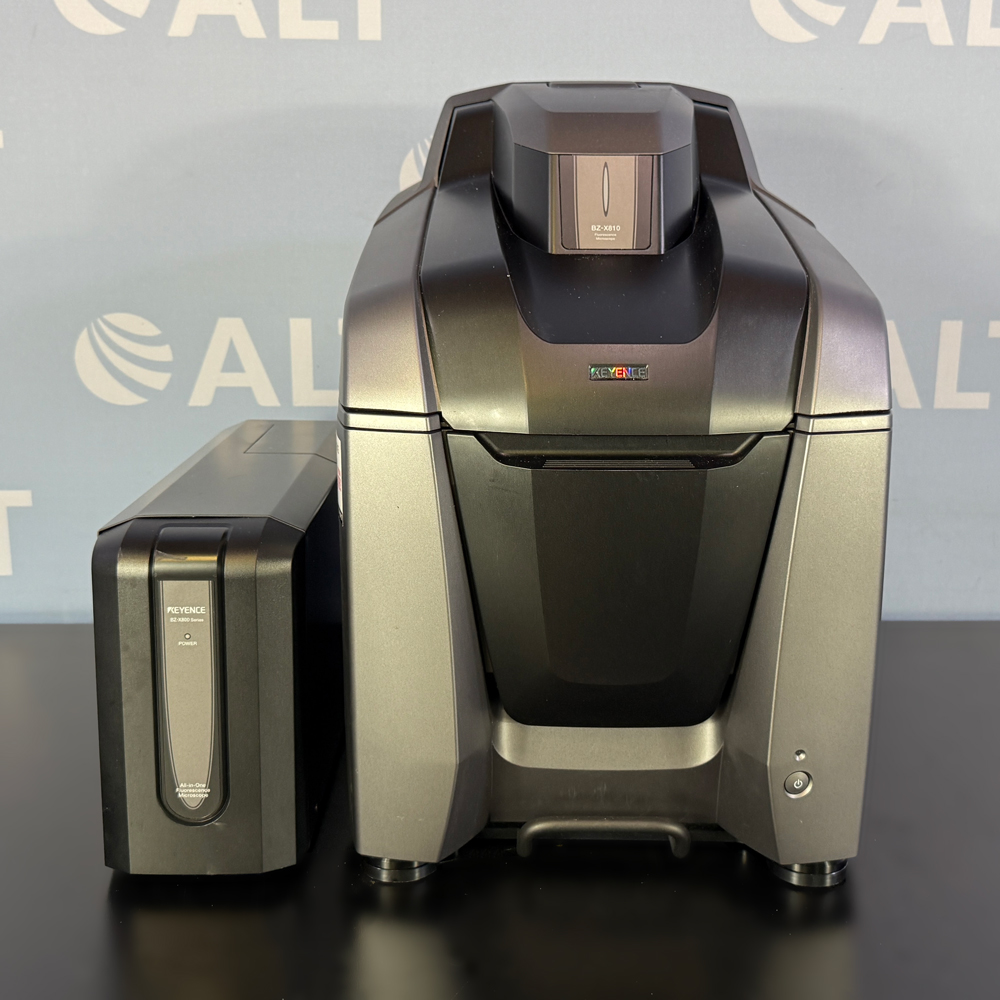

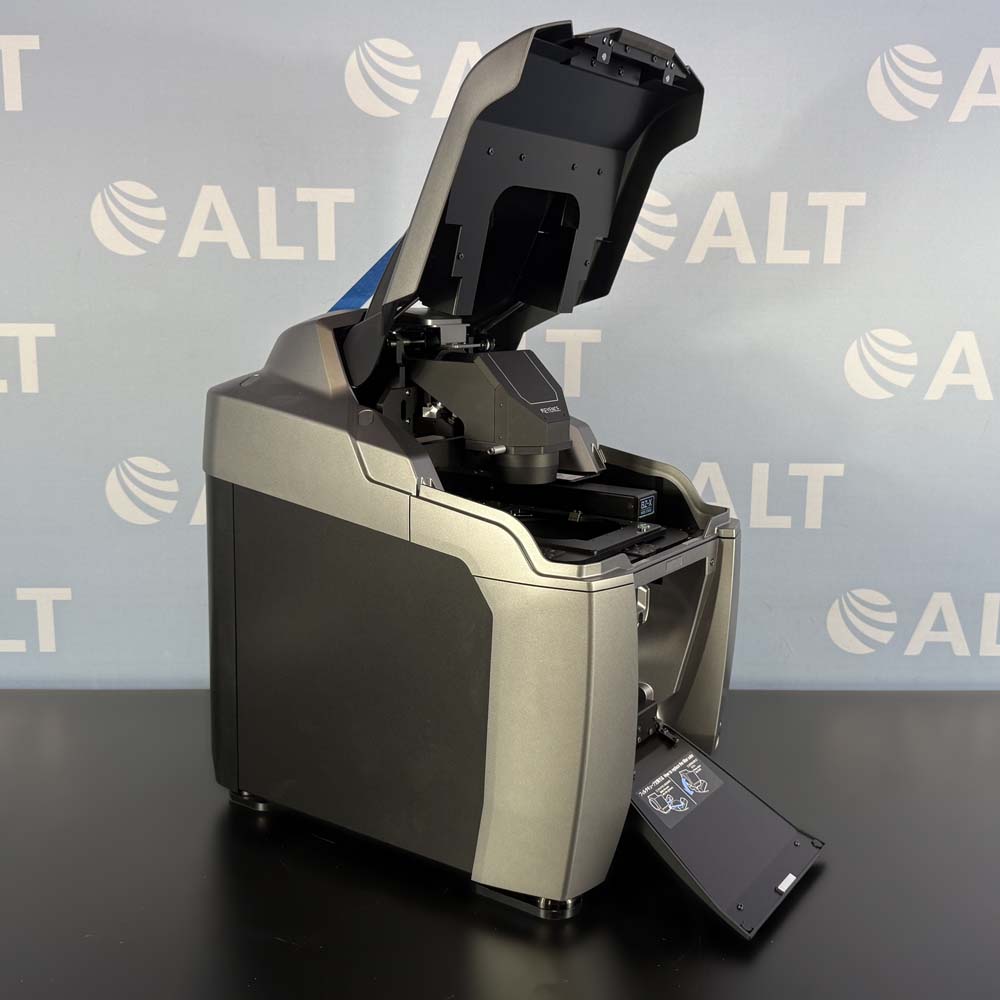

Keyence All In One Fluorescence Microscope, Model BZ-X810

The Keyence All In One Fluorescence Microscope, Model BZ-X810 is a top choice for scientists looking for advanced imaging capabilities in the lab. This versatile microscope offers exceptional ease of use and high-quality imaging, making it ideal for a wide range of applications, including cell biology, neuroscience, and drug discovery.

Key Features & Benefits

• Integrated system with high-resolution imaging capabilities
• Automated analysis software for efficient data processing
• Multiple fluorescence channels for versatile imaging
• High-speed image acquisition for quick results

Specifications

• Observation modes: Brightfield, Fluorescence (wide-field/sectioning), Phase contrast (PhL, Ph1, Ph2), Oblique illumination

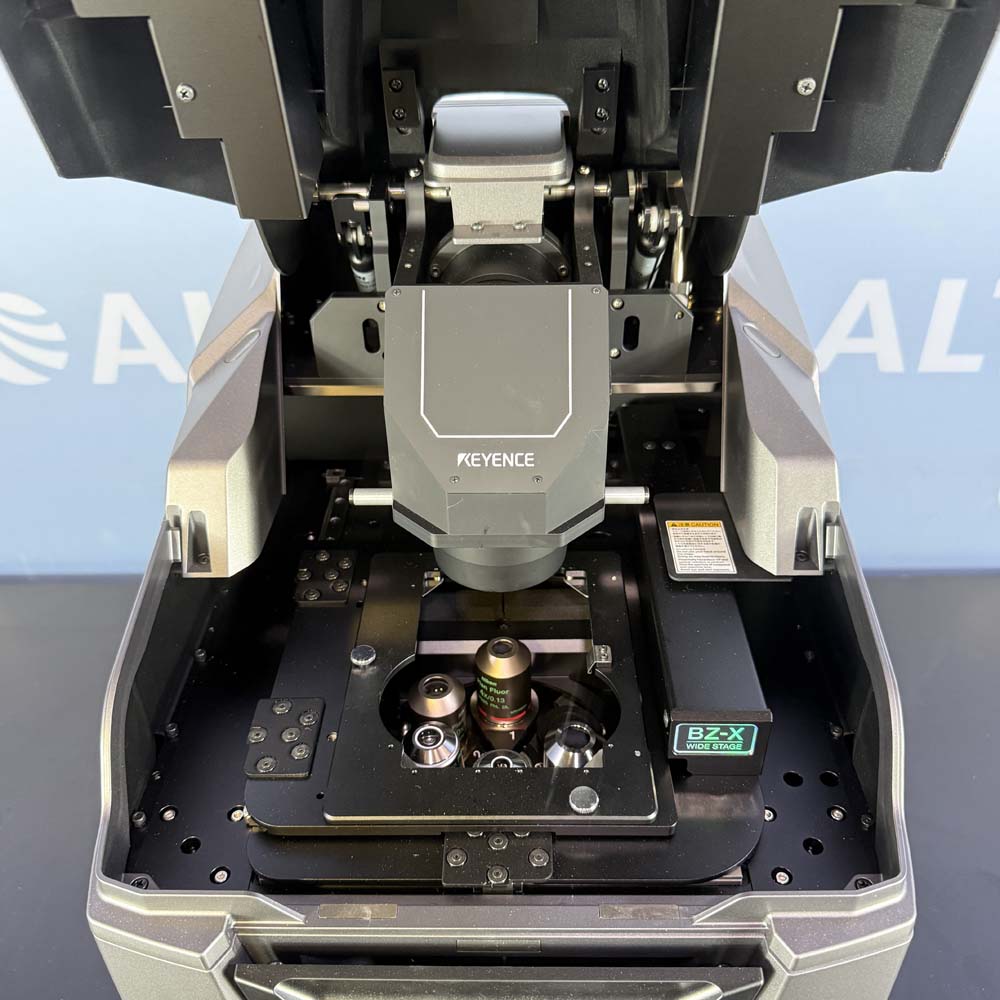

• Objective lens switching: Six-mount electronic revolver
• Motorized XY stage: 114 × 80 mm 4.49″ × 3.15″ stroke, minimum 1 μm pitch min.
• Motorized Z stage: 8 mm 0.31″ stroke, minimum 0.1 μm pitch min.
• Motorized filter turret: Up to four filters can be mounted. Automatic position recognition and automatic excitation shutdown during filter replacement
• Fluorescence dimming mechanism: Electronic dimming (0.3%, 5%, 10%, 20%, 40%, 100%)
• Specimen enclosure: The stage is fully contained in a built-in darkroom
• Number of pixels in recorded image: 4080 × 3060 max (12.5 megapixel, high-quality interpolation)
• Video capture 8-bit monochrome: 15 fps for 1280 × 960 With binning: 29 fps for 960 × 720, 40 fps for 640 × 480, 50 fps for 480 × 360, 75 fps for 240 × 180, 100 fps for 160 × 120
• Dimensions: Head: 20.35″(H) × 13.39″(W) × 19.53″(D); Controller: 8.96″(H) × 4.92″(W) × 16.06″(D);
• Weight: Head: Approx. 72.75 lb; Controller: Approx. 10.58 lb
• Electrical Requirements: 100 to 240 VAC ± 10%, 50/60 Hz

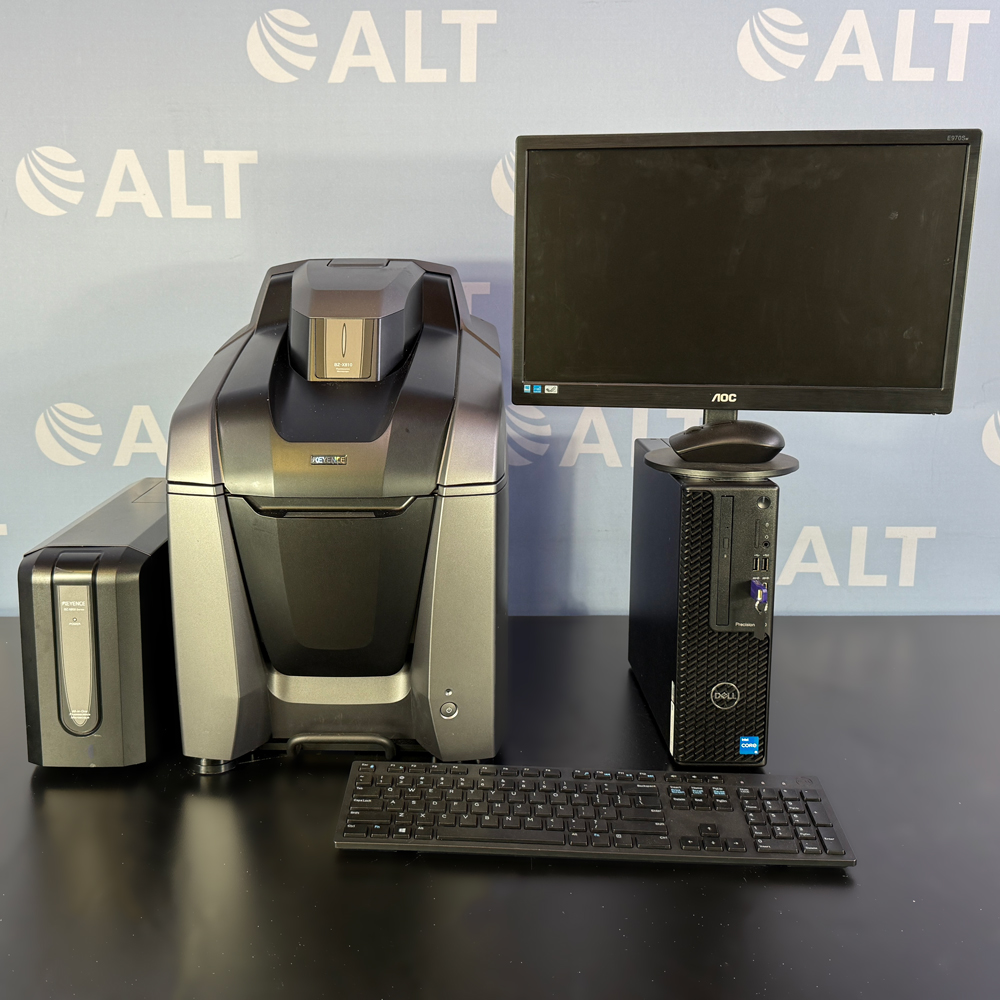

• Includes PC with pre-loaded software, Monitor, Keyboard, Mouse, and Cables
