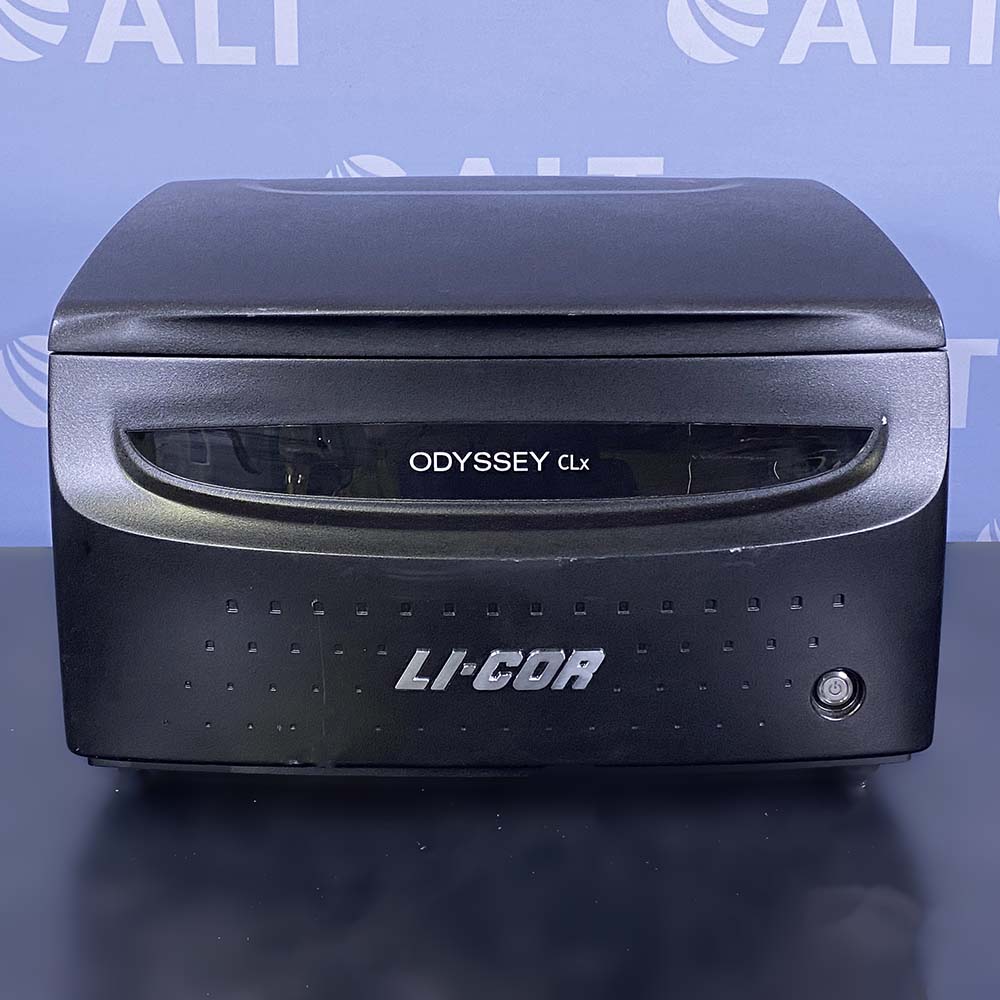

LI-COR Odyssey CLx Infrared Imaging System Model 9140

The LI-COR Odyssey CLx Imaging System Model 9140 is designed to be flexible and consistent while performing different experiments. The captured the digital data results provide over six logs of linear range. This image system takes away the darkroom process, expenses, time and replaces it with instant digital results. Image studio software saves personal settings which captures the details and complexity of your data. The image system also provides two safety interlocks that prevent access to the laser when its lid is open during operation.

Specifications:
– Weight: 33 kg (72 lbs)
– Laser Lifetime: 40,000 hours typical
– Detectors: Silicon avalanche photodiodes
– Scanning Speed: 5-40 cm/s
– Resolution: 21-337 µm
– Operating Conditions: operating temperature 15-35°C and dew point not greater than 20°C, non-condensing; altitude not to exceed 2000 m
– Environmental Conditions: Pollution Degree 2
– Power Requirements: 100-240 VAC, 4 Amp maximum, at 120V, 50/60 Hz
– Dimensions (H x W x D): 37 x 53 x 62 cm (15 x 21 x 24.5 in)
– Dimensions With the hood fully open: the74 cm (29”) of vertical clearance
