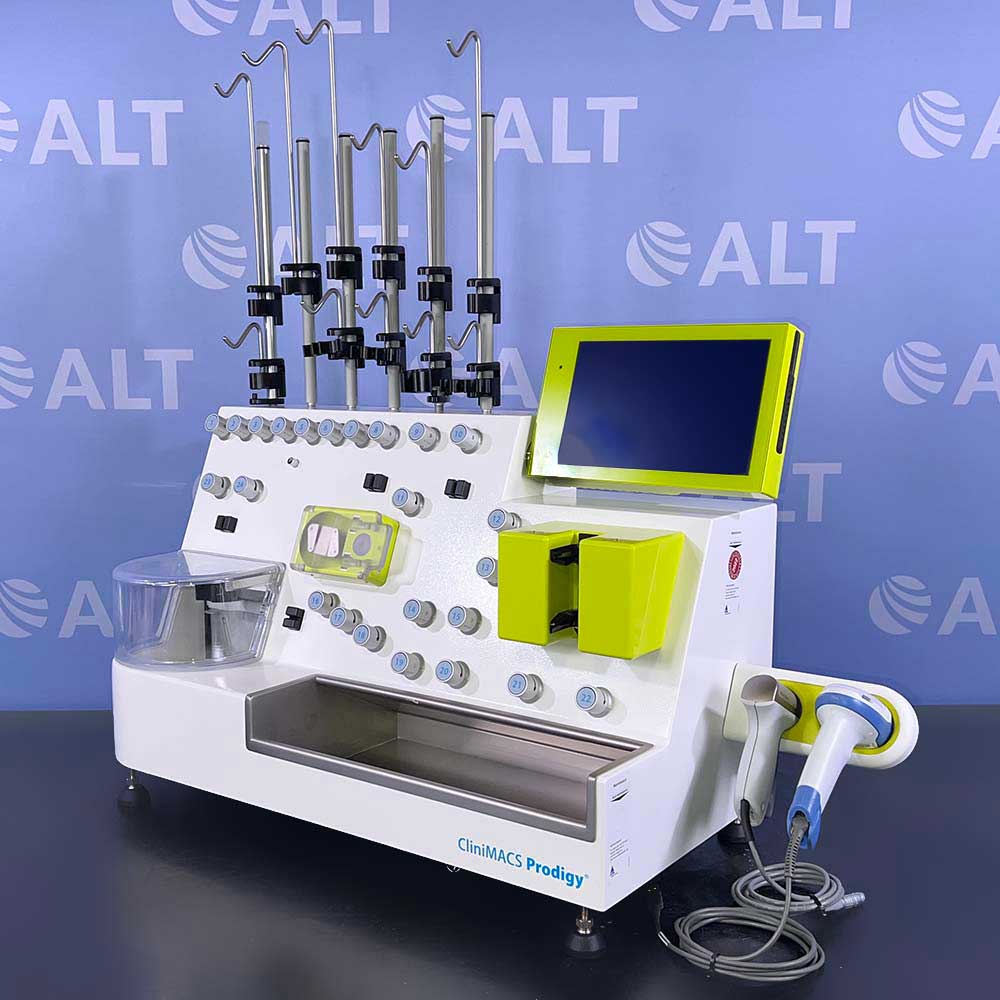

The Miltenyi Biotec CliniMACS Prodigy Instrument For Automated Cell Processing offers advanced integrated solutions to streamline cell processing workflows – from cell separation through cell culture to formulation of the final product.

The CliniMACS Prodigy offers a flexible platform for cell processing applications enabling the magnetic separation of different cell types as well as customized cell processing protocols. The cell processing unit for fully automated washing, fractionation and cultivation of cells represents an integral component of the device. These processing steps take place in a single-use chamber, which is included as part of specific CliniMACS Prodigy Tubing Sets. The magnetic cell separation unit comprises a second integral component, enabling the separation of virtually any cell type.

Specifications:
Dimensions	28.9" W x 15.7"D x 18.9"H (73.5 x 40 x 48 cm)
Weight	154 lbs. (70 kg.)
Power	240 V, 50/60 Hz
Pump speed	2–400 mL/min
Atmosphere control	Gas mix unit for CO2, compressed air, and N2; min. pressure: 1 bar, max. pressure: 2.5 bar
Temperature control	+4 °C to +38 °C
Centrifugation	Max. 2,500 rpm (400×g)
Microscope camera	Max. magnification: 400-fold
Monitor	10.1” TFT touchscreen
MACS tube sealer	For sealing CliniMACS Prodigy Tubing Sets PVC tubes
Types of starting material	Leukapheresis, bone marrow, cryopreserved PSCs
Available cell processing steps	Cell washing, density gradient centrifugation, cell activation, fluorescent antibody labeling of cells, cell depletion and/or enrichment via magnetic cell separation, viral transduction, cell expansion, expansion and differentiation of adherent cells, cell culture and medium exchange, formulation of final cell product
IPC/QC	Integrated IPC/QC sampling pouches allow sterile sample removal
