Ohaus  Champ Scale BASE With CD-11 Weighing Indicator Terminal
Ohaus  Champ Scale BASE With CD-11 Weighing Indicator Terminal
Ohaus  Champ Scale BASE With CD-11 Weighing Indicator Terminal
Ohaus  Champ Scale BASE With CD-11 Weighing Indicator Terminal
Ohaus  Champ Scale BASE With CD-11 Weighing Indicator Terminal
Ohaus  Champ Scale BASE With CD-11 Weighing Indicator Terminal

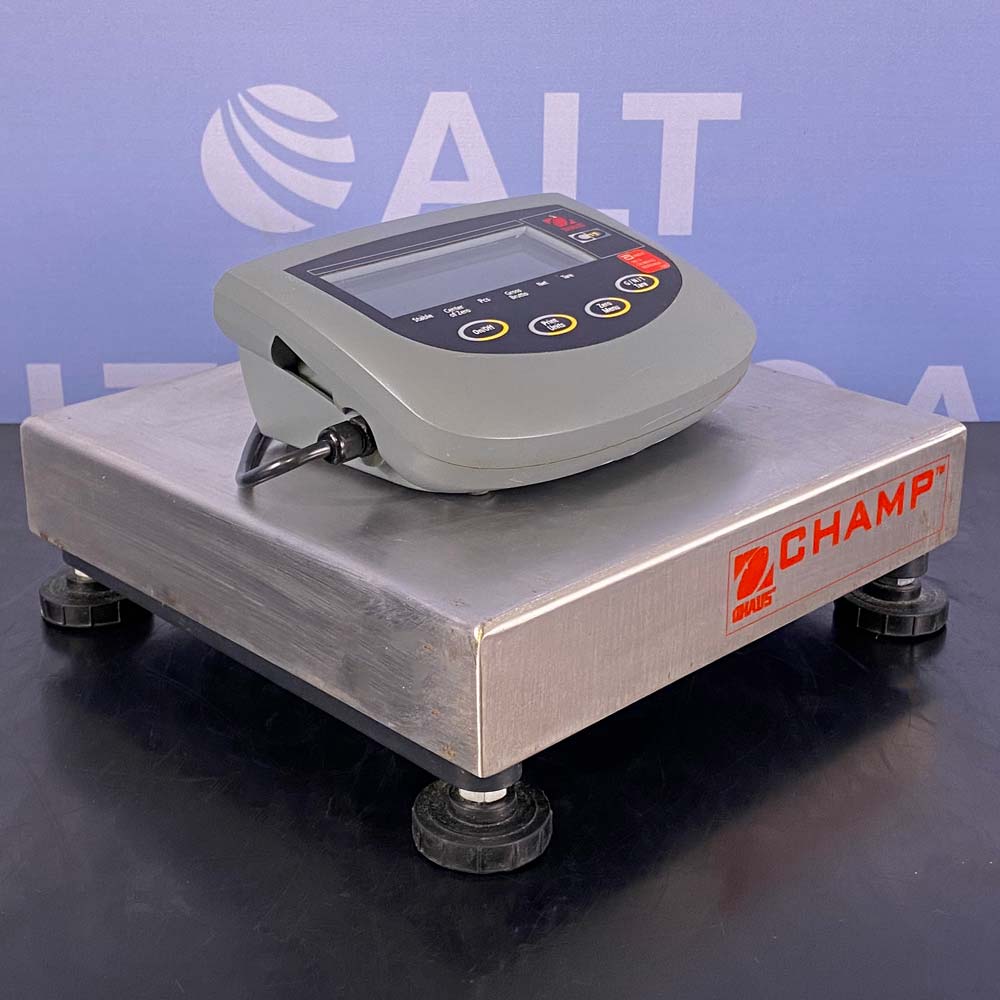

Ohaus Champ Scale BASE With CD-11 Weighing Indicator Terminal

ITEM: 30552 In Stock
Price: $595.00
Free 90 Day Warranty
One Year Upgrade Available
Tested & Serviced Prior to Shipping

The Ohaus Champ Scale BASE With CD-11 Weighing Indicator Terminal is designed to support up to four analog load cells in industrial and laboratory applications.

Features:

  • Intuitive counting operation
  • Standard RS232 for easy integration
  • Impact-resistant housing for durability
  • Ounce weighing unit plus pounds, kilograms, and grams
  • Backlit LCD Display
  • Display Hold Mode -Allows the user to freeze the highest stable reading on the display.
  • Geographical Adjustment Function
  • Enhanced Span Calibration Range
  • Dedicated Tare Key
  • Automatic Printing – Allows multiple auto print options: continuous, interval and on stability
  • Legal for Trade Type Approvals – NTEP and Measurement Canada 5000e, EC/OIML 10000e



Specifications:
Capacity (lb/kg)5 to 20,000
Graduation (lb/kg)0.001 to 20 (capacity dependant)
EC / OIML Approvalyes
Geo Functionyes
Displayed ResolutionNTEP 1:5000 LFT
Legal for Trade Type Approved ResolutionNTEP/CWM 5000e / OIML 10000e indicator
Max Displayed Resolution1:20000 Non LFT
Weighting Modeslb, kg, g, oz
Parts Countingyes
Dynamic Weighingno
Percent Weighingno
Check-weighingno
Time/Date/GMPno
Standard RS232yes
Functionsweighing, parts counting, display hold
Internal resolution1:200,000
Over range capacityMax capacity + 9d
Stabilization time1-4 seconds, depending on filter selection
Auto-zero tracking capture rangeOff, 0.5, 1, or 3 divisions
Zeroing range2%, 18% or 100% of capacity
Span Calibration5 lb/kg to 100% of capacity
Load cell excitation voltage5VDC
Display BacklitLCD, 1 in / 2.5 cm digit height
Operating Temperature Range14°F to 104°F / -10°C to 40°C
PowerAC Adapter or 6 alkaline C batteries
Keyboard4 function membrane keys & dedicated TARE key
InterfaceRS232
DimensionsW X D X H 8.3″ W x 6.8″ D x 3″ H in (20 x 17.2 x 7.7 cm)
Weight1.3 lb / 0.6 kg
