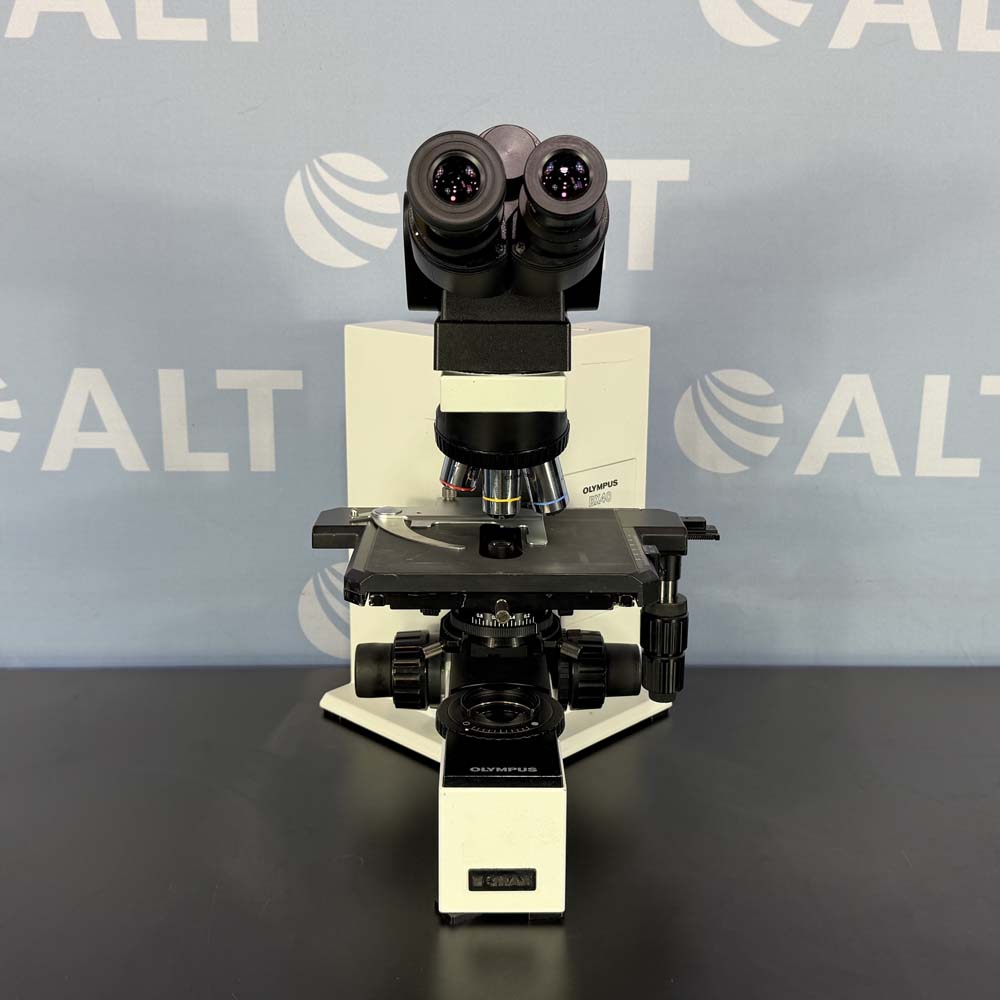

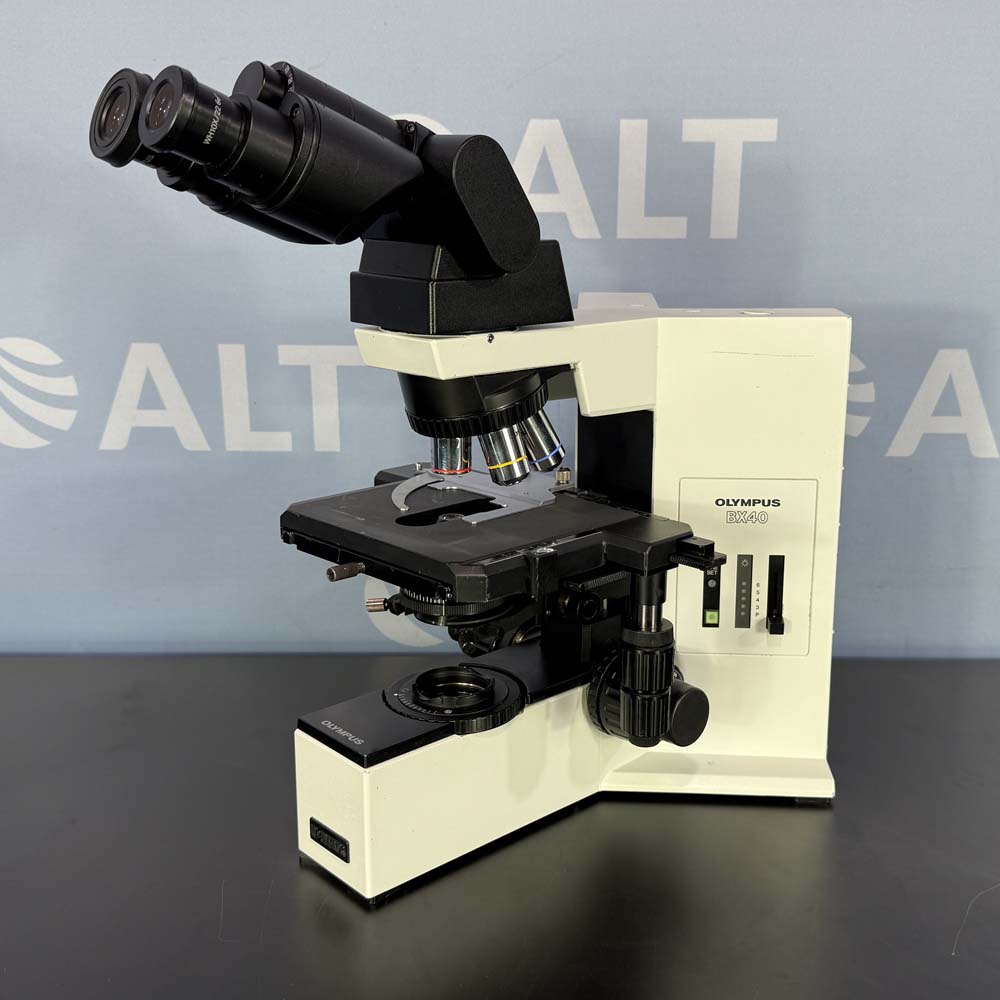

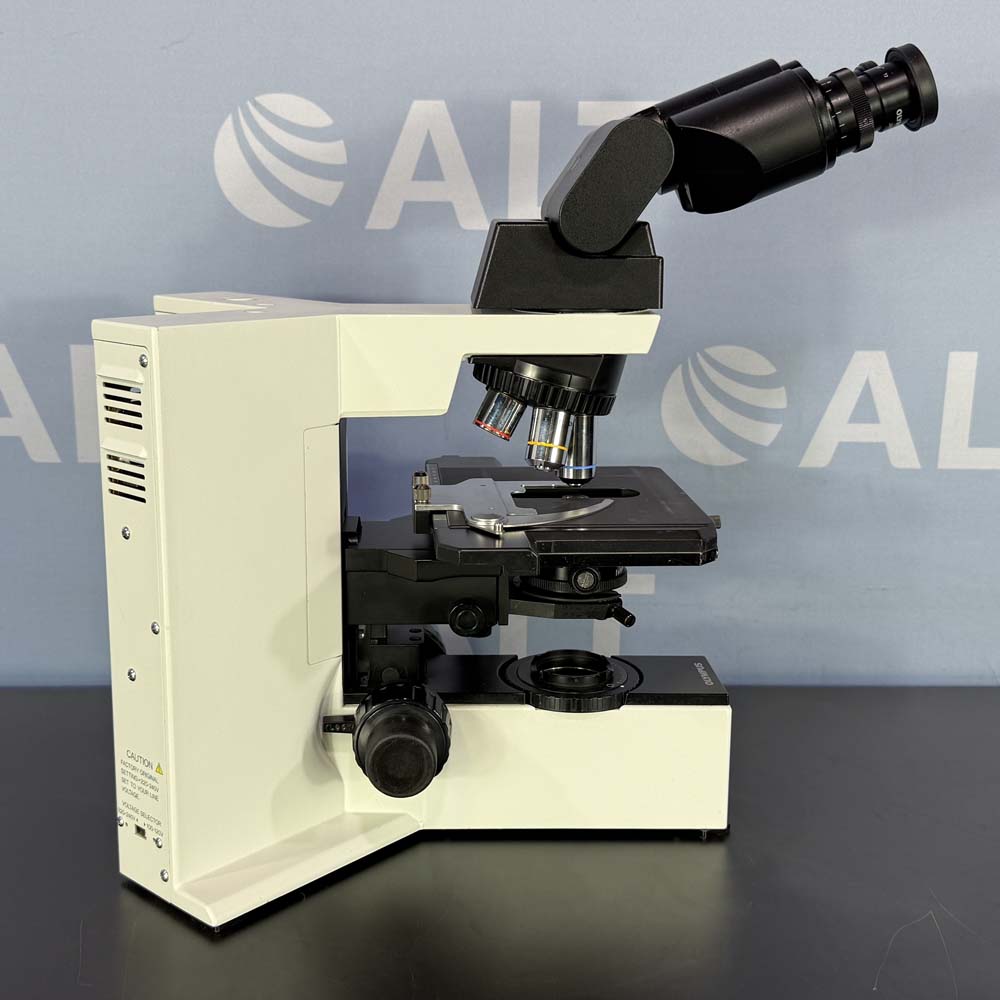

Olympus BX40F-3 Microscope

The Olympus BX40F-3 Microscope is a research-grade upright fluorescence microscope designed to deliver high-quality imaging for various laboratory applications. Its ergonomic design and advanced optical components ensure precise and comfortable operation.

Specifications:

• Microscope Frame: Model BX40F-3 with a Y-shaped, ergonomic design to reduce fatigue during prolonged use.
• Viewing Head: Trinocular head with a three-position light path selector (100% to eyepieces, 100% to camera, or split between eyepieces and camera).
• Eyepieces: WH10x/22mm widefield eyepieces, providing a broad field of view.
• Objective Nosepiece: Quintuple revolving nosepiece accommodating up to five objective lenses.
• Objectives:
  • Plan 4x/0.13
  • UPlanFl 10x/0.30
  • UPlanFl 20x/0.50
  • UPlanFl 40x/0.75
  • UPlanFl 100x/1.30 Oil
• Stage: Right-hand mechanical XY stage with slide holder, facilitating precise specimen movement.
• Condenser: Abbe condenser with N.A. 1.25, suitable for brightfield and phase contrast applications.
• Illumination:
  • Transmitted Light: 6V 30W halogen lamp with Koehler illumination.
  • Fluorescence Illumination: 100W mercury lamp housing (U-ULH) with external power supply (BH2-RFL-T3).
• Filter Cubes: Equipped with a BX-FLA fluorescence illuminator featuring a rotatable turret for up to four filter cubes. Includes DAPI, FITC, and TRITC filter sets.
• Dimensions (W × D × H): Approximately 9.8″ × 15.7″ × 17.7″ (250 × 400 × 450 mm).
• Weight: Approximately 28 lbs (12.5 kg).

Its combination of ergonomic design, versatile illumination options, and high-quality optics makes the BX40F-3 Microscope a reliable choice for laboratories requiring detailed and accurate microscopic analysis.
