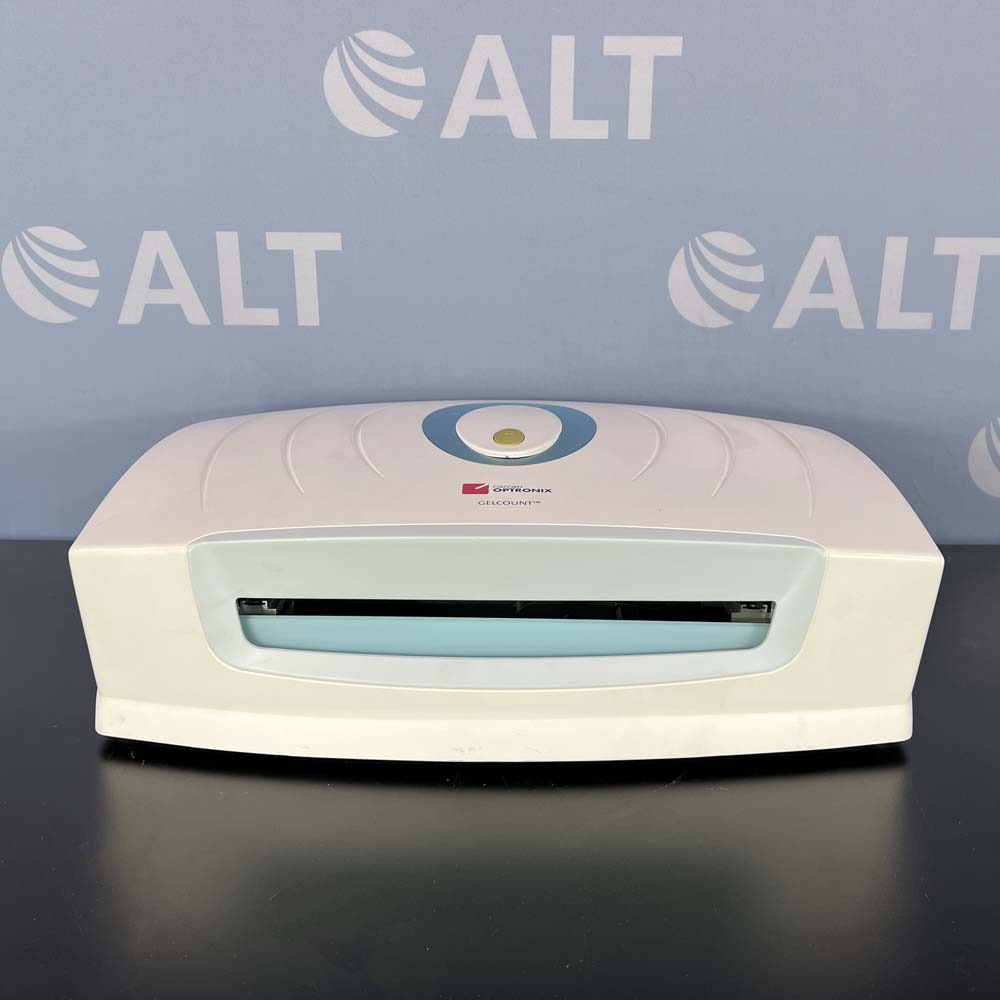

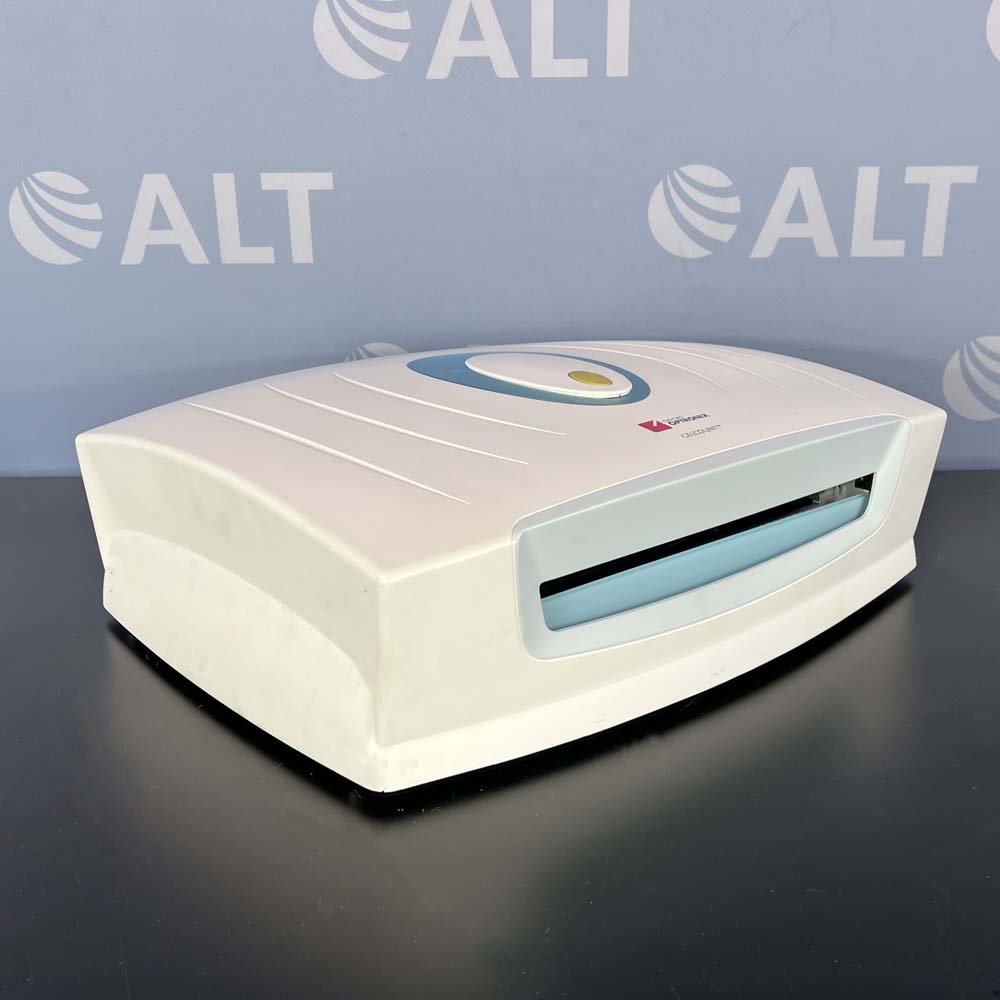

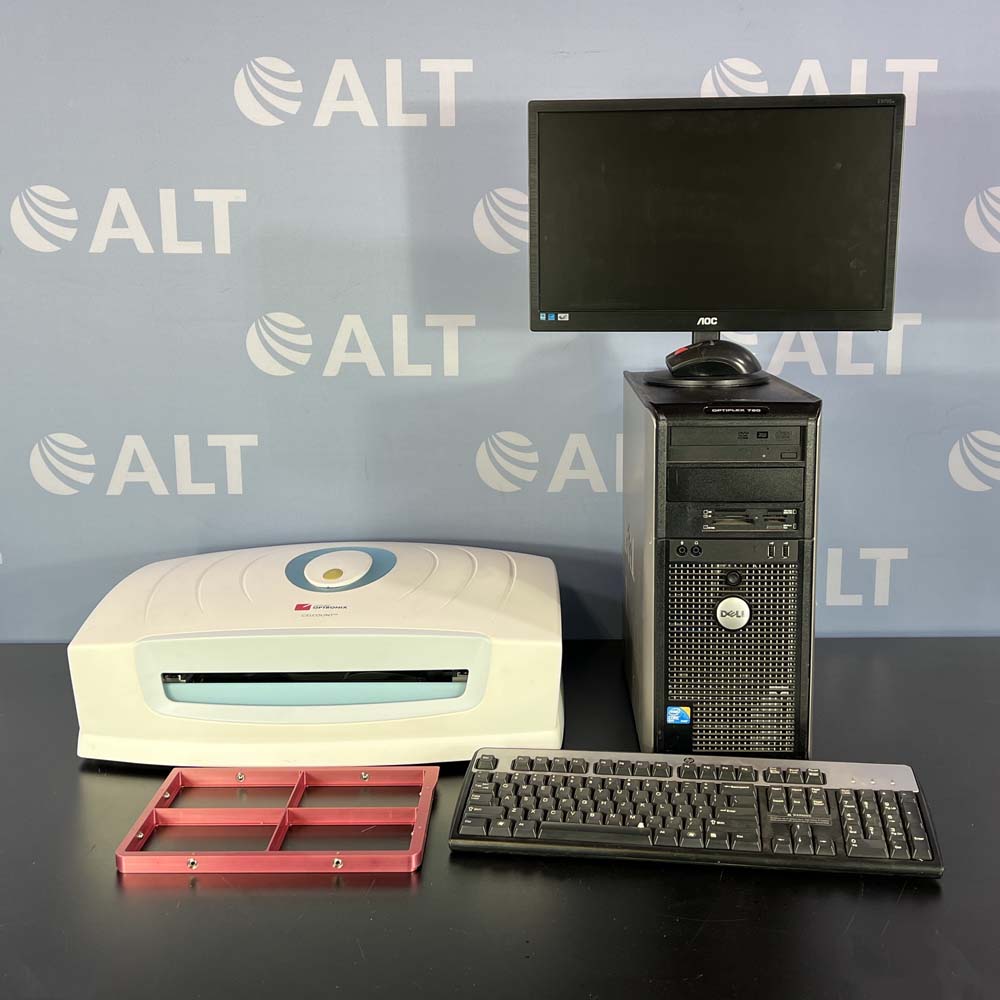

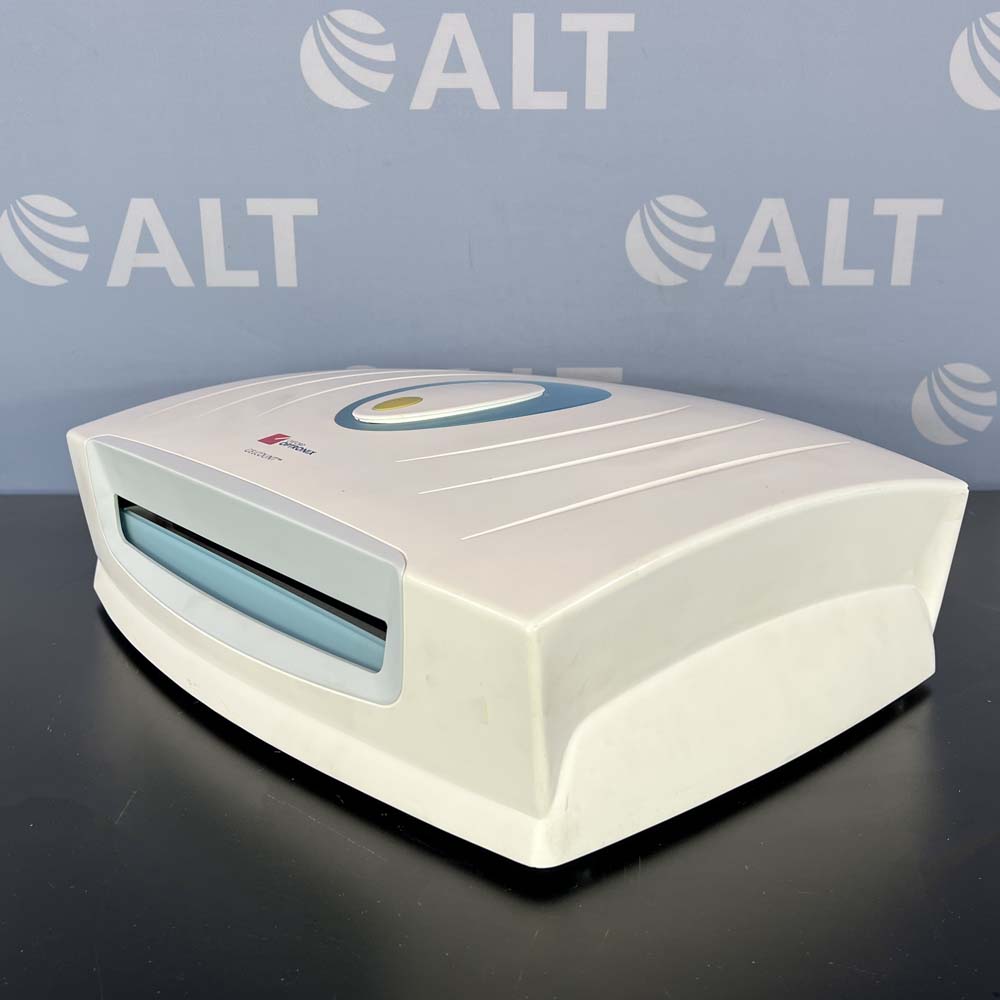

Oxford Optronix Gelcount Mammalian Cell Colony, Spheroid And Organoid Counter

The Oxford Optronix Gelcount Mammalian Cell Colony, Spheroid, and Organoid Counter is an all-in-one imaging and analysis platform designed for automated, high-accuracy counting and characterization of mammalian cell colonies, spheroids, and organoids. It combines advanced imaging technology with a powerful software suite to provide fast, objective, and reproducible results, making it an indispensable tool for cell culture and research applications.

Features & Benefits:

• All-in-One Platform: Integrated solution for imaging, detection, and characterization of colonies, spheroids, and organoids.
• High-Resolution Imaging: Captures detailed images at up to 2,400 dpi for accurate detection of small and overlapping objects.
• Fast Throughput: Processes up to four 6-well plates in approximately 8 minutes, enhancing lab efficiency.
• Versatile: Supports both adherent and non-adherent cell cultures, including 3D spheroids and organoids, with or without staining.
• Unbiased Output: Automated counting and data processing eliminates human error, providing objective results.
• Flexible Data Output: Data and images can be easily exported to Excel or saved in various image formats for presentations and further analysis.

Specifications:

• Dimensions: 200 mm x 615 mm x 460 mm (H x W x D)
• Weight: 19.9 kg
• Power Requirements: External PSU (100-240V / 50-60 Hz), 24V DC, 2.5A, 60W max
• Energy Use: 30W (Operation), 12W (Ready)
• PC Interface: Hi-Speed USB (USB 2.0 or later)
• Storage Temperature Range: 10 – 40°C
• Operating Temperature Range: 15 – 30°C
• Operating Humidity Range: 0 – 75% (non-condensing)
• Imaging Method: High-resolution 16-bit greyscale matrix CCD, white light LED trans-illumination
• Imaging Resolution: 300 dpi – 2,400 dpi, user selectable
• Depth of Field: 0 – 5mm effective, above well base
• Min. Resolvable Object Diameter: Approx. 50 µm (at 2,400 dpi image resolution, under optimal conditions)
• Typical Acquisition Time: ~8 minutes (four 6-well plates at 1,200 dpi); ~25 minutes (four 96-well plates at max resolution)
• Sample Loading Method: Removable loading tray, software-controlled motorized drawer
• Plasticware Supported: Multi-well plates (6, 12, 24, 48, and 96-well plates with/without lids); 35, 50, and 100 mm Petri dishes with/without lids
• Loading Tray Capacity: Up to 4 multi-well plates; up to 24 Petri dishes
• Colony/Spheroid/Organoid Detection: Compact Hough and Radial Map (CHARM) image processing algorithm
• Cell Culture Types Supported: Adherent cell culture (staining required), Non-adherent cell culture (3D spheroids, colonies, and organoids, typically unstained)
• Counting Variability: < 5% for repeated analysis of the same sample
• Numerical Data Output: Exportable to Excel® for object count, object diameter statistics, and more
• Image Output Formats: JPG, TIFF, BMP, or PNG. ICS meta-data images for off-line analysis or archiving

With the Gelcount, you can achieve highly accurate, reproducible results with minimal hands-on time, optimizing your workflow and enhancing the reliability of your research data.
