PerkinElmer Operetta Microplate reader with Cermax Xenon Fiber-Optic Light Source, Model XL3000

The Operetta Microplate Reader with Cermax Xenon Fiber-Optic Light Source, Model XL3000 is an automated fluorescence imaging reader for usage in biological and pre-clinical research (biosafety levels 1 and 2). Due to its technical design, the unit is particularly suitable for cellular applications.

The Cermax Xenon Fiber-Optic Light Source delivers a robust lamp design with easy lamp replacement and no alignment issues. Cermax Xenon sets the industry standard in reliability, optical efficiency and ease-of-use. The XL3000 system is designed with a four-port rotating turret fiber optic adapter, compatible with industry standard fiber optic cables—ACMI, Wolf, Storz and Olympus. The high performance FOI system was also designed with safety in mind. It features interlocks to prevent stray light leakage, should the unit be operated without a fiber connection or if the fiber is removed during operation.

Operetta Microplate Reader Specifications:

Detector: CCD camera with 1.3 mega pixel; Peltier-cooled 14 bit resolution; Emission band pass changer
Xenon light source: External Xenon lamp, fiber-coupled; Spectral width: 14 nm General wavelength range: 350-680 nm Input Voltage: 100 – 240 V AC, 50/60 Hz, 6.0A Lamp module: l 300 W l Lifetime: 500 hours l Easy exchange
Compatible sample carriers: ViewPlate-96 F TC; ViewPlate-384 F TC; CellCarrier-384, TC.
Power: 120V, 60 Hz

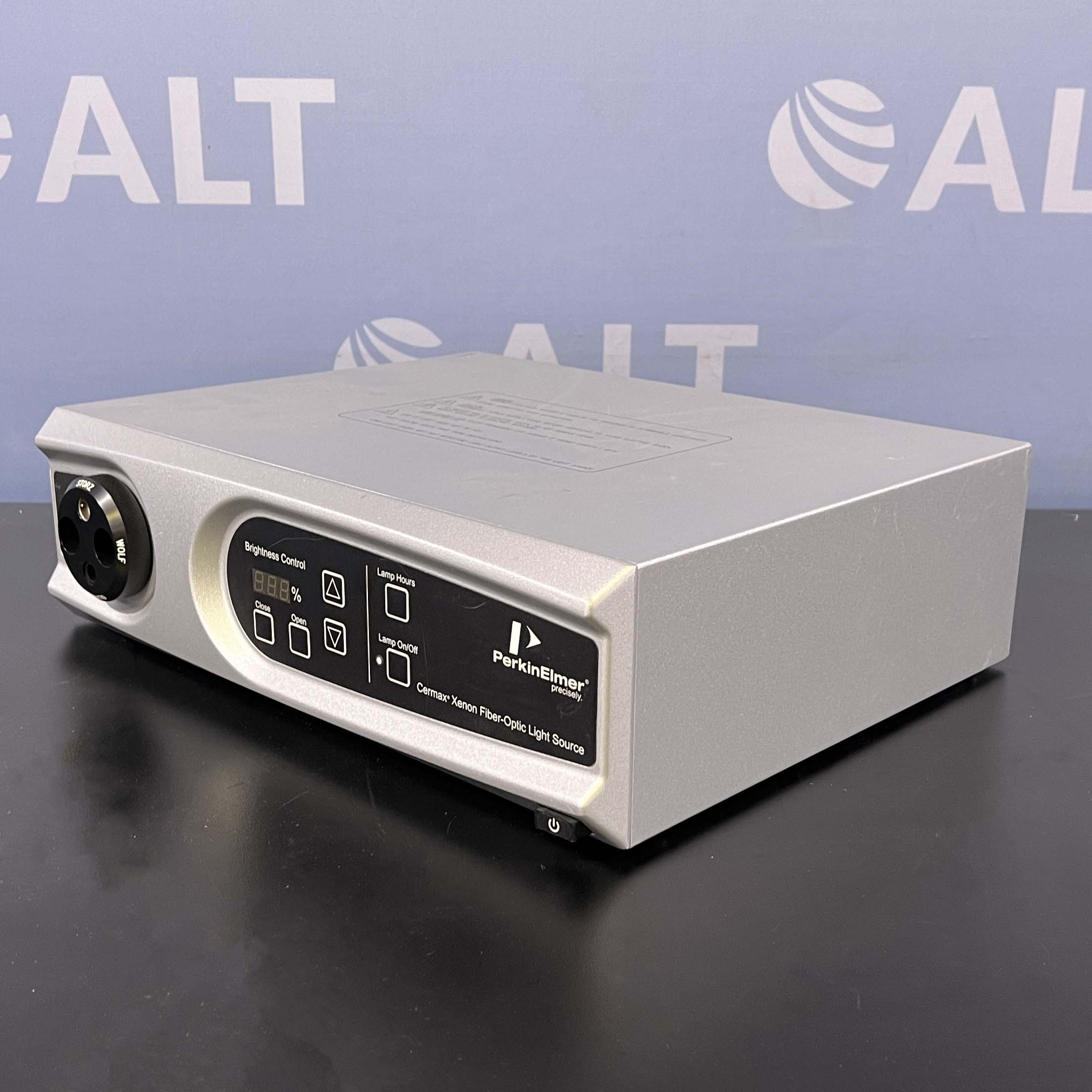

Cermax Xenon Fiber-Optic Light Source Specifications:

Input Voltage 100–240 VAC, 50/60 Hz universal
System Light Output: 2000 Lumens nominal initial output through 6 mm glass rod at full rated power Intensity level adjustable by user from 0–100% in increments of 10%.
Spectral Output: 380–750 nm nominal
Lamp Power Supply: PS300-12 type
Lamp Module: Cermax® 300 Watt
Lamp Life: 500 hours warranty, > 1000 hours typical
Fiber Optic Adapter: Four-port turret with Wolf, Storz, ACMI, and Olympus ports “
Interface: Membrane buttons and digital display on front panel and RS232 interface option
Physical Dimensions: 16.9” W x 13.8” D x 5″ H (43 x 35 x 12.7 cm)
Weight: 19.8 lbs (9 kg)
Operating Temperature: 6° C to 40° C
