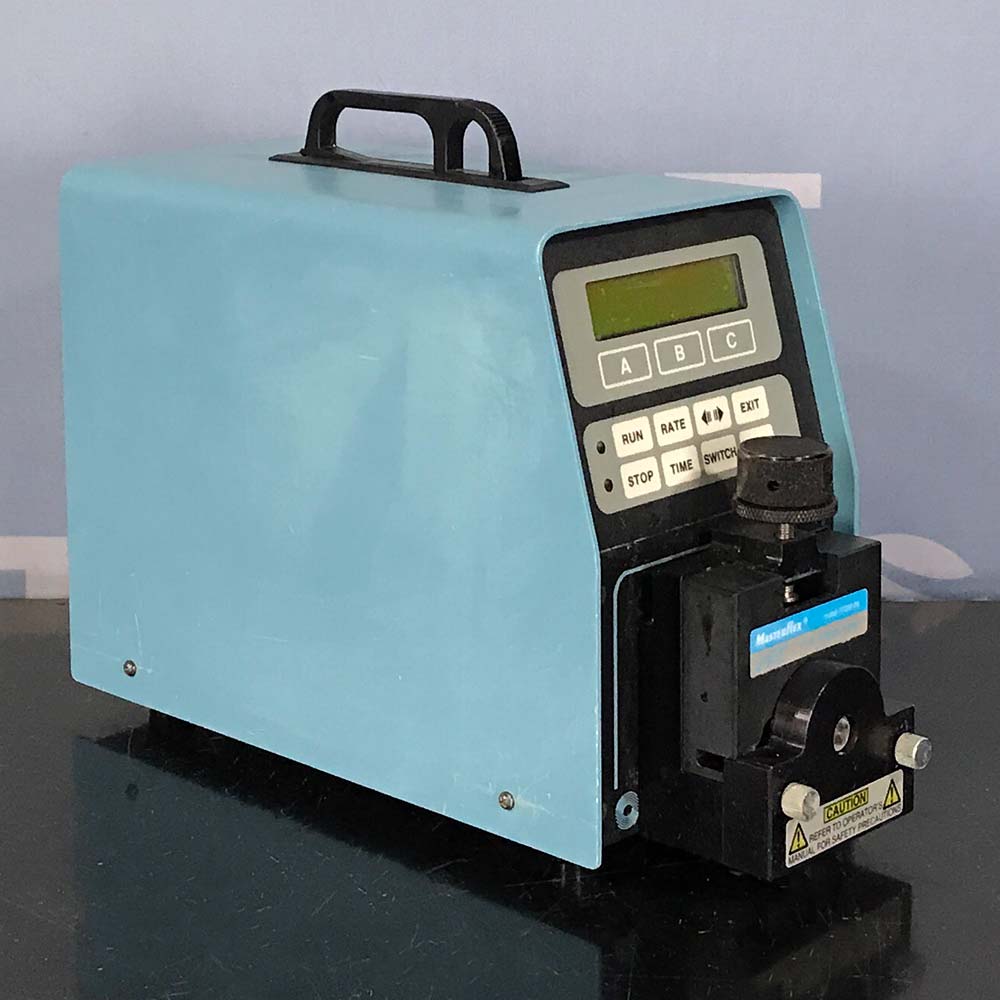

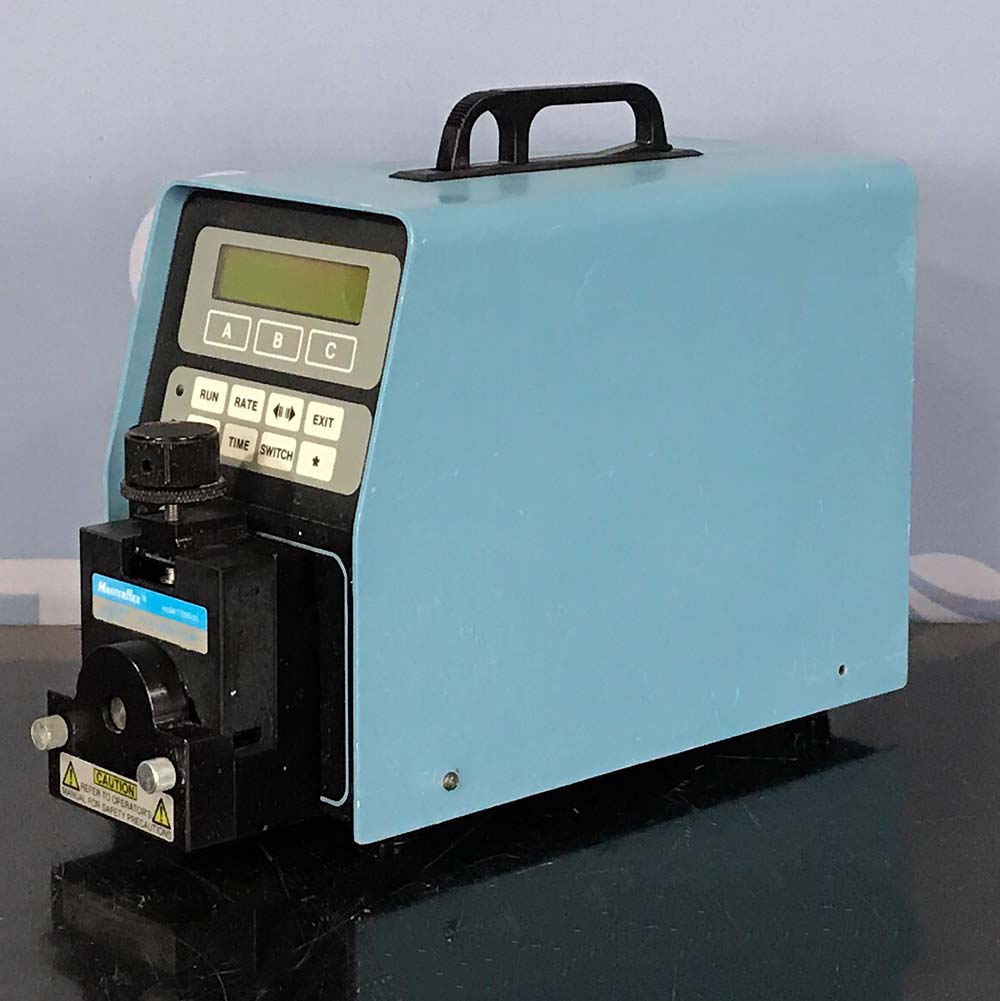

SciLog ChemTec Peristaltic Pump With Cole-Parmer PTFE Tubing Pump Model 77390-00
ITEM: 29713
This product is currently out of stock, please check our complete line of in-stock Peristaltic Pumps by clicking the green link below or give one of the members of our sales team a call today at (860) 691-2213 so we can help you find a suitable replacement.
The SciLog ChemTec Peristaltic Pump With Cole-Parmer PTFE Tubing Pump Model 77390-00 is a high precision metering system that provides application specific automation for chemical and biological application. The precision metering is achieved by using high resolution optical motor encoders for volumetric applications as well as connection to a balance for gravimetric applications.
The automatic documentation and alarm / pump stop settings allow the user to focus on other tasks while the system is running. Programmable end points ensure the system ceases operation when run stops command or application target endpoints are reached.
Features:
- Volumetric or gravimetric operation
- Compatible with most 3rd party balances
- Real-time data collection
- Dispense accuracy >0.5% error
- Intuitive application interface
- Safe, walk-away systems operation
- PTFE tubing is the only wetted part ensuring fluid purity and excellent chemical compatibility
- Delivers a wide range of flow rates at pressures up to 100 psi (6.9 bar)
- Six-roller pump head with adjustable occlusion—tighten occlusion for higher pressure, loosen for longer tubing life
Specifications: | |
Number of Channels | 1 |
Max Flow Rate | 65 mL/min |
Min Flow Rate | 0.06 mL/min |
Max Flow Rate Per Channel | 65 mL/min |
Min Flow Rate Per Channel | 0.06 mL/min |
Housing Material | Anodized Aluminum |
Tubing Retention | Automatic |
Occlusion | Adjustable |
Optimum RPM Range | 0.02 to 300 rpm |
Rollers | Six; stainless steel |
Rotor Material | Stainless Steel |
Suction Lift | 8 ft (2.4 m) |
Gear Ratio | 1:1 |
Tubing Sizes Accepted | 4-mm or 6-mm OD PTFE Tubing Sets |
Volume Per Revolution With 4-mm OD Tubing | 0.06 mL |
Volume Per Revolution With 6-mm OD Tubing | 0.22 mL |
Enclosure & Rating | 16 Ga, aluminium baked epoxy blue 4-40°C, 0-100% humidity, IP20 |
Pressure Sensors | Accommodates up to three (3) disposable pressure sensors |
Operational Mode | Mass flow, volume flow, diafiltration, pH and manual mode |
Electrical | 115/220-240V, 50/60Hz, 75W |
Dimensions | 5.75" W x 8.5" H x 13.63" D (14.6 x 212.6 x 34.6 cm) |
Weight | 14 lbs (6.4 Kg) |
