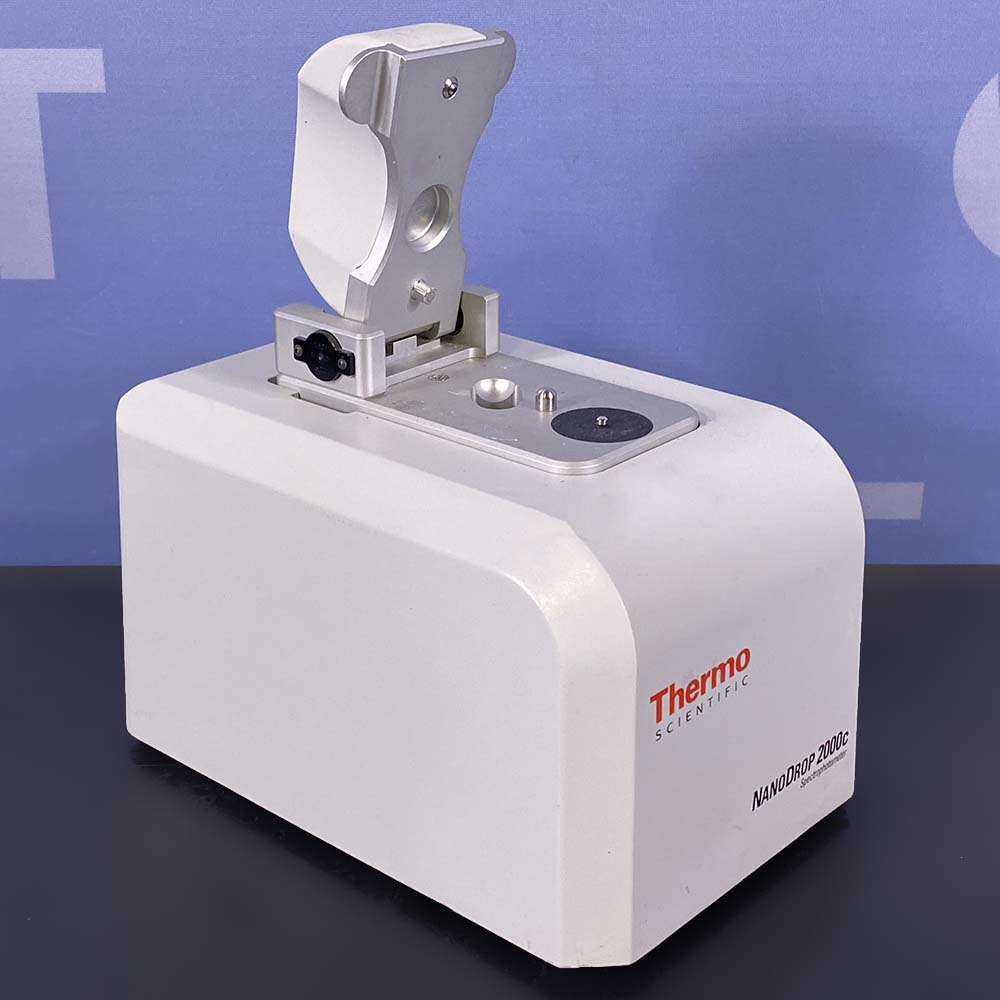

The Thermo Scientific NanoDrop 2000C Spectrophotometer is designed for sampling with high accuracy and reproducibility. Surface tension allows the NanoDrop to sample between two optical fibers at the same time. The patented sample retention system of the NanoDrop allows a sample to be pipetted directly onto an optical measurement surface. Once the measurement is complete, the surfaces are simply wiped with a lint-free lab wipe. It has advanced micro-volume pedestal technology.

Features:

• Dual modes: choose cuvette or pedestal
• Broader concentration range for measuring very low or very high concentrations
• Cuvette capability allows for kinetics (time or time/temperature studies) and cell culture (OD 600) measurements



Specifications - Pedestal Mode:
Power	12 VDC; 12-18 W, (max 30 W)
Minimum Sample Size	0.5 µL
Pathlength	1 mm (auto-ranging to 0.05 mm)
Light Source	Xenon flash lamp
Detector Type	2048-element linear silicon CCD array
Wavelength Range	190 – 840 nm
Wavelength Accuracy	+1 nm
Spectral Resolution	<1.8 nm (FWHM @Hg 253.7 nm)
Absorbance Precision	0.002 absorbance (1 mm path)
Absorbance Accuracy	±2% (at 0.76 absorbance at 257 nm)
Absorbance Range	0.02 -300 (10 mm equivalent)
Detection Limit	2 ng/µL dsDNA
Maximum Concentration	15,000 ng/µL (dsDNA)
Measurement Time	<5 seconds
Footprint	14 cm x 20 cm x 8.5 H
Weight	4.6 lbs. ( 2.1 kg )
Sample Pedestal Material of Construction	303 stainless steel and quartz fiber



Specifications - Cuvette Mode:
Beam Height	8.5 mm
Heating	37°C, ±0.5°C
Stirrer	150-850 RPM
Pathlength	10, 5, 2 and 1 mm (auto-ranging to 0.05 mm)
Detection Limit	0.4 ng/µL dsDNA
Maximum Concentration	750 ng/µL (dsDNA)
Measurement Time	<3 seconds
Weight	2.1 kg
