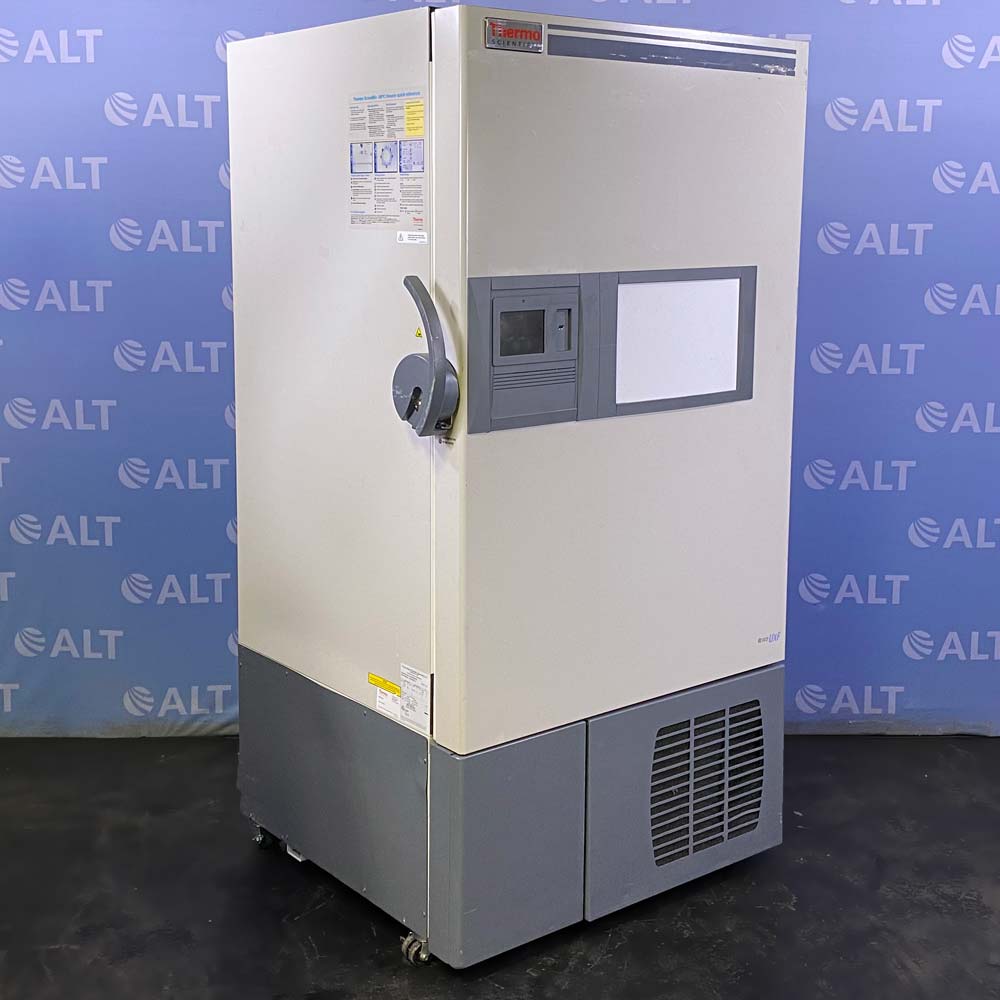

Thermo Scientific Revco UxF -86C Upright Ultra-Low Temperature Freezer Model UXF60086D
ITEM: 30289 Out of Stock
Price: $0.00
Your Trusted Source for Used Lab Equipment
Free 90 Day Warranty
Up to 3 Year Warranty Upgrade Available
Tested & Refurbished Prior to Shipping
Out of stock
The Thermo Fisher Scientific Revco -86C Upright Ultra-Low Temperature Freezer, Model UXF60086D, stores and protects the optimum capacity of the most critical samples. This freezer achieves outstanding thermal performance, safety and security through state-of-the-art engineering an is designed to maximize temperature uniformity and sample storage while minimizing energy use.
Features:
- Maximize sample storage capacity while minimizing the freezer’s physical space inside the lab
- Protects against a wide range of voltage variation and is easily accessible through the touch-screen display
- 4-20 milliamp output compatible with external alarm and monitoring systems
- Two rear access, 1″ (25mm) ports allow for the use of inexpedient probes or instrumentation
- Easy-to-remove, washable filter provides protection against dust on the condense

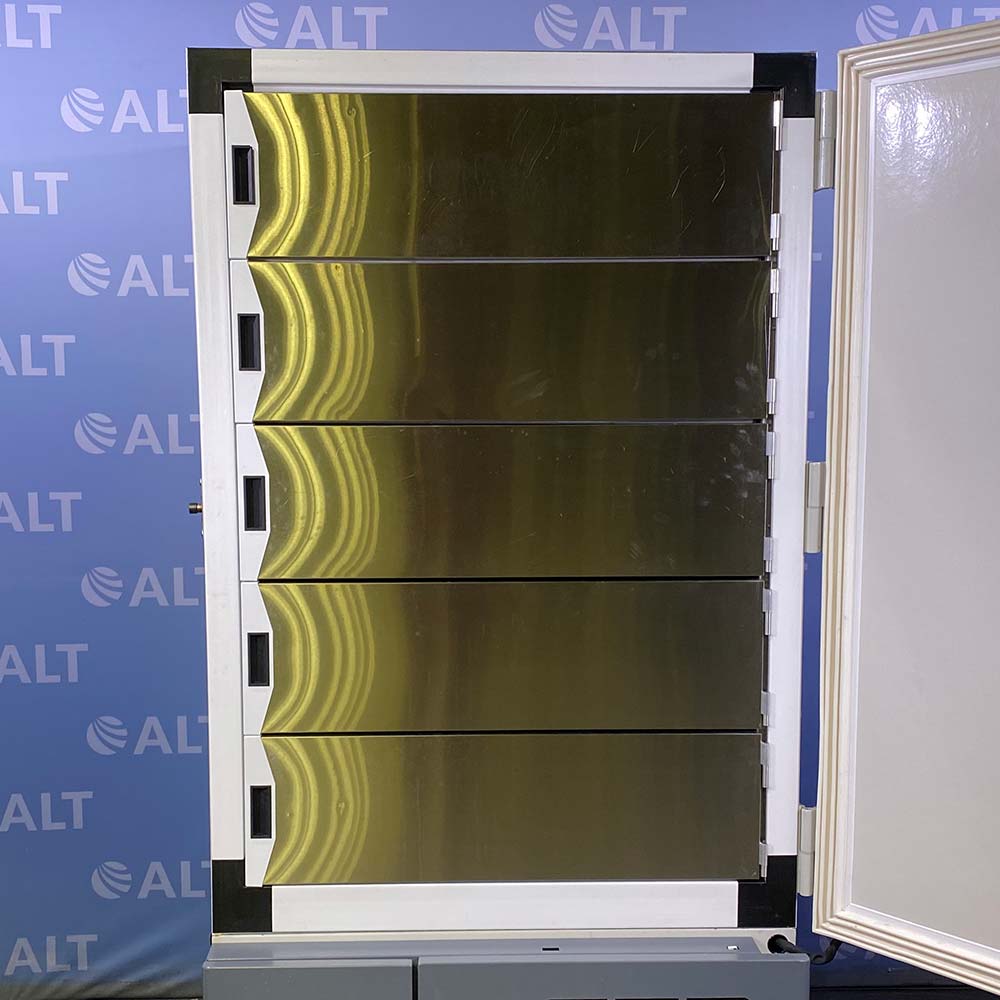

- Five polystyrene insulated inner doors help maintain cabinet temperature during openings and feature embedded rare earth magnets, eliminating exposed latches or magnets
- Refrigeration system with high-efficiency compressors for excellent performance and reliability
- Outstanding BTU reserve which leads to fast door recovery times so that sample integrity isn’t compromised
- CFC/HCFC free refrigerants
- On-board data storage stores up to 15 years worth of temperature and event data
- Innovative touch-screen control panel that allows 24/7 monitoring of the freezer’s health
- Built in USB port enables easy downloading of event log reports to a portable drive
| Specifications: | |
| Temperature Range | -50°C to -86°C |
| Capacity | 28.8 cu. ft. (815 L); Holds 600 boxes |
| Vial Capacity | 60,000 x 2mL |
| Power | 220 V, 60 Hz, 16 A 1200 W |
| Plug Type | NEMA 5-20 |
| Dimensions, Exterior | 43.6″ W x 37.6″ D x 78″ H (111 x 96 x 198 cm) |
| Dimensions, Interior | 34.4″ W x 28.3″ D x 51.2″ H (87 x 72 x 130 cm) |
| Weight | 854 lbs. (388 kg) |
| Display | Touch-Screen LCD |
| Shelf Capacity | 245 lbs. (111 kg.) |
| Chart Recorder | 7-day Ink or Inkless (Optional) |
| Footprint | 11.38 sq. ft. (1.06 sq. meters) |
| Health Monitoring | On Screen, Log File |
| Inner Doors | 5 |
| Operating Modes | High Performance or Energy Efficiency |
| Peak Variation at -80C | +2.9/-4.9°C |
| Warm up Time -80°C to -50°C | 240 min. |
| Door Style | 1 Outer, 5 Inner |
| Compressor | Hermetic Compressor |
| Insulation | Vacuum Panel and Water Blown Foam |
| Monitoring Options | Alarm, Recorder |
| Certifications/Compliance | CE, cULus, UL |
| Interior | Painted Steel – Standard, Stainless Steel – Optional |
| Data Outputs | RS-485, 4-20mA, dry contacts – standard |
| Door Opening Recovery | 33 min. |
| Energy Usage | 17/21.3kW-hr/day |
| Line Voltage Indicator | Line voltage and Buck/Boost |
| On-Board Datalogging | Standard |
| Condenser Type | Fin and Tube, Forced-Air Cooled |
| Material | Polyurethane Foam (Insulation), Stainless Steel (Shelves) |
