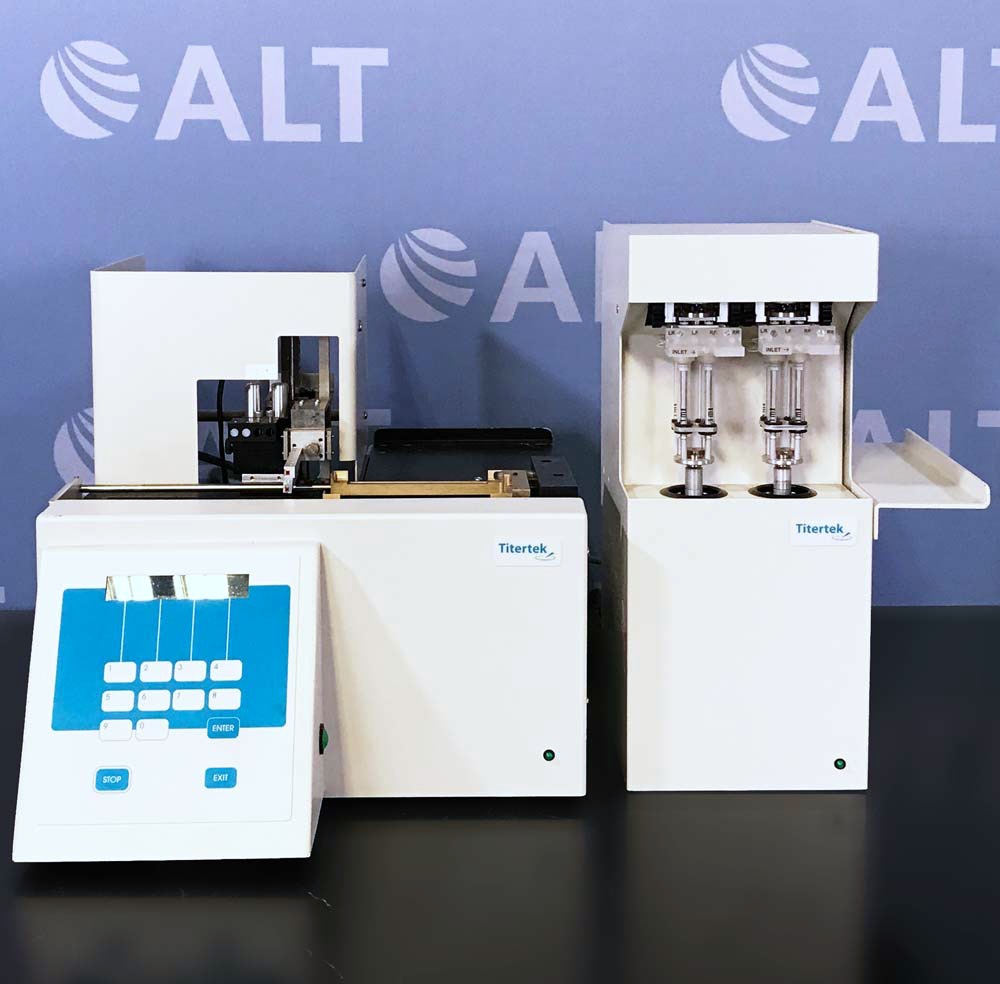

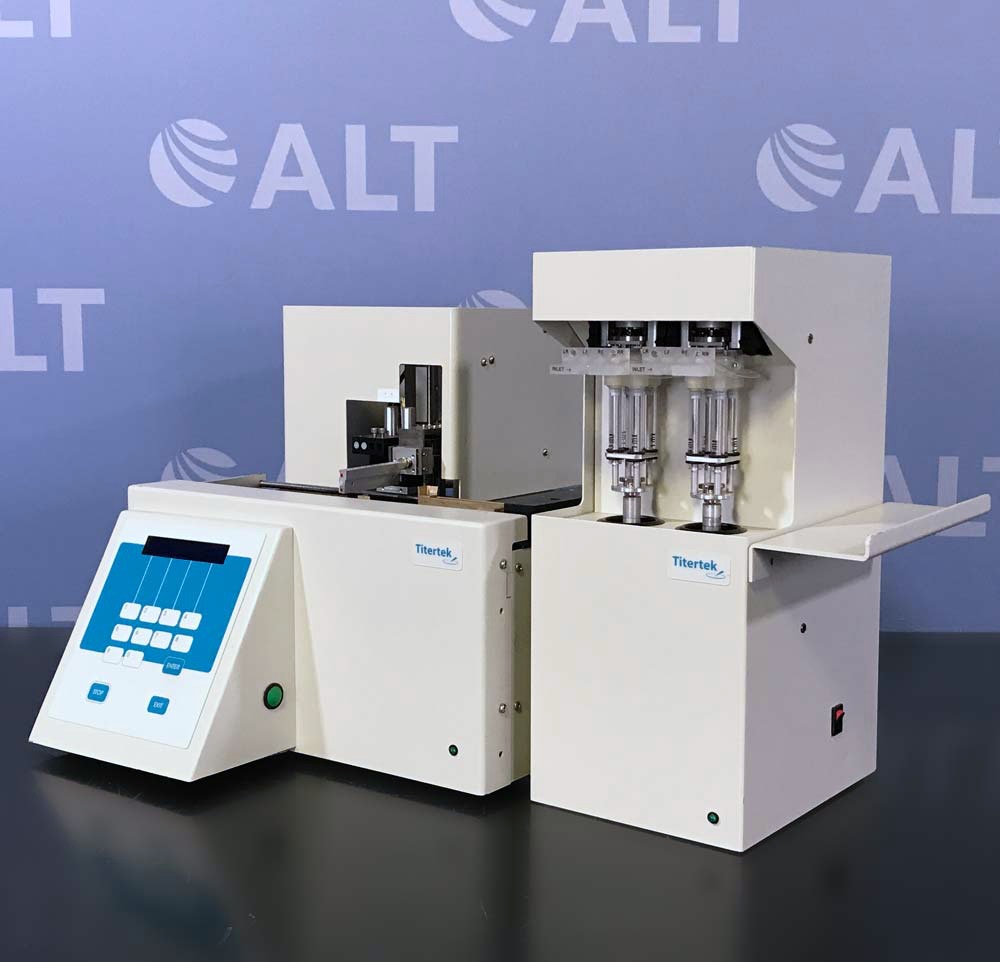

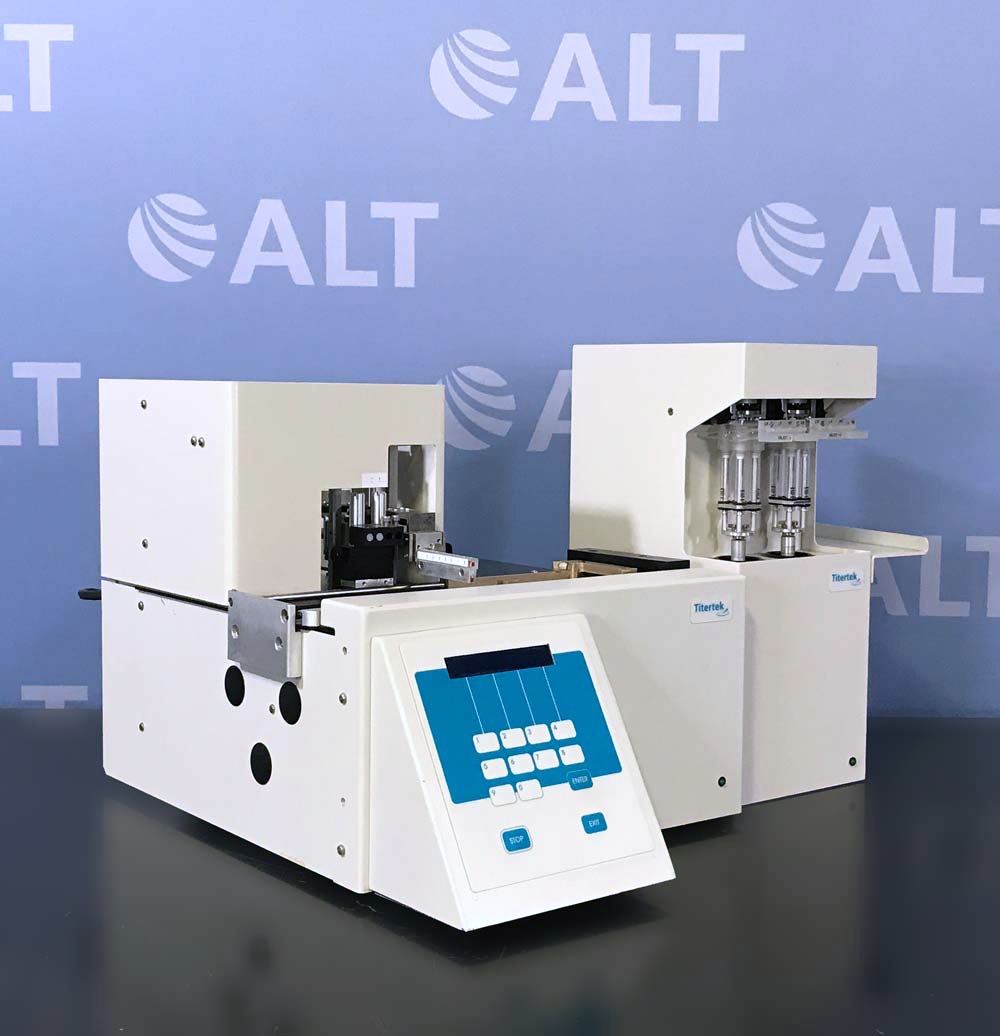

Titertek Zoom Microplate Washer with Dispense Module

The Titertek Zoom Washer frees up your valuable time. It is easy-to-operate and is virtually maintenance free. The standard configuration Zoom Microplate Washer supports single plate washing. The Zoom HT Microplate Washer processes batches of microplates via an integrated stacker. The Zoom Washer’s functionality is easily extendable with an optional two reagent Dispense Module.

The robust, yet precise, mechanics of the Zoom Washer ensures excellent accuracy and precision of washing and dispensing for the lifetime of the instrument. The 96-channel wash head allows rapid and accurate washing of 96- and 384-well plates. The precision mechanics facilitates fast and exact positioning during all steps of the washing process.

The Zoom Washer is compatible with both 96- and 384-well plates. Various programming options ensure maximum flexibility and easy set-up of individual wash routines. From fast and vigorous ELISA washing to slow and gentle, low-adherent cell washing, the Zoom Washer delivers optimum results for a variety of applications.

The Zoom Washer can be used for a wide range of applications without modifications or upgrades. This exceptional flexibility makes the Zoom Washer an ideal tool for applications such as:

• ELISA
• Cell based assays
• Loosely adherent cell layer washing
• Microplate coating
• Multiplex assays

Specifications – Zoom Washer:

• Microplate Types: 96- and 384-well, standard height and low profile.
• Wash Manifold: 96-channel.
• Dispense Accuracy: ± 2% typical @ 50–300 µl range.
• Dispense Precision: ≤ 2% CV @ 200 µl, ≤ 3% CV @ 100 µl, ≤ 4.5% CV @ 50 µl.
• Wash Volume: 1–2000 µl selectable in 1 µl increments.
• Residual Volume: < 2 μl/well.
• Wash Fluid Flow Rate: 1-7.
• Aspirate Tip Descent Speed: Fast/Medium/Slow.
• Wash Mode: Regular and Superwash.
• Soak Time: 0–99 s.
• Number of Programs: 1–99.
• Wash Cycles per Program: 1–99.
• Wash Fluid Selection (Option): Automatic switching for up to 4 wash fluids.

Specifications – Dispense Module:

Using Two 4-in-1 1ml Syringes:

• Number of Reagents: 1.
• Liquid Delivery: 8 independent tips.
• Dispense Volume: 5–300 μl.
• Dispense Accuracy: ± 1% @ 5–100 μl range.
• Dispense Precision: ≤ 2.5%CV @ 20–100μl range; ≤ 3.5%CV @ 10 µl; ≤ 3.5%CV @ 5 μl.
• Dispense Speed: Fast/Medium/Slow.
• Liquid Path Materials: Glass, Teflon® and Kel-F.

Using Two 10ml Syringes:

• Number of Reagents: up to 2.
• Liquid Delivery: 8-or 16-tip manifold, each channel.
• Dispense Volume: 10–300 μl.
• Dispense Accuracy: ± 1% @ 5–100 μl range.
• Dispense Precision: ≤ 3.0%CV @ 20–100μl range; ≤ 5.0%CV @ 10 µl; ≤ 7.5%CV @ 5 μl.
• Dispense Speed: Fast/Medium/Slow.
• Liquid Path Materials: Glass, Teflon® and Kel-F.

Plate Processing Speeds:

• Wash only (Zoom Washer):
• 1 cycle 300 µl: 7 s (96-well plate).
• 3 cycles, 300 μl each: 17s (96-well plate).
• 3 cycles, 75 μl each: 38 s (384-well plate).
• Wash (3 Cycles) & Dispense (Zoom Washer with Dispense Module):
• 300 μl each, followed by immediate 50 μl dispense: 30 s (96-well plate).
• 75 μl each, followed by immediate 20 μl dispense: 55 s (384-well plate).

Physical Specifications:

• Dimensions (Zoom Washer): 15″ W x 22″ D x 14″ H (38 x 56 x 36 cm)
• Weight: 48 lbs (17 kg)
• Power Consumption: 80VA
• Power Requirements: 230V 50 Hz; 115V 60 Hz
• Interface: USB, Serial Interface
• Operating Temperature: 10–40° C, 50–104° F.
• Dimensions (Dispense Module): 6.7″ W x8.7″ D x15.8″ H (17 x 22 x 40 cm)
• Weight: 26 lbs (12 kg)
• Power Consumption: 175VA. 230V
• Zoom Microplate Washer Model No.: 62052
• Dispense Module Model No.: 62094
