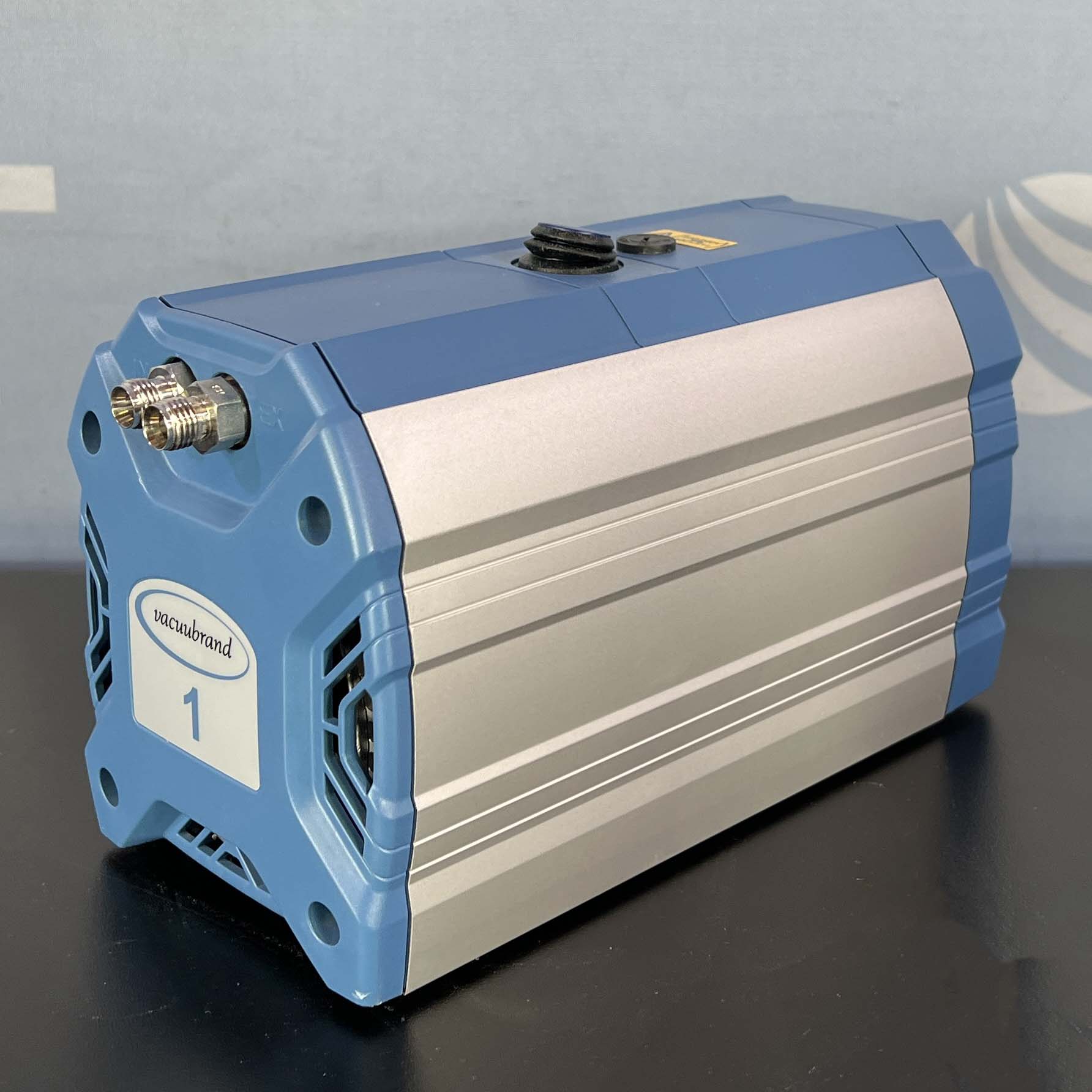

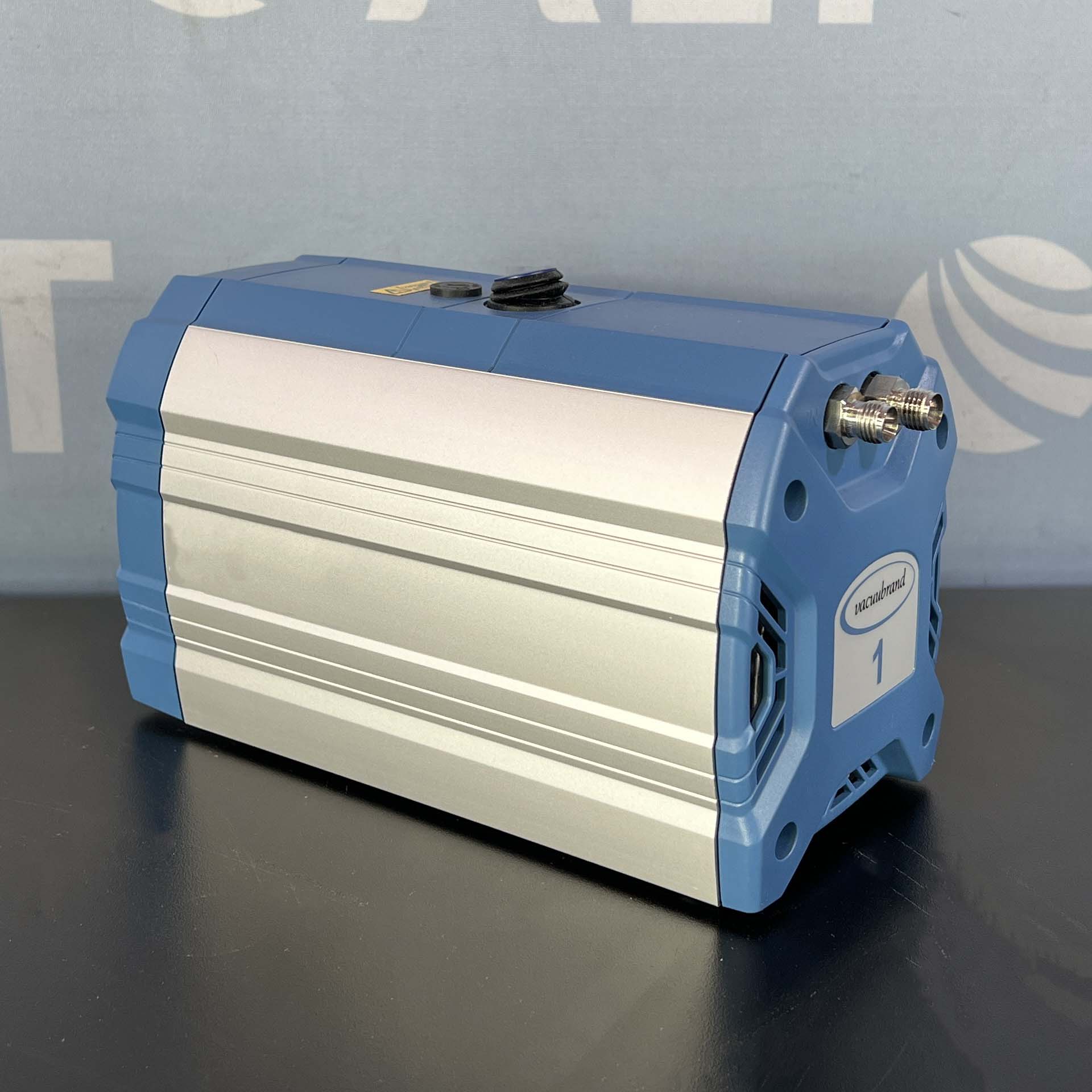

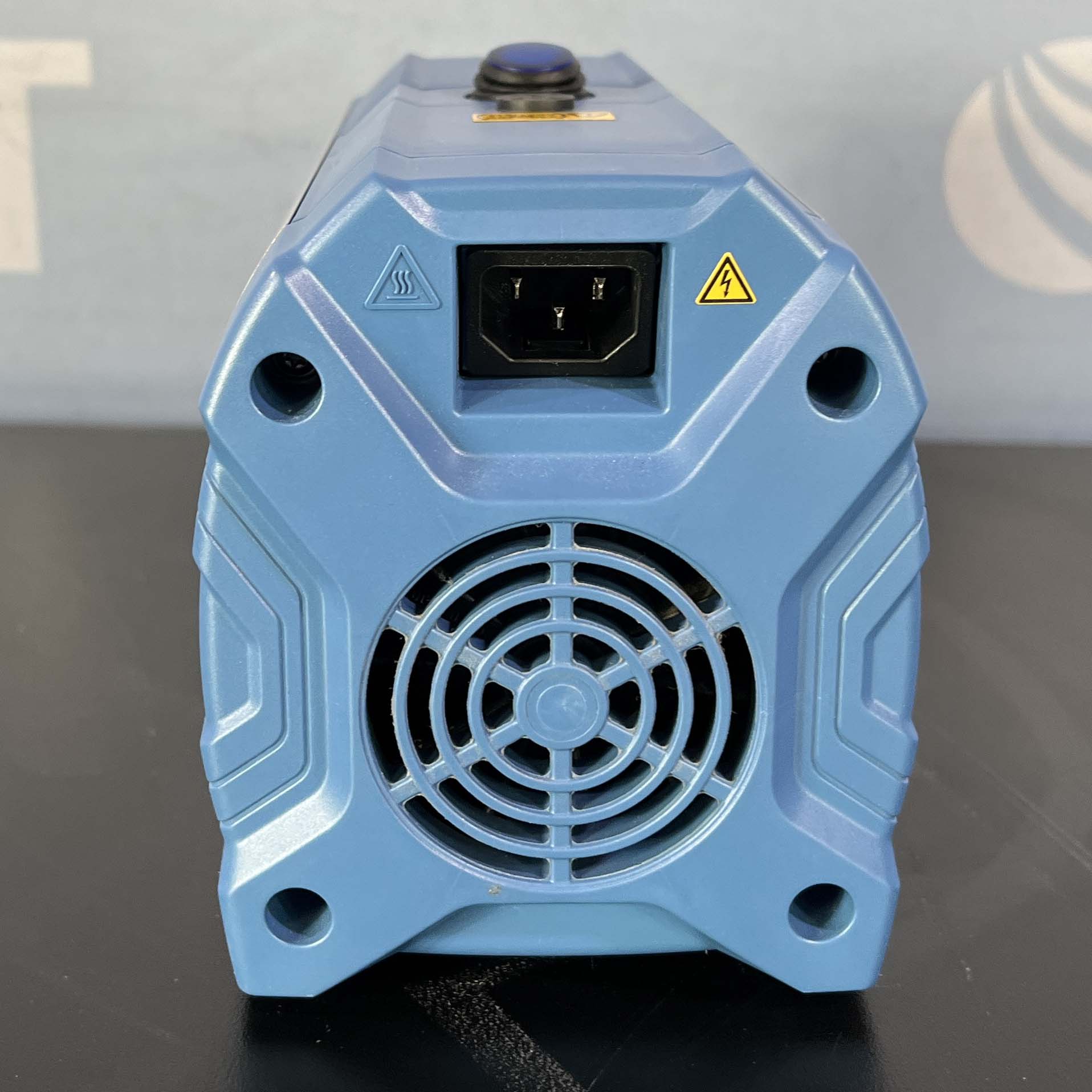

Vacuubrand ME 1 Diaphragm Vacuum Pump

Vacuubrand ME 1 Diaphragm Vacuum Pump Image

ITEM: 32705 In Stock

  • Free 90 Day Warranty
  • One Year Upgrade Available
  • Tested & Serviced Prior to Shipping

Or call (860) 691-2213

Vacuubrand ME 1 Diaphragm Vacuum Pump ImageVacuubrand ME 1 Diaphragm Vacuum Pump ImageVacuubrand ME 1 Diaphragm Vacuum Pump ImageVacuubrand ME 1 Diaphragm Vacuum Pump Image

The Vacuubrand ME 1 Diaphragm Vacuum Pump is a compact, high performance pump that is easy to use and perfect for single port filtrations. It is a popular choice for many applications including chemistry, vacuum sample preparation, microbiology research, and waste water control.

Features:

  • Convenient, quick and simple to use due to the new top mounted power switch
  • Whisper quiet and very low vibration
  • Uses minimal benchtop space
  • Maintenance-free drive system and proven long diaphragm life
    wetted materials: PTFE, aluminum

Specifications:

Max. pumping speed 50 Hz: 0.7 m3/h Select diagram
Max. pumping speed 60 Hz: 0.5 cfm Select diagram
Ultimate vacuum: 100 mbar / 75 torr
Number of heads: 1
Number of stages: 1
Lower ambient temperature (operation): 10 °C
Upper ambient temperature (operation): 40 °C
Lower ambient temperature (storage): -10 °C
Upper ambient temperature (storage): 60 °C
Max. back pressure (abs.): 1.1 bar
Inlet connection: Hose nozzle DN 6-10 mm
Outlet connection: Silencer / G1/8"
Rated motor power: 0.04 kW
Rated motor speed at 50/60 Hz: 1500/1800 min-1
Protection class IEC 60529: IP 40
Dimensions: 10.6" W x 4.76" D x 6.1" H inches (27 x 12.1 x 15.5 cm)
Weight 11.9 lb (5.4 kg)
Noise: 49 dBA
NRTL certification: Yes
