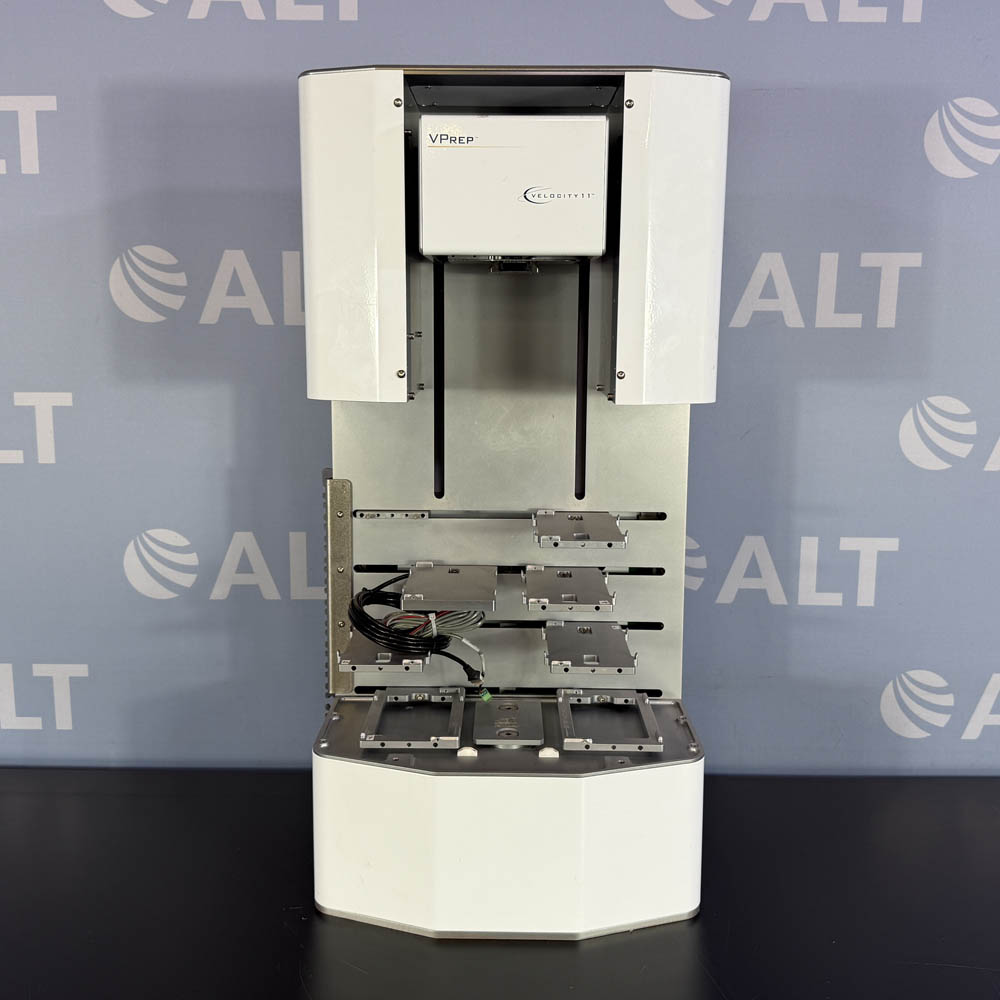

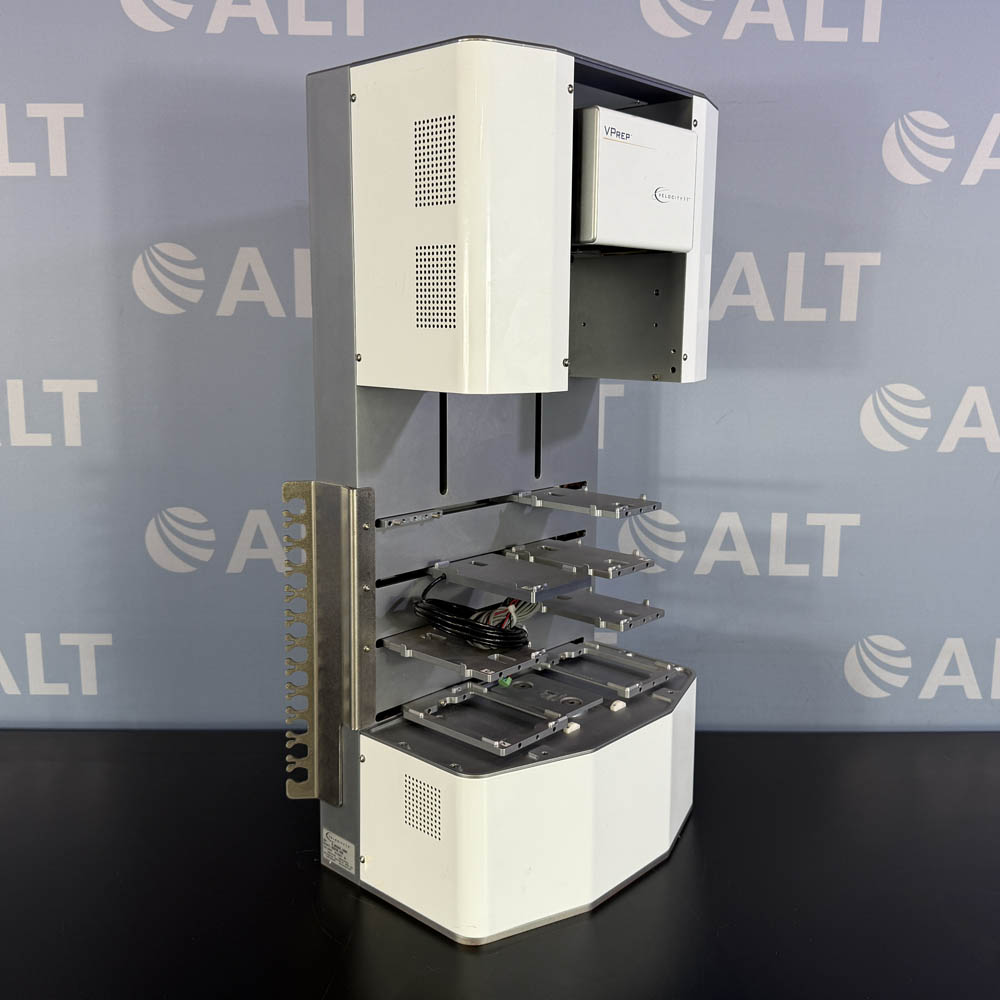

Velocity 11 VPrep Model 02318.102

The Agilent VPrep Velocity 11 Model 02318.102 is Agilent’s VPrep® pipetting station.  It is the fastest precision pipettor on the market.  The VPrep features a choice of interchangeable heads, including a 96-, 384-, 8- or 16-channel.  Eight sliding shelves are arranged on either side of the pipetting head permitting access to the plates, while conserving deck space.  The VPrep’s head is fitted with a 2 axis positioning stage providing access all quadrants of 96, 384, and 1536 well microplates.  The shelves can be custom fitted with vacuum manifolds (to position warped PCR plates), autofilling reagent shelves, or a tip washing station.  An intuitive user interface allows the operator to create and run complex pipetting protocols with ease.  Available either as a stand alone unit or integrated into a larger robotic platform, the VPrep will significantly reduce cycle time for your most demanding pipetting protocols.

Specifications:

• Plate Capacity: 8
• Height: 78.7 cm (31.0”)
• Width: 38.1 cm (15.0”)
• Length: 25.9 cm (10.2)
• Weight: 37.2 Kg (82 lbs)

Operational Requirements:

• Electrical: 100-208 VAC, 50/60 Hz, 4 amps
• Air: 6.2-6.9 bar (90-100 psi)
• Vacuum Requirements (with vacuum shelves only): 33.86 KPa (25 in. Hg)
• Operating Temperature: 5-40 C, 10-90% RH
• Software: VWorks Automation Control Software, ActiveX control
• PC System: Windows XP
• Interface: RS-232 Serial
• Certification: CE certified
