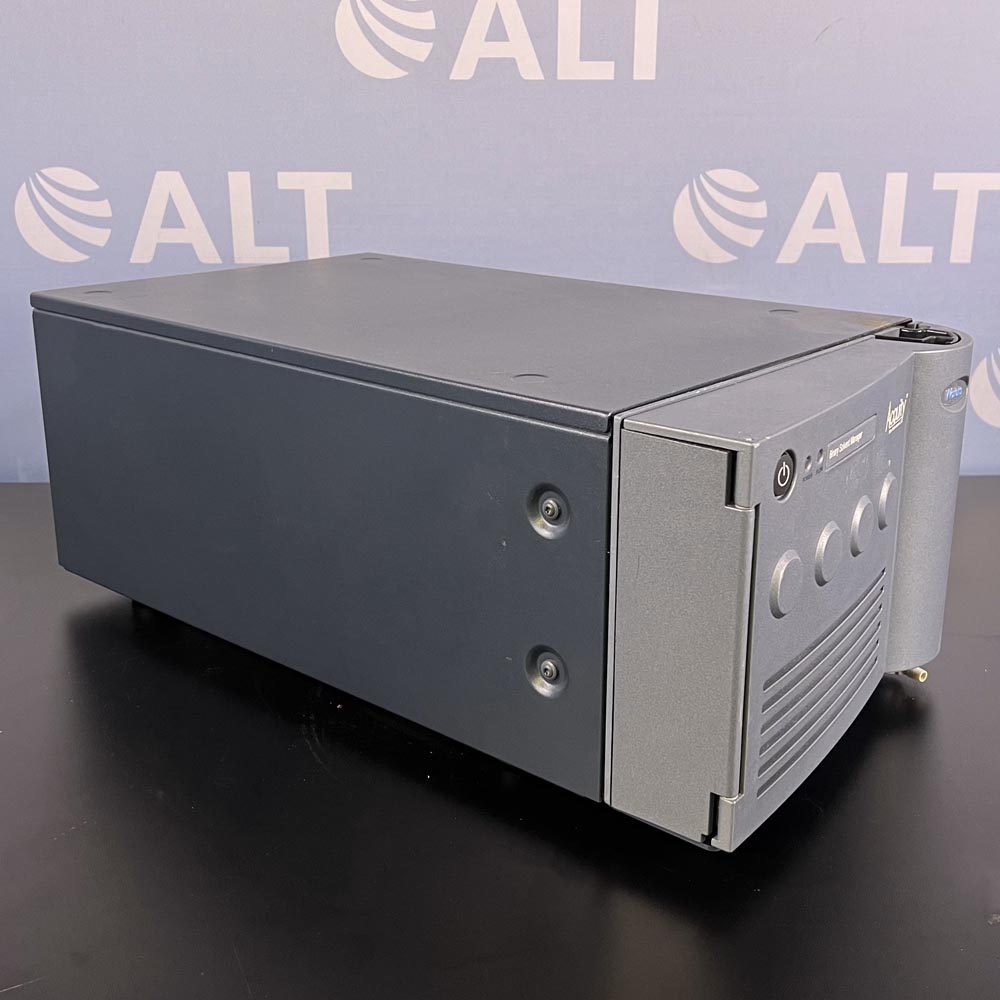

Waters Acquity Binary Solvent Manager

The Waters Acquity Binary Solvent Manager is a high-pressure pump that moves solvent through the system. It provides steady (pulse-free) solvent flow at analytical flow rates. The binary solvent manager delivers solvent at flow rates of 1 mL/min at 103,421 kPa (1034 bar, 15,000 psi) and up to 2 mL/min at reduced pressures to 62,053 kPa (621 bar, 9000 psi). The Waters Acquity Binary Solvent Manager can pump two solvents simultaneously.

Specifications:

Number of Solvents: Up to four
Solvent Conditioning: Vacuum degassing (six-channel): one channel per solvent, and two channels for Sample Manager wash solvent
Operating Flow Range Rate: 0.010 to 2.000 mL/min, in 0.001 mL increments
Compressibility Compensation: Automatic and continuous
Effective System Delay Volume: < 120 μL, independent of system backpressure (with standard 50-μL mixer installed)
Plunger Seal Wash: Integral, active, programmable
Gradient Profiles: Eleven gradient curves [including linear, step (2), concave (4), and convex (4)]
Wet Prime Automatic
Maximum Operating Pressure: 15,000 psi up to 1 mL/min, 9,000 psi up to 2 mL/min per pump, not more than 15,000 psi total
Composition Accuracy: ±0.5% absolute (full scale) from 5 to 95% of flow rates from 0.5 to 2.0 mL/min (Contact Waters for conditions used)
Composition Precision: 0.15% RSD or ±0.04 min SD, whichever is greater, based on retention time
Flow Precision: 0.075% RSD or ±0.02 min SD, six replicates, based on retention time or volumetric measures (0.500 to 2.000 mL/min)
Flow Accuracy: ±1.0% at 0.5 mL/min with degassed methanol, per Waters AQT/SystemsQT protocol
Primary Wetted Materials: 316 stainless steel, UHMWPE, sapphire, ruby, FEP, PTFE, ETFE, diamond-like coating, PEEK and PEEK alloys, titanium alloys
Power: 120V, 60Hz
