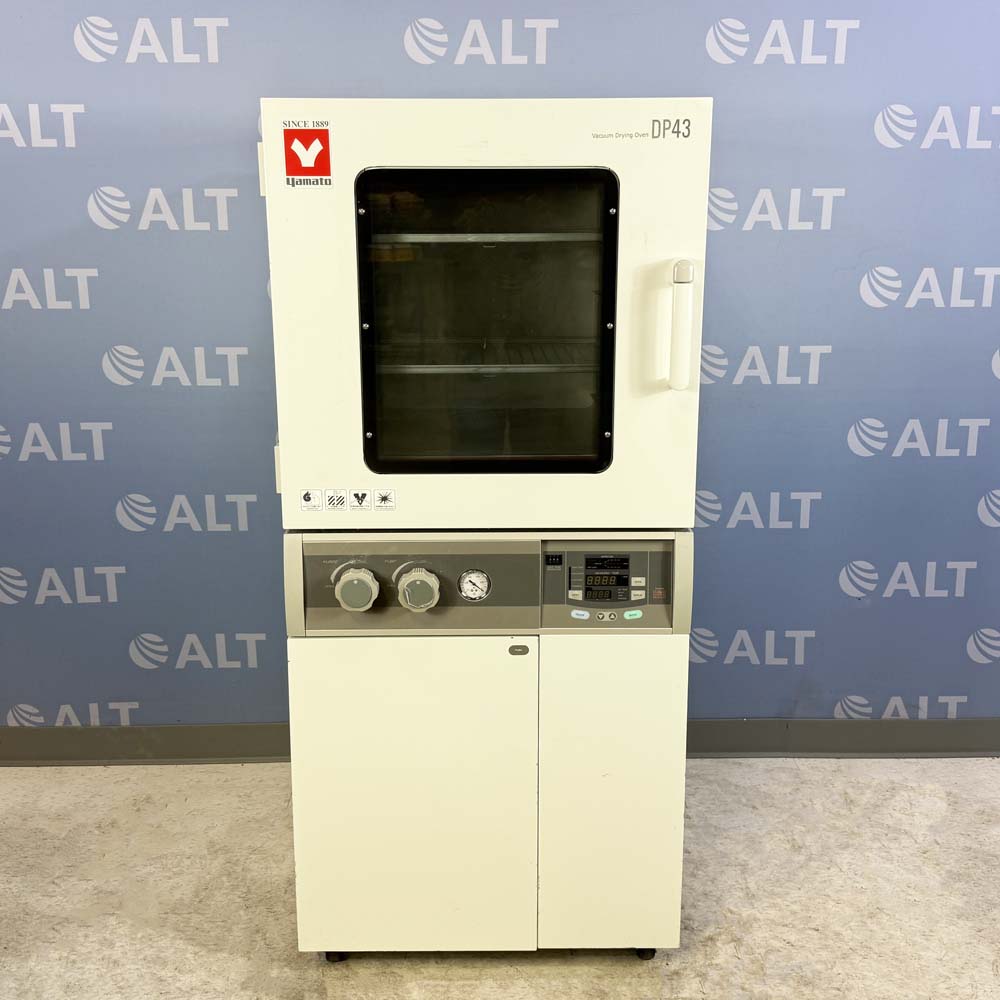

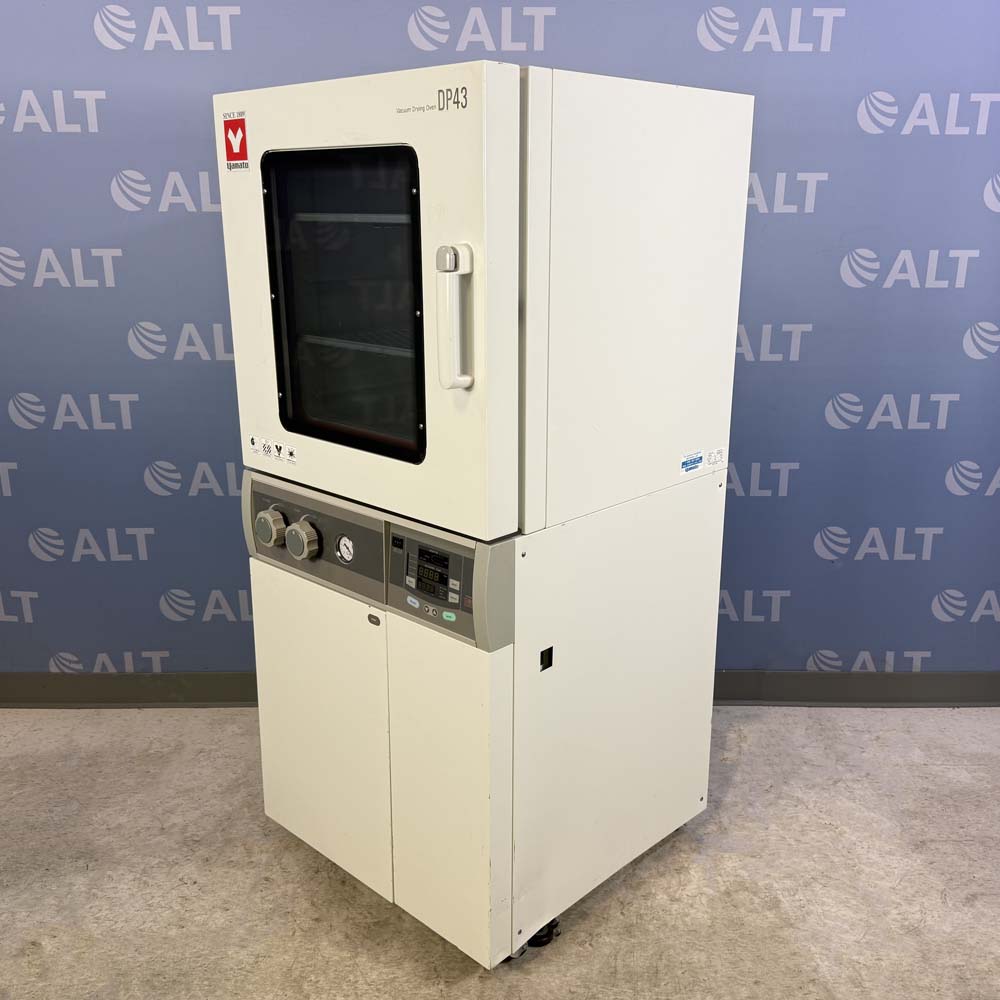

Yamato DP43 Large Vacuum Drying Oven

The Yamato DP43 Large Vacuum Drying Oven is a reliable choice for laboratories needing precise and efficient drying capabilities. With a spacious chamber and advanced vacuum technology, this oven is ideal for applications requiring uniform and rapid drying processes.

Key Features & Benefits:

• Large internal capacity: 91 L for accommodating bulk samples
• PID microprocessor control system ensures accurate temperature management

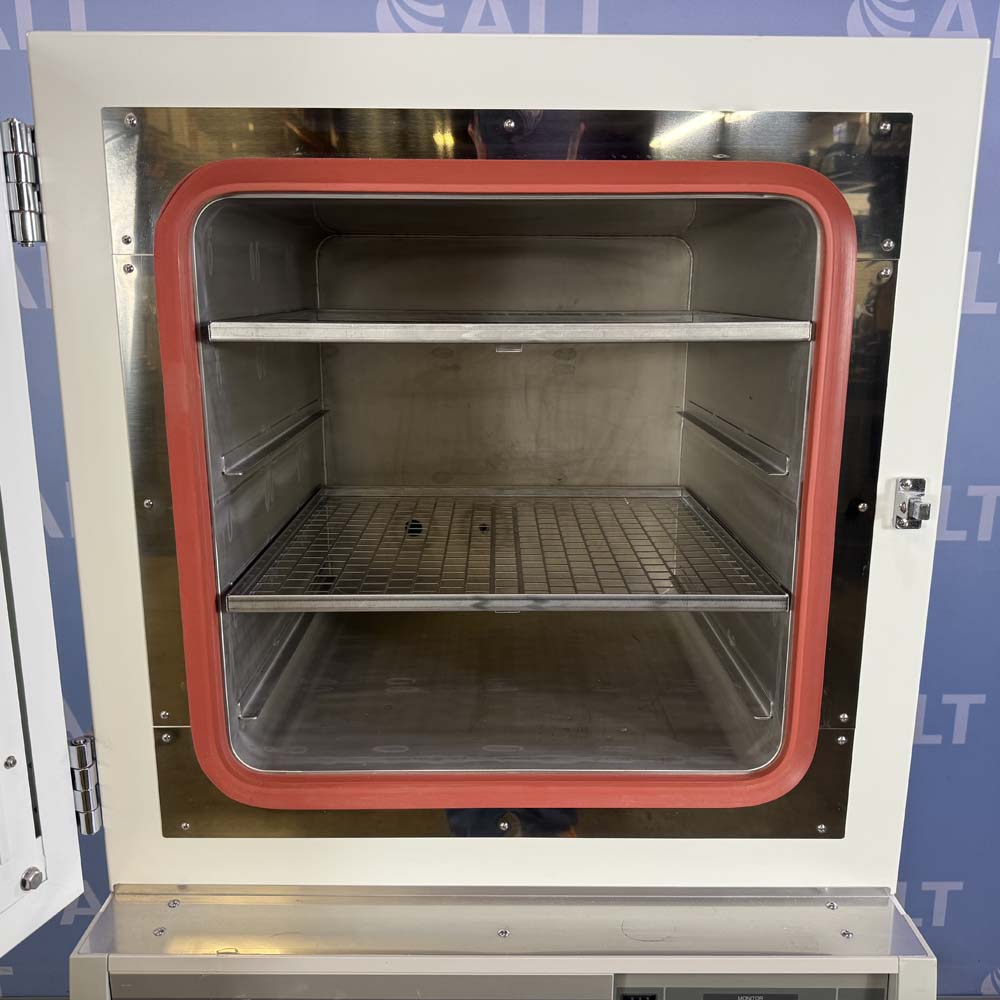

• Stainless steel interior for durability and easy cleaning
• High-quality vacuum pump for efficient drying under vacuum conditions
• Tempered glass & polycarbonate resin plate window for easy observation

Specifications:

• Operating temperature range: 40°C to 200°C
• Operating pressure range: 101 to 0.1 kPa (760 to 1 Torr)
• Temperature control accuracy: ±1.0°C (at 200°C)
• Timer: 1 min. to 99 Hrs. 59 min and 100 Hrs to 999 Hrs and 50 min
• Internal Dimensions: 450×450×450 mm
• External Dimensions: 670×669×1500 mm
• Internal Capacity: 91L
• Weight: 190 kg
• Electrical Requirements: 220 V, 60 Hz, single phase, 11 A
• Includes Edwards RV8 pump
