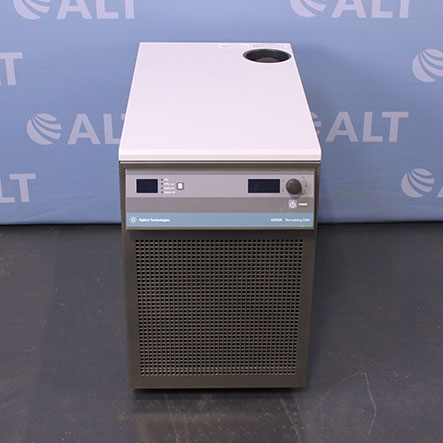

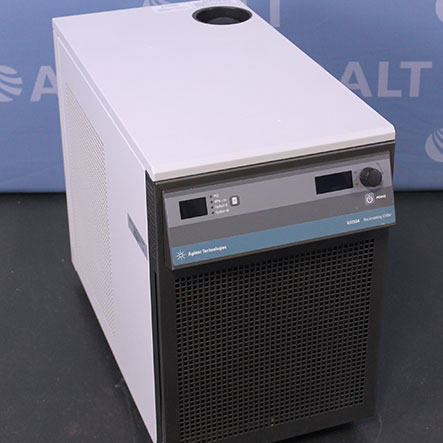

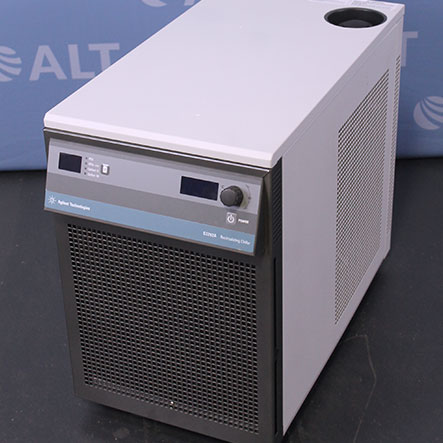

Agilent G3292A – PSC 6106T Chiller

The Agilent Technologies G3292A – PSC 6106T Chiller is the preferred cooling system for the 8900 Triple Quadrupole ICP-MS, and works with many Agilent systems as well.

Specifications:
– Electrical requirements: 208-230VAC, 60Hz, 12.2A
240VAC, 50Hz, 12.2A
– Maximum power consumption: 2,900W
– Heat dissipated: 3,200W (maximum)
– Heat absorbed: 1,600 (,2000 maximum)
– Flow rate: > 5 L/min (1.32 us gallons/min)
– Temperature: 15-40°C at water inlet of ICP-MS
– Weight: 85 kg (188 lb.)
– Dimensions (W x H x D): 14.5 x 22.7 x 27.6 in. (36.8 x 57.6 x 70.2 cm)
