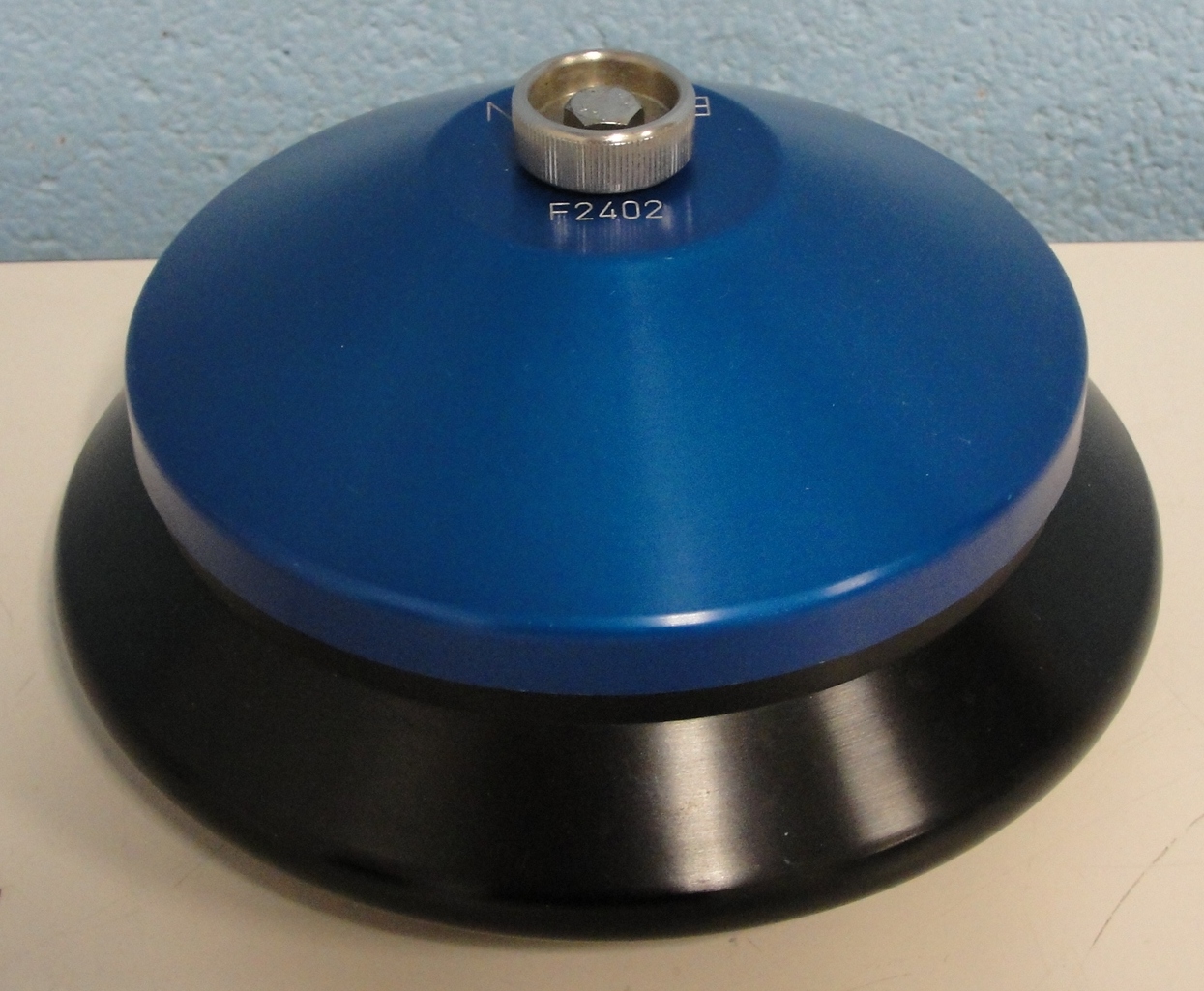

Beckman Coulter F2402 Fixed Angle Rotor

The Beckman Coulter F2402 Rotor is a fixed-angle rotor with a tube angle of 45 degrees from the axis of rotation. The rotor can centrifuge up to twenty-four 1.5 to 2.0-mL reaction-vials, as well as 250- to 750-uL vials.

Specifications:
– Rotor material: Aluminum
– Maximum speed: 26,000 rpm
– Density rating at maximum speed: 1.2 g/mL
– Maximum Speed rMax: 60,460 × g
– Number of tube cavities: 24 places
– Nominal tube dimensions: 11 × 45 mm
– Nominal tube capacity: 2 mL
– Nominal rotor capacity: 48 mL
– Approximate acceleration time to maximum speed: 70 sec
– Approximate deceleration time from maximum speed: 50 sec
– Weight of fully loaded rotor: 2.06 kg (4.25 lb)
