Your Trusted Source for Used Lab Equipment
Category: Incubators - Ovens | Subcategory: Incubators | Manufacturer: Binder

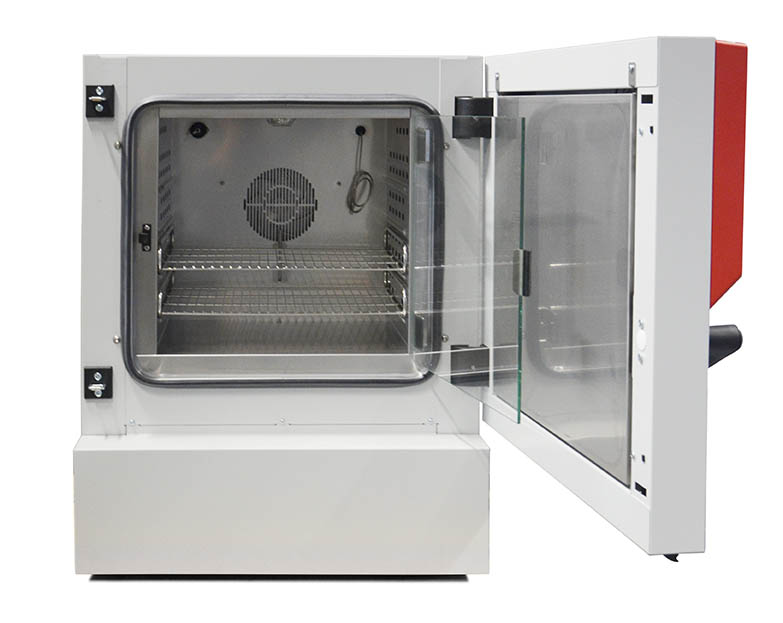

Binder Series KB 115 – Refrigerated Incubator
ITEM: 25697 Out of Stock
Price: $0.00
Your Trusted Source for Used Lab Equipment
Free 90 Day Warranty
Up to 3 Year Warranty Upgrade Available
Tested & Refurbished Prior to Shipping
Out of stock
NEW from manufacturer! Comes with 2 year manufacturer’s warranty.
Binder Series KB 115 – Refrigerated Incubator
| Designation | Series KB |
| Series feature | Cooling incubators with compressor technology |
| Important characteristics | * Temperature range: -5 °C to 100 °C * APT.line™ preheating chamber technology * Up to 30% lower energy consumption compared to the previous model * Cooling with compressor cooling unit * Door heating system from 240 liters * Adjustable fan speed * Controller with time-segment and real-time programming * Inner door made of tempered safety glass * 2 stainless steel racks * Units up to 115 liters are stackable * Access port with silicone plug from 240 L * Class 3.1 independent temperature safety device (DIN 12880) with visual and acoustic alarm * Computer interface: Ethernet |
| Features | * Temperature range: -5 °C to 100 °C * Up to 30% lower energy consumption compared to the previous model * Cooling with compressor cooling unit * Adjustable fan speed * Controller with time-segment and real-time programming * Inner door made of tempered safety glass |
| Text of Series | The powerful virtuoso in cooling incubators for microorganisms: the KB masters temperature ranges from -5 °C to 100 °C. The new KB series consumes up to 30% less energy compared to its predecessor. With its extensive programming options and homogenous incubation conditions even when fully loaded, this cooling incubator covers a wide range of applications. |
TECHNICAL DATA
| Description | KB115-230V * | KB115UL-120V * |
| Article Number | 9020-0242 | 9020-0253 |
| Performance Data Temperature | ||
| Temperature range | -5…100 | -5…100 |
| Temperature variation at 37 °C [± K] | 0.2 | 0.2 |
| Temperature fluctuation at 37 °C [± K] | 0.1 | 0.1 |
| Heating-up time to 37 °C [min] | 9 | 9 |
| Recovery time after 30 seconds door open at 37 °C [min] | 1 | 1 |
| Electrical data | ||
| Rated Voltage [V] | 230 | 120 |
| Power frequency [Hz] | 50 | 60 |
| Nominal power [kW] | 0.5 | 0.5 |
| Unit fuse [A] | 10 | 12.5 |
| Phase (Nominal voltage) [ph] | 1 | 1 |
| Measures – Outer dimensions | ||
| Width net [mm] | 835 | 835 |
| Height net [mm] | 1025 | 1025 |
| Depth net [mm] | 650 | 650 |
| Wall clearance back [mm] | 100 | 100 |
| Wall clearance sidewise [mm] | 100 | 160 |
| Measures – Doors | ||
| Inner doors | 1 | 1 |
| Unit doors | 1 | 1 |
| Measures – Internal Dimensions | ||
| Width [mm] | 600 | 600 |
| Height [mm] | 480 | 480 |
| Depth [mm] | 400 | 400 |
| Measures | ||
| Interior volume [L] | 115 | 115 |
| Net weight of the unit (empty) [kg] | 105 | 105 |
| permitted load [kg] | 50 | 50 |
| Load per rack [kg] | 20 | 20 |
| Environment-specific data | ||
| Energy consumption at 37 °C [Wh/h] | ||
| Energy consumption at 40 °C [Wh/h] | 115 | 115 |
| Sound-pressure level [dB(A)] | 47 | 47 |
| Fixtures | ||
| Number of shelves (std./max.) | 2/5 | 2/5 |
* All technical data is specified for unloaded units with standard equipment at an ambient temperature of +22 °C ±3 °C and a power supply voltage fluctuation of ±10 %. The temperature data is determined in accordance to BINDER factory standard following DIN 12880, observing the recommended wall clearances of 10 % of the height, width, and depth of the inner chamber. Technical data refers to 100 % fan speed. All indications are average values, typical for units produced in series. We reserve the right to change technical specifications at any time.
