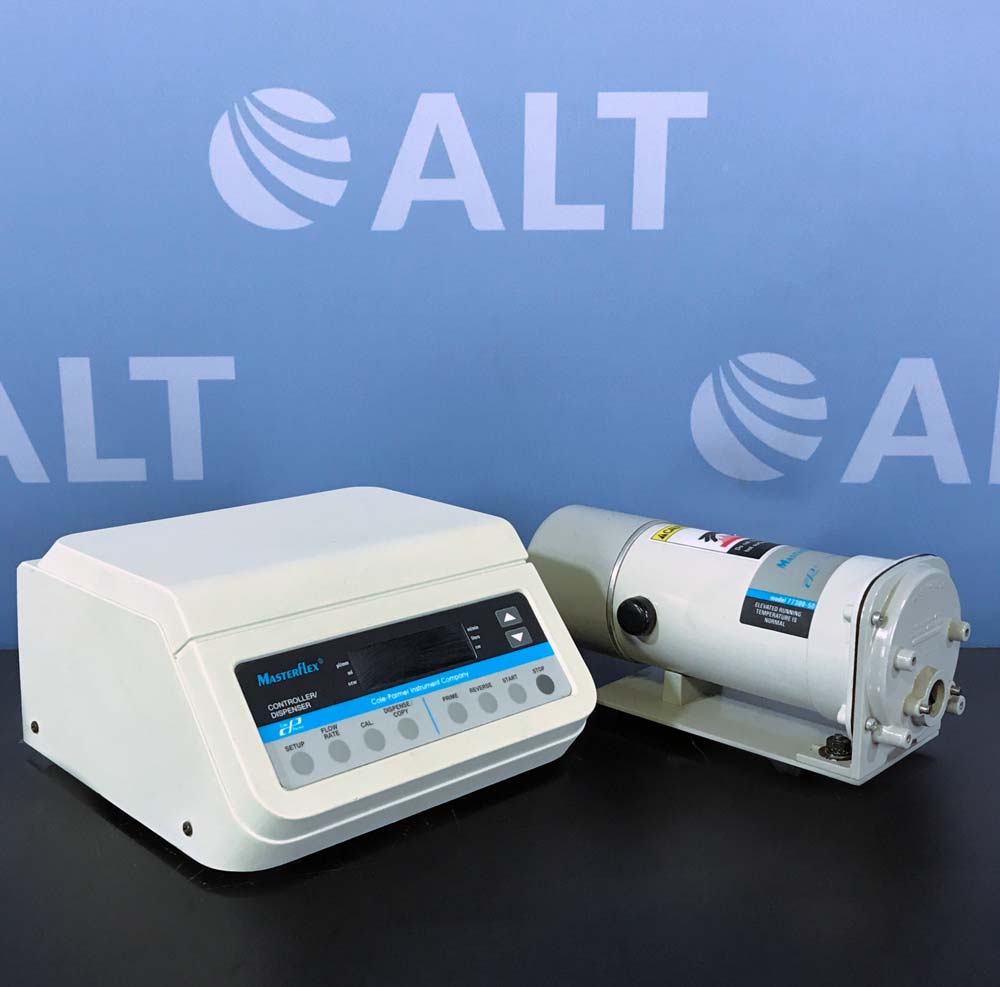

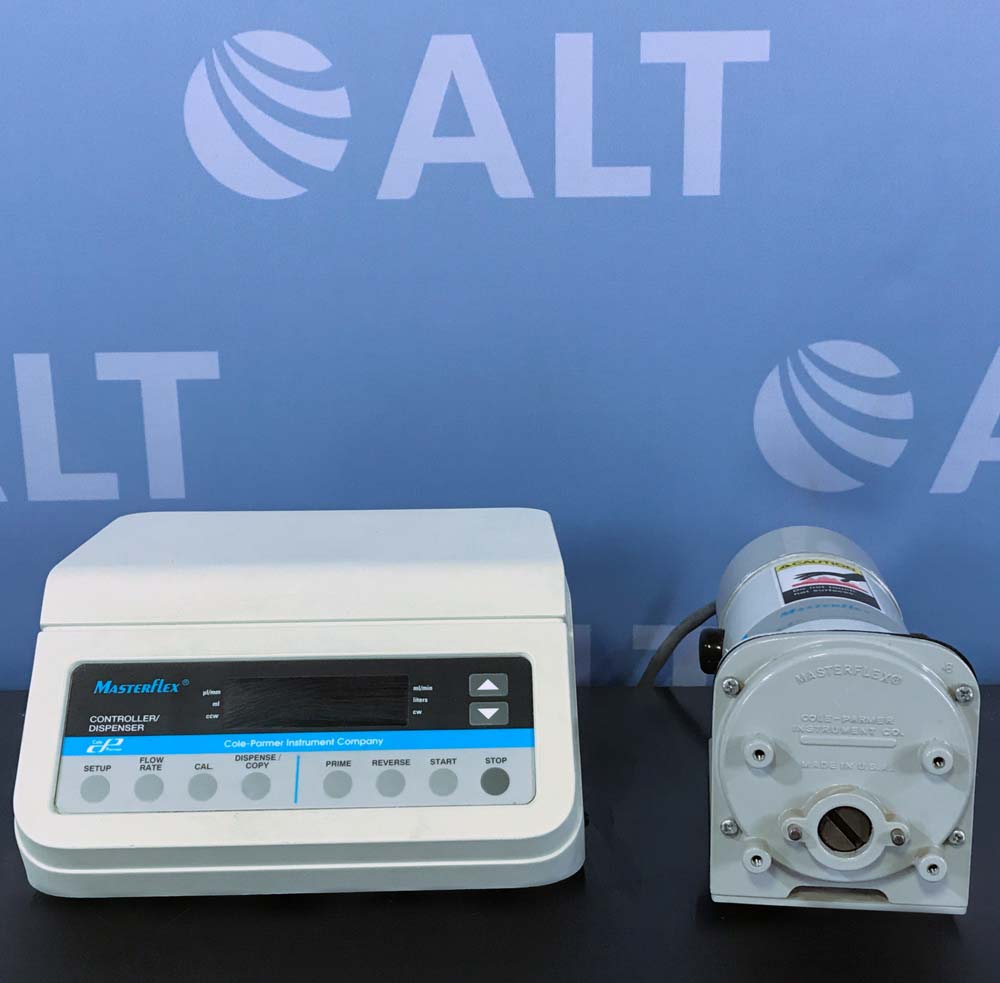

Cole-Parmer Masterflex L/S Controller/ Dispenser Pump System w/ Controller & Pump

The Cole Parmer Masterflex L/S Controller/Dispenser Pump System consists of a Controller and Pump  and is modularized to allow for easy setup and operation. The controller is connected to the pump drive via a multi-conductor cable. The controller has a membrane keypad and display showing volume, flow rate, tubing number and copy number. The pump has a 1/10 HP 600 RPM precision magnet DC motor capable of delivering 180 oz in torque.

The pump is ideal for fast tubing changes and reduced maintenance. Its patented design and adjustable tubing retention allow for multiple tubing sizes and you can change tubing without removing the head from drive. Accepted tubing sizes are as followed; L/S 13, L/S 14, L/S 16, L/S 25, L/S 17, and L/S 18. The rotor is made of a stainless steel housing and three stainless steel rollers. It has fixed dimensions 4-1/2“W x 4”H x 2-1/2“D(11.4 x 10.2 x 6.4 cm).

Specifications:

• Speed Range: 10 to 600 RPM

• Torque: 180 oz-in @600 RPM continuous
• Controller Model No.: 77300-60
• Pump Model No.: 77300-50
