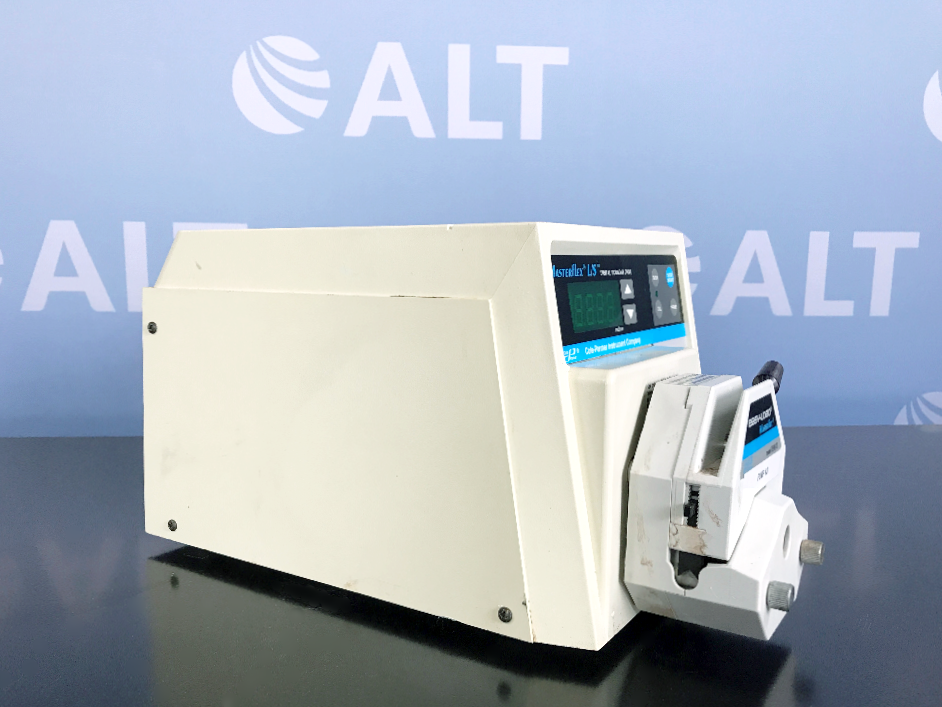

Cole-Parmer Masterflex L/S Digital Economy Drive Model 7524-50 with Masterflex L/S Easy-Load Pump Heads Model 7518-10

Features of the Cole-Parmer Masterflex L/S Digital Economy Drive Model 7524-50 with Masterflex L/S Easy-Load Pump Heads Model 7518-10, include:

– The design and adjustable tubing retention allow for multiple tubing sizes—change tubing without removing head from drive.
– Select either stainless steel (SS) or cold-rolled steel (CRS) rotor—choose CRS for economy or SS for greater durability and chemical resistance.
– Model 07518-60 with polyphenylene sulfide (PPS) housing and SS rotor offers enhanced chemical resistance.
– Each pump head for precision pump tubing accepts tubing sizes L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17, and L/S® 18. Achieve flow rates of 0.06 to 2300 mL/min (1 to 600 rpm)

Specifications:

– Pump Series: L/S
– Number of Channels; 1
– Max Flow Rate (mL/min): 2300
– Min Flow Rate (mL/min):0.0012
– Max Flow Rate Per Channel (mL/min): 2300
– Min Flow Rate Per Channel (mL/min):0.0012
– Housing Material: Polyphenylene Sulfide (PPS)
– Tubing Retention: Manual
– Occlusion; Average, fixed
– Optimum RPM Range (rpm): 0.02 to 600
– Rollers: Three; stainless steel
– Rotor Material: Stainless Steel
– Suction Lift (ft): 26.8
– Suction Lift (m): 8.2
– Gear Ratio; 1:1
– Tubing sizes accepted:L/S® 13, L/S 14, L/S 16, L/S 25, L/S 17, L/S 18
– Volume Per Revolution With L/S 13 Tubing (mL): 0.06
– Volume Per Revolution With L/S 14 Tubing (mL): 0.21
– Volume Per Revolution With L/S 16 Tubing (mL): 0.8
– Volume Per Revolution With L/S 25 Tubing (mL): 1.7
– Volume Per Revolution With L/S 17 Tubing (mL): 2.8
– Volume Per Revolution With L/S 18 Tubing (mL): 3.8
– Dimension (L x W x H): 2.5 x 4.5 x 4 in (64 x 114 x 102 mm)
– Open-Head Sensor: No
– Description: L/S Easy-Load Pump head for precision tubing; PPS housing, SS rotor.
