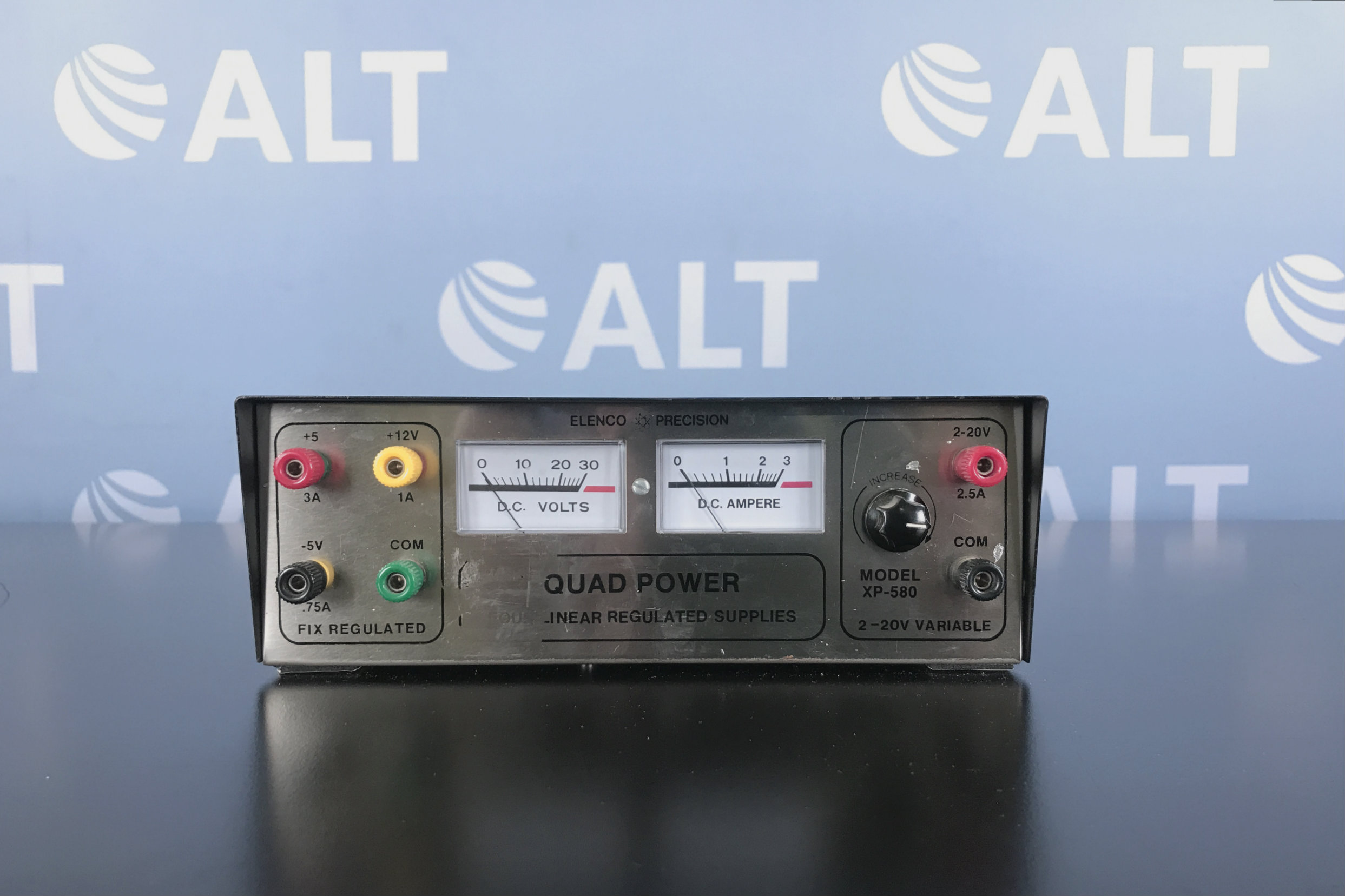

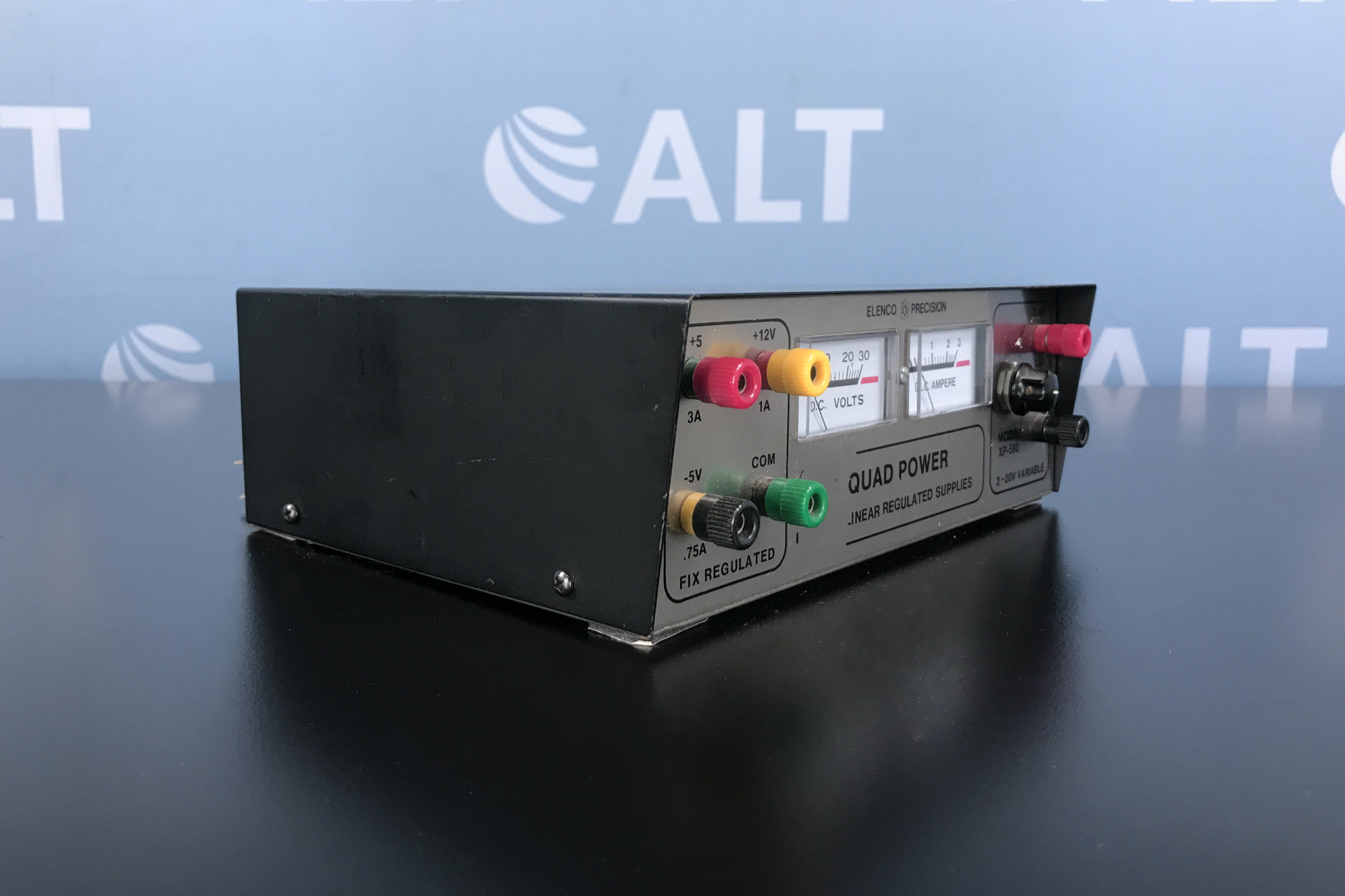

Elenco Precision XP-580 Solid-State DC Power Supply

The Elenco Precision XP-580 Solid-State DC Power Supply is a solid state DC power supply which contains four fully regulated power supplies. The three fixed voltage supplies are 12 VDC at 1A, 5 VDC at 3A and -5V at .5A. A variable voltage delivers 2-18 V at up to 2.5A. A special regulating circuit holds all four supplies to precisely the desired output voltage. They are protected from overload by a current foldback circuit. This circuit is designed to protect the power supply against shorts or excessive current demand. It also protects the equipment from possible damage due to high surge currents. This supply is ideal for use in school labs, service shops, or anywhere a precise DC voltage is required. Input voltage is 120 VAC.

Features:
– (4) Fully Regulated Power Supplies
– (3) Fixed Voltage Supplies
– Overload Protection

Specifications:
                                      Fixed Fixed Fixed Variable
– Output Voltage (+-10%) +5V -5V +12V +2 to 18V
– Output Current 3A .5A 1A 2.5A@15V
– Output Regulation .05V .05V .05V .4V
– Line Regulation .05V .05V .05V .05V
– Ripple Max RMS .005V .005V .005V .005V
– Short Protection Yes Yes Yes Yes
