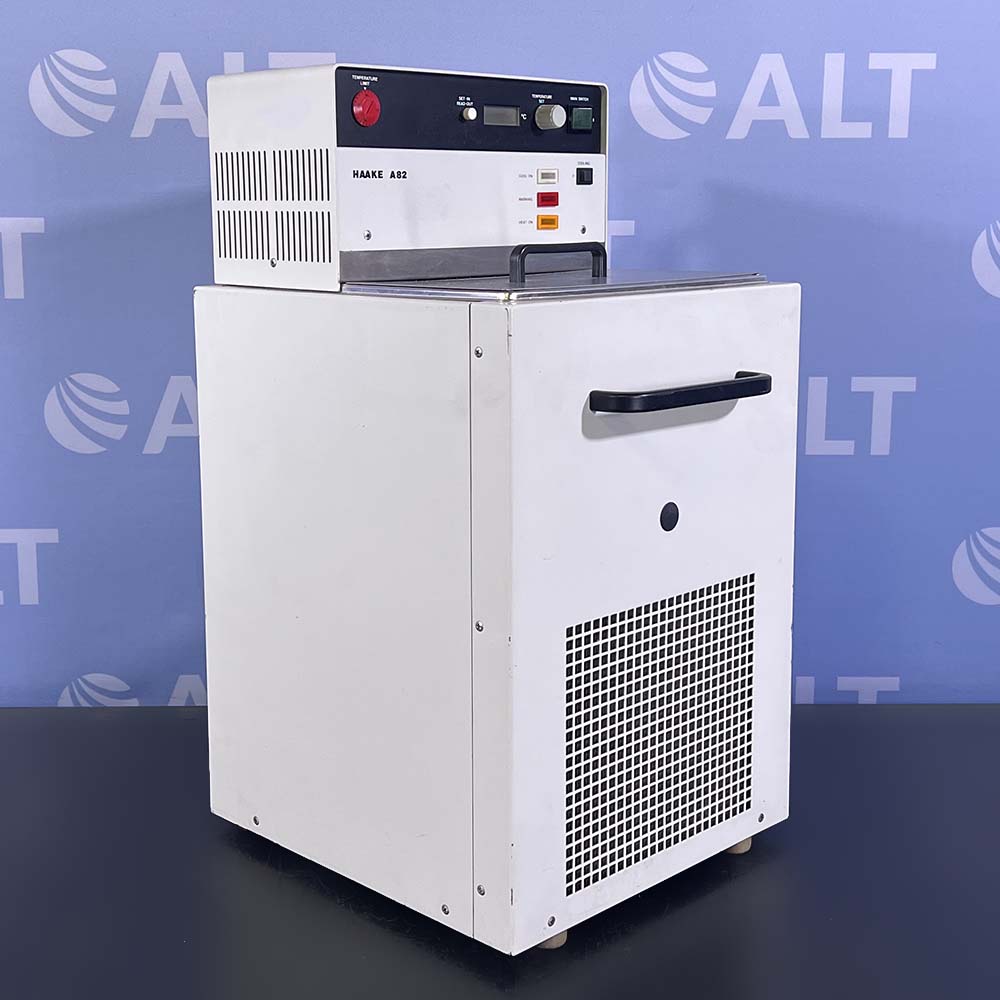

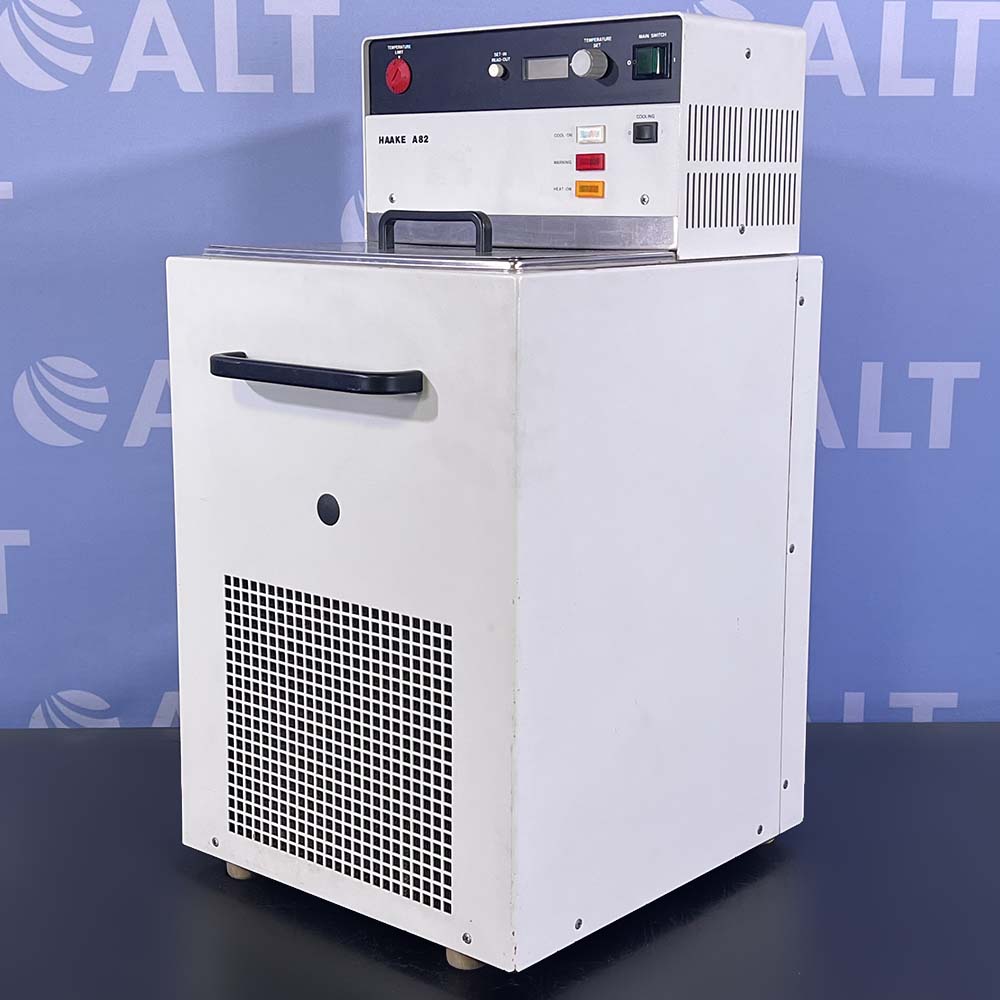

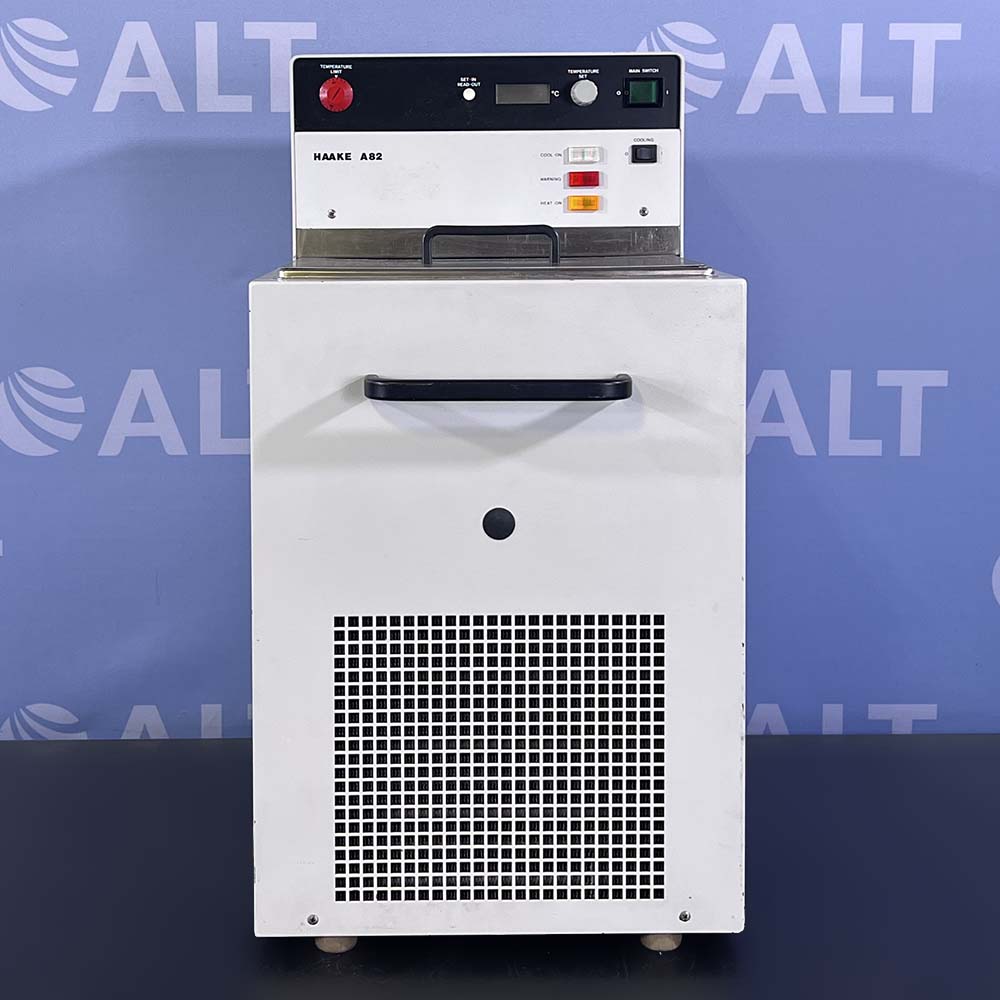

Haake Circulating Water Bath, Model A82

The Haake Circulating Water Bath, Model A82 is a refrigerated bath and circulator with a built-in compressor cooling system which allows heating or cooling to constant temperatures in two modes of application. The Haake Circulating Water Bath, Model A82 operates at bath temperatures below 30°C with controlled heating against constant cooling.

The Haake Circulating Water Bath, Model A82 features an electronic temperature control which automatically matches the heating energy to the bath proportionally to the heating requirement at any time. This gives simple operation combined with very good temperature control stability of the bath, even when the heating requirements vary during long periods of operation.

Specifications:

Working temperature range: -40°C to 150°C
Heater wattage: 1000 W
Cooling capacity at 20°C: 500 W
Cooling capacity at -10°C: 125 W
Pressure pumpMax. pressure: 450 mbar
Max. flow rate (1/min):25
Switching temperature of T: 20°C to 160°C
Bath depth: 7.87 inches (20 cm)
Filling capacity: 15 to 18 liters
Net weight: 77.16 (35 kg)
