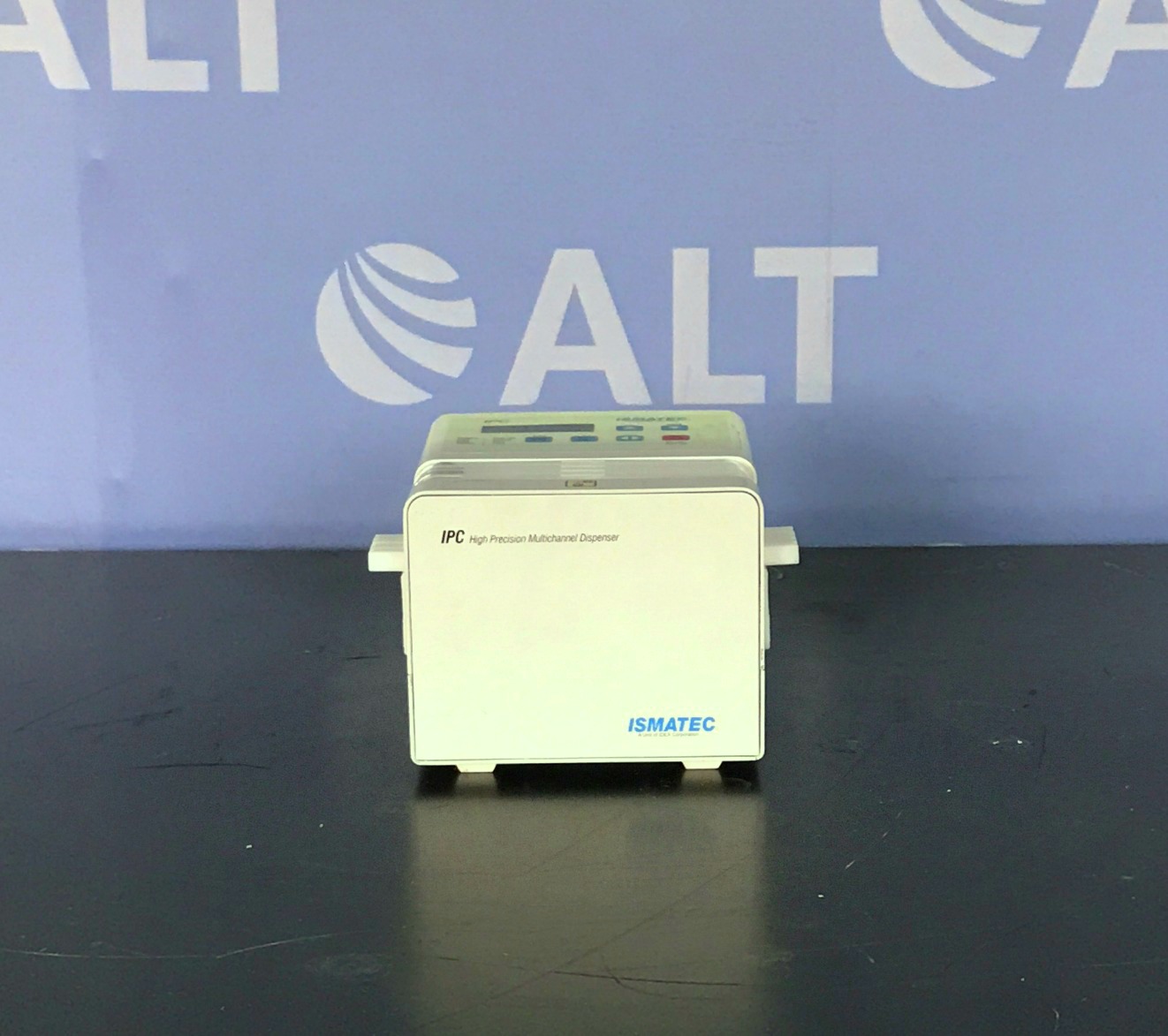

ISMATEC IPC High Precision Multichannel Dispenser 4-Channel ISM935C

Ismatec multichannel programmable pumps feature planetary gears that drive eight stainless steel rollers in unison for smooth rotation and accurate liquid flow. The four-digit LED display shows flow rate or rpm when pump is running. Use the MAX button to instantly increase speed for priming or flushing without disturbing your programmed settings.

Combine tubing sizes and formulations to suit your application. Click’n’go™ cartridges feature automatic occlusion for simplified use, fewer tubing changes, and reproducible results. Adjustable occulsion cartridges are available separately. Install cartridges in one direction for low pulsation; in opposite direction for higher counter pressure.

Ideal for continuous pumping or for dispensing in any of five modes:

• Flow rate: 0.0004 to 44 mL/min (depending on tubing size used and model used)
• By time: 0.1 seconds to 999.9 hours
• Batches: set delay between dispensed volumes
• Drip-free: program back-steps to prevent drips
• Volume displays in mL or µL

Specifications & Description:

• Series: IPC
• Control Type: Variable-Speed Digital
• Min RPM: 0.11
• Max RPM: 11.25
• Number of Channels: 4
• Max Flow Rate (mL/min): 11
• Max Flow Rate Per Channel (mL/min): 11
• Tubing: 2-Stop Tubing
• Accuracy: better than ±1%
• Duty Cycle: Continuous
• Max Pressure (bar): 1.5
• Power (VAC): 115
• Max Pressure (PSI): 22
• Number of Rollers: 8
• Power (Hz): 50/60
• Width (in): 6
• Height (in): 5
• Length (in): 7
• Remote Inputs: 0 to 5 VDC, 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA
• Description: IPC-N Low-Speed Digital Peristaltic Pump; 4-Channel
